Description

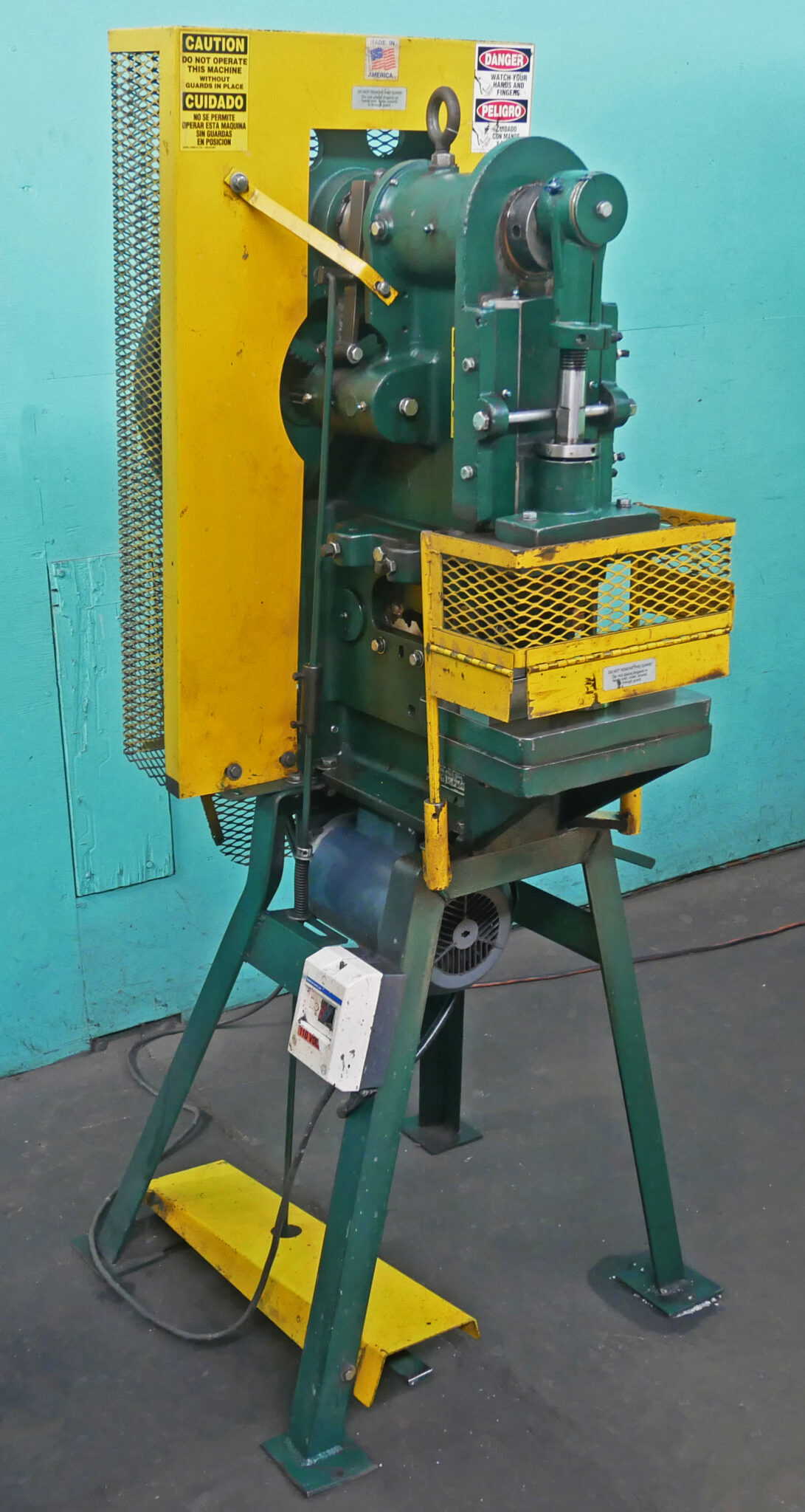

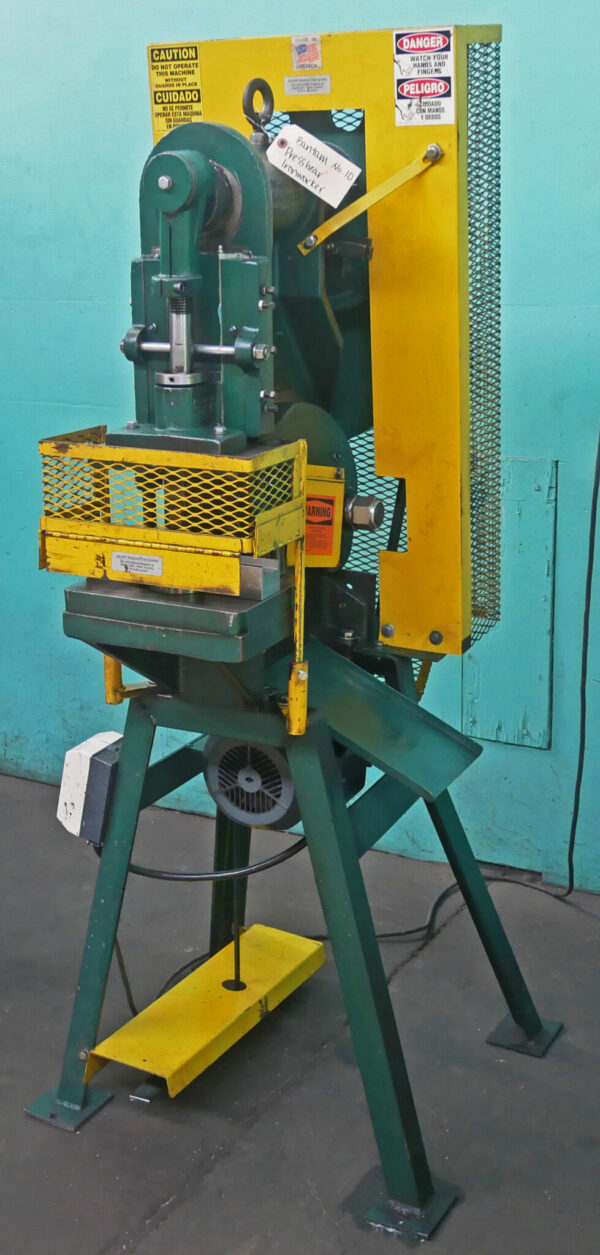

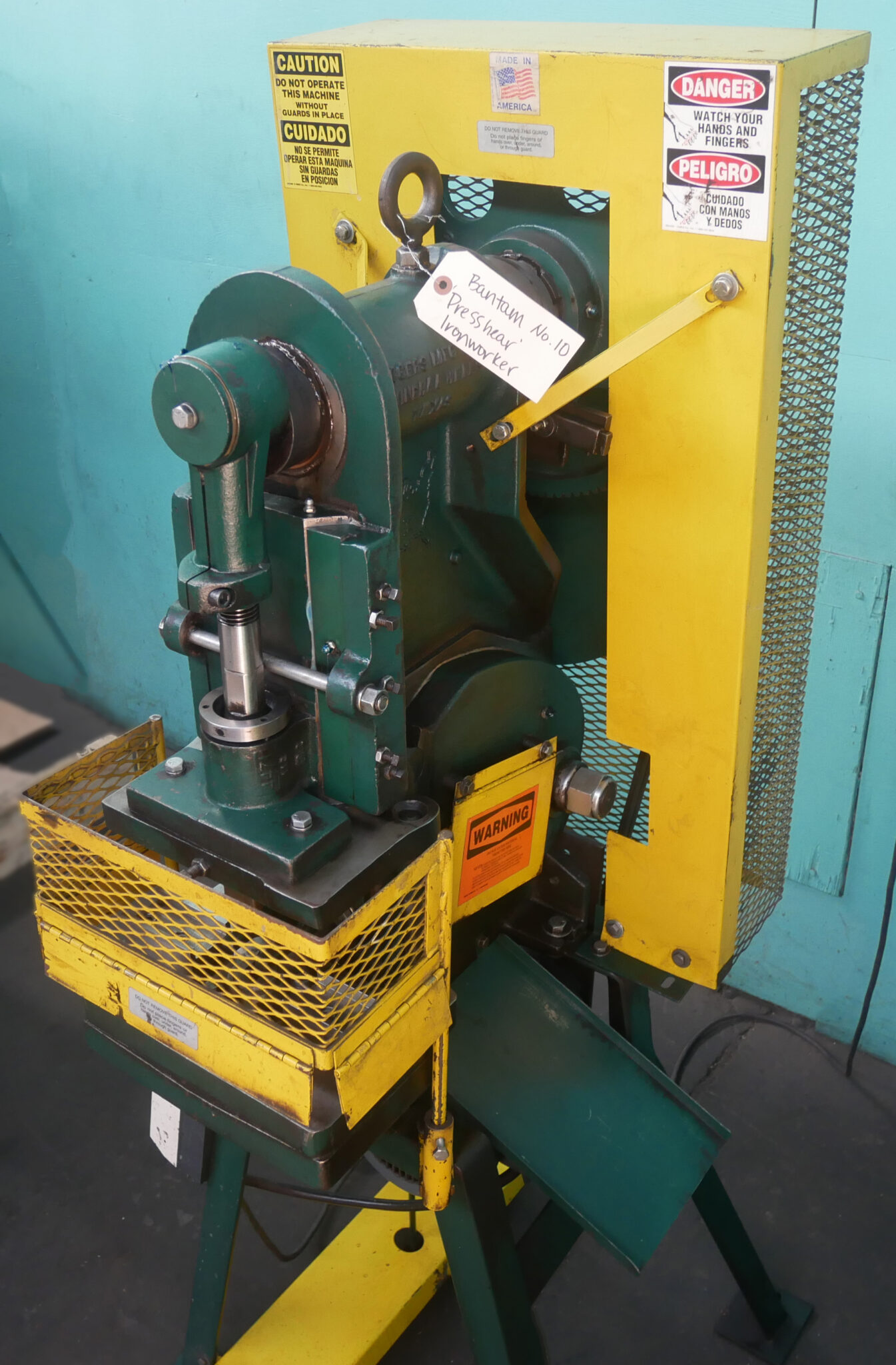

Rogers 18 Ton Power Ironworker, Presshear No. 10
Inventory # 9724
Model: Presshear No. 10
S/N: R10445
Made in USA
Specifications:
Punch Capacity: 18 US Tons
Stroke: 2″
Shut Height: 6 1/2″
Floor to Shear Blade: 39″
Angles: 2″ x 2″ x 1/4″
Rounds: 3/4″
Squares: 3/4″
Flats: 1/4″ x 4″
Channel: 2″ x 1/2″ x 1/8″
Punch: 7/8″, Round Hole Thru 1/4″ Material
Motor: 1 HP / 115v / 1ph
Standard Features & Equipment Included:

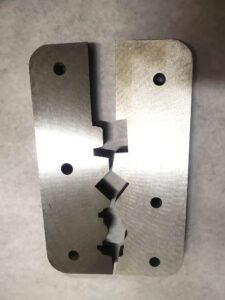

Shear station includes blade set G:
9/16″ Square Punch and Die
This machine is both a punch and a shear
Cast-frame – High tensile ductile iron
Foot-operated, one-stroke safety clutch
Front is a conventional press and can be used for punching or forming
Regular die sets will fit this machine
Adjustable ram
Hold-down easily adjustable
Punch can be lowered to material for center punching and will remain until clutch is engaged
Blades are tool steel and can be re-sharpened and adjusted
Punch to back of throat – 3″
Bar hole for lowering punch by hand
Blade guard, foot lever guard, and gear guard for operator’s protection
Approximately 48 strokes per minute
Misc. Manuals
Mechanical Specifications:
Dimensions: 34″ x 20″ x 66″ H
Shipping Weight: approx. 900 lbs.
New Replacement Cost: $8,000.00 + cost of blades
FOB Our Baltimore, MD Warehouse
