Description

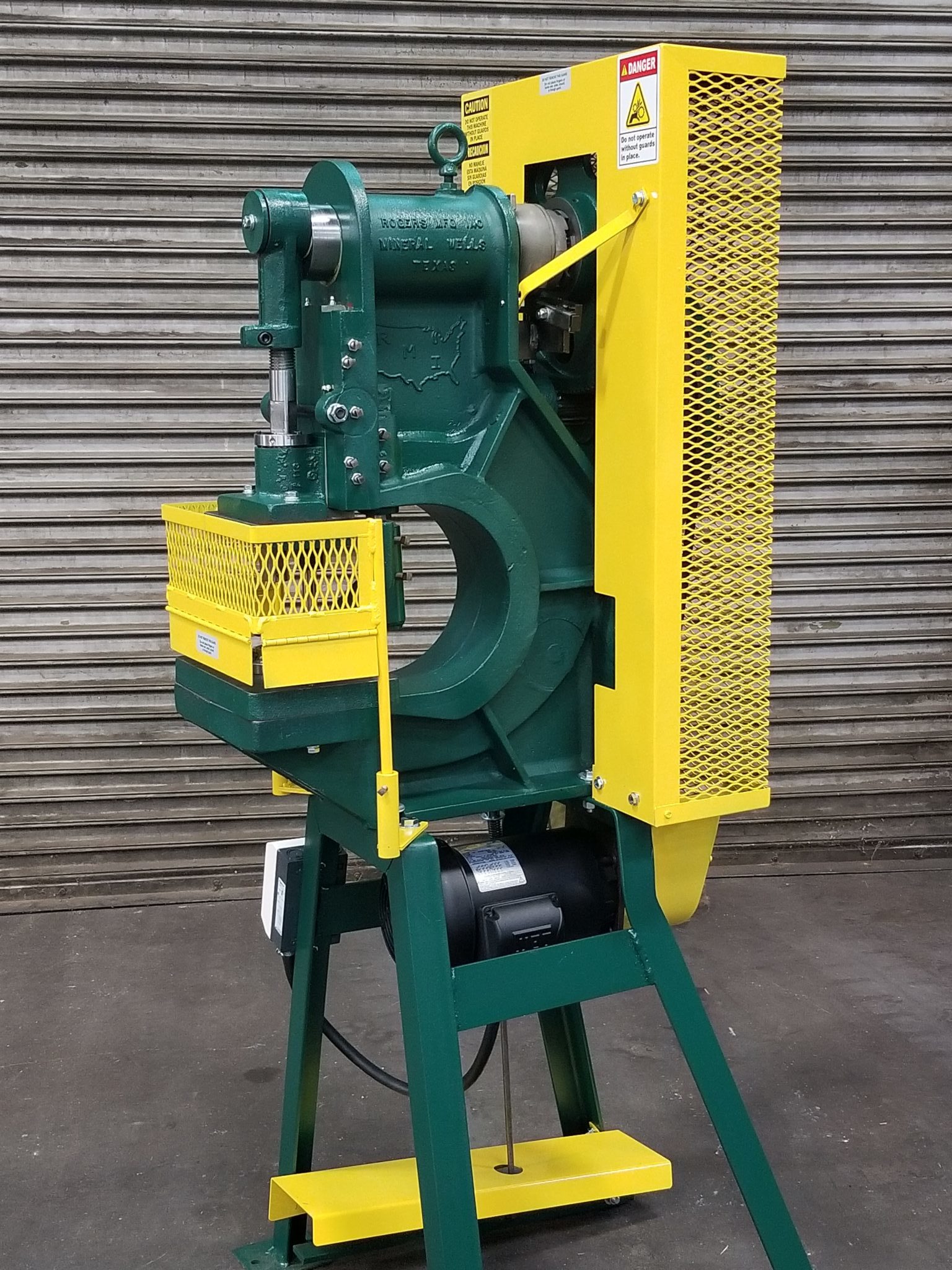

Rogers 15 Ton Punch Press, Press # 20
Inventory # 8231
Model: Press # 20
Made in USA
Specifications:
Punch Capacity: 15 Tons
Throat Depth: 10″
Punch: 3/4″ Round Hole Thru 1/4″ Material
Stroke: 2″
Shut Height: 6 1/2″
Standard Features:
Cast frame – high tensile ductile iron
Operates on 1 HP, 1,735 RPM motor. Three phase or single phase available
Foot operated, one stroke safety clutch
Punching and forming can be done
Punch can be lowered to material for center punching and will remain until clutch is engaged
Bar hole for lowering punch by hand
Comes equipped with guards for operators protection
Approximately 48 strokes per minute
Mechanical Specifications:
Dimensions: 39″ x 27″ x 66″ H
Shipping Weight: approx. 900 lbs.
FOB Factory – Contact us for Pricing and Availability
