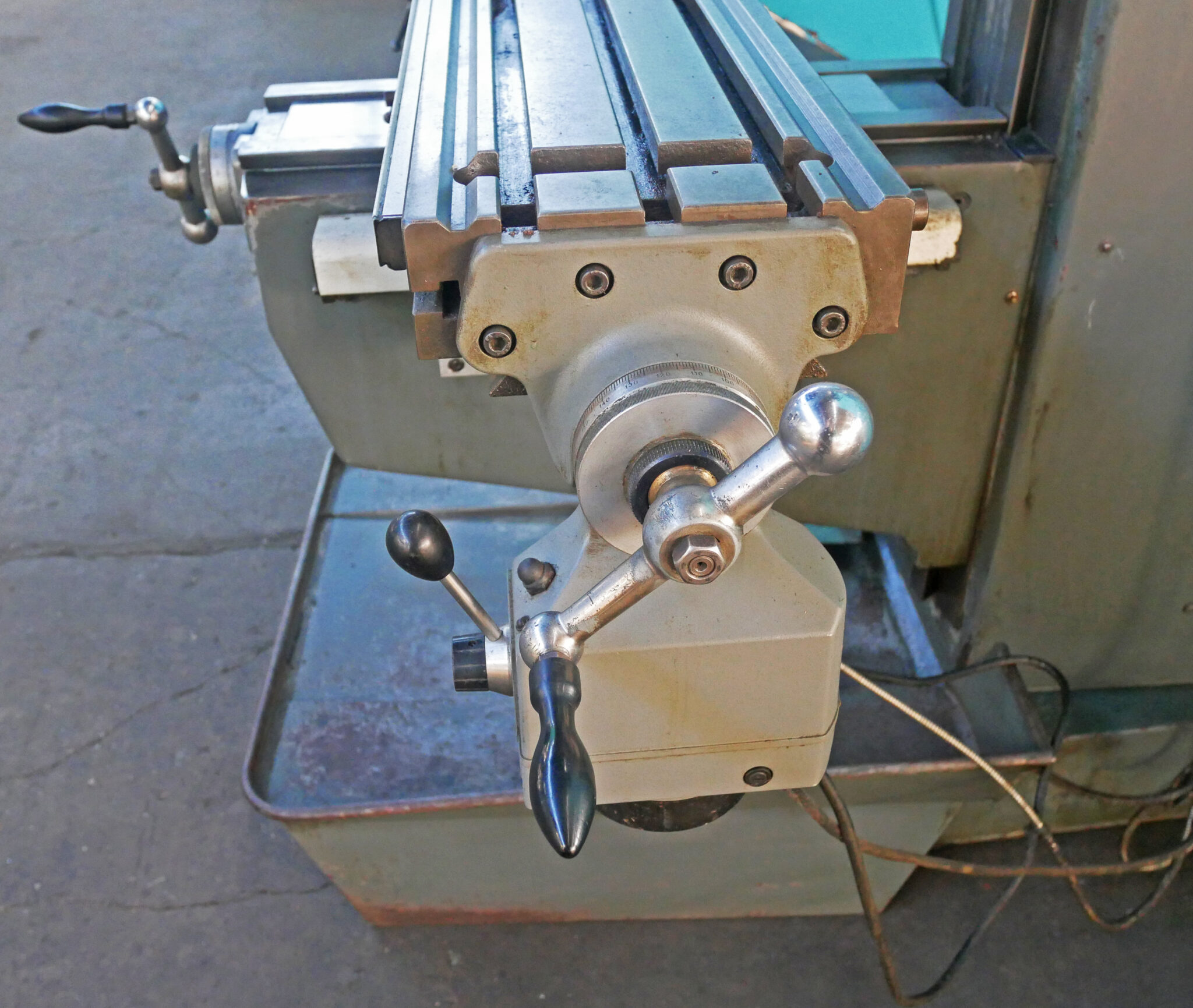

Republic Lagun 9″ x 48″ Vertical Milling Machine with Digital Readout, FTV-2
Inventory # 9748
Model: FTV-2
Specifications:
Table Size: 9″ x 48″
Max. Weight of Workpiece: 441 lbs.
X-Axis: 34.62″
Y-Axis: 16″
W-Axis: 16″ (Vertical Knee)
Z-Axis: 5″
Distance from Spindle Center to Column: 5″ – 27″
Ram Adjustment: 22 3/16″ Manual
Head Swivel: +/- 90°, Left to Right
Head Tilt: +/- 45°, Left to Right
Spindle Taper: R-8
Power Quill Feed: 0.0015, 0.003, 0.006 IPR
Quill Diameter: 3.37″
Motor: 3 HP / 230v, 460v / 3ph
Equipment Included:
Servo Type 140 PF Digital Readout
Power Draw Bar
Kurt 6″ Swivel Base Vise
Mechanical Specifications:
Dimensions: 57″ x 65″ x 83″ H
Weight: approx. 2,425 lbs.
FOB Our Baltimore, MD Warehouse
