Description

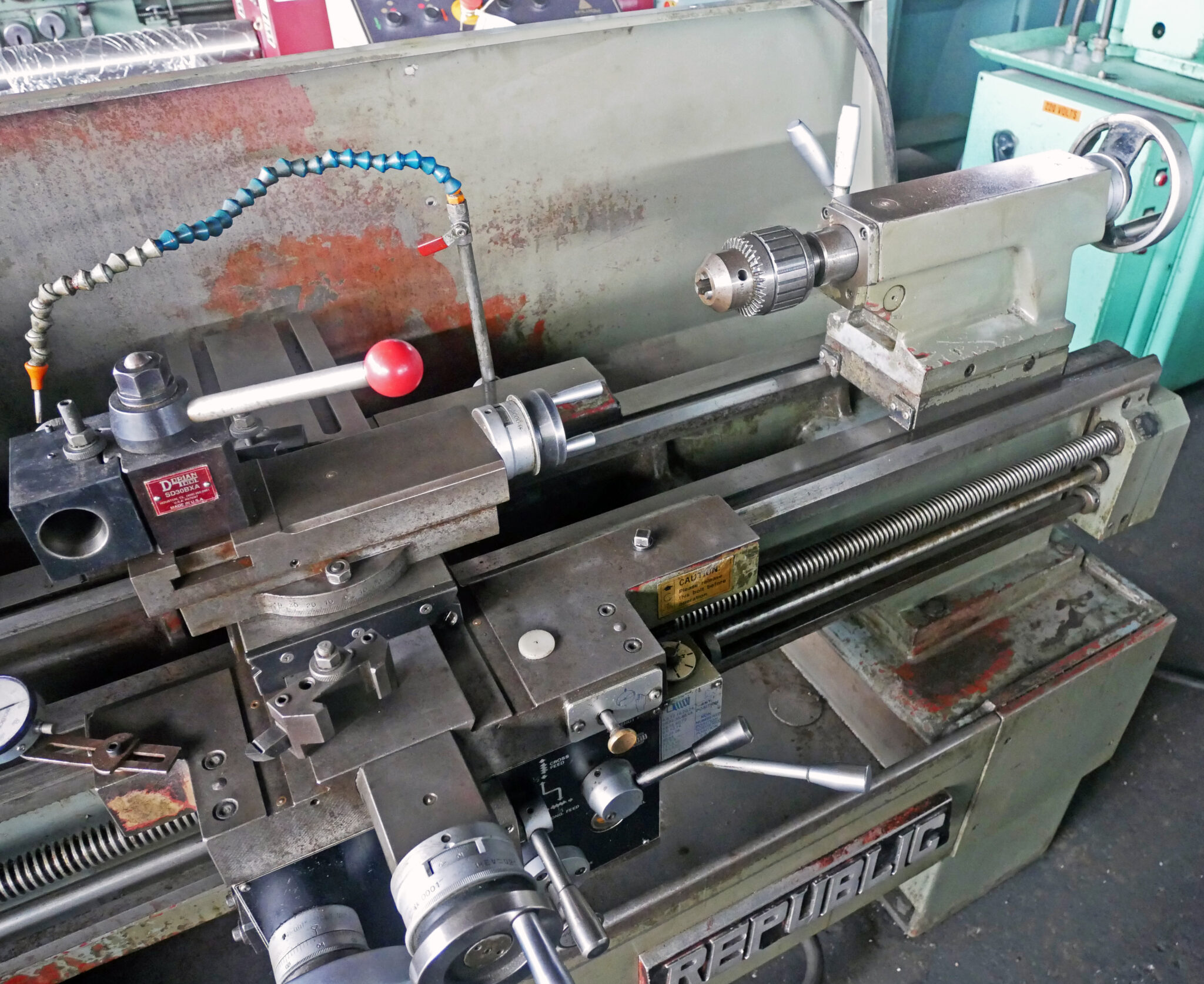

Republic Lagun 14″ x 40″ High Speed Precision Gap Bed Lathe, RL-1440-TW-EVS-A
Inventory # 9754
Model: RL-1440-TW-EVS-A
S/N: 14486040305
Built in the USA
Specifications:
Swing Over Bed: 14 3/16″
Swing in Gap: 23″
Swing Over Cross Slide: 8 3/8″
Distance Between Centers: 40″
Spindle Bore: 2.066″
Spindle Nose: D1-6 Camlock
Spindle Speeds:
Low Range: 20 – 400 RPM
High Range: 400 – 2,500 RPM
Standard Threads: (45) 2 -72 TPI
Metric Threads: (39) 0.2 – 14
Longitudinal Feeds: 0.002 – 0.067″
Bed Width: 10 1/4″
Cross Slide Travel: 8 11/16″
Tailstock Quill Diameter: 2 1/2″
Tailstock Travel: 6 1/2″
Tailstock Taper: #4 MT
Motor and Inverter Drive: 5 HP / 220v / 3ph
Equipment Included:
Yuasa 10″ 4-Jaw Chuck
8″ 3-Jaw Chuck
Mechanical Specifications:
Dimensions: 89″ x 41″ x 69″ H
Weight: approx. 3,850 lbs.
FOB Our Baltimore, MD Warehouse
