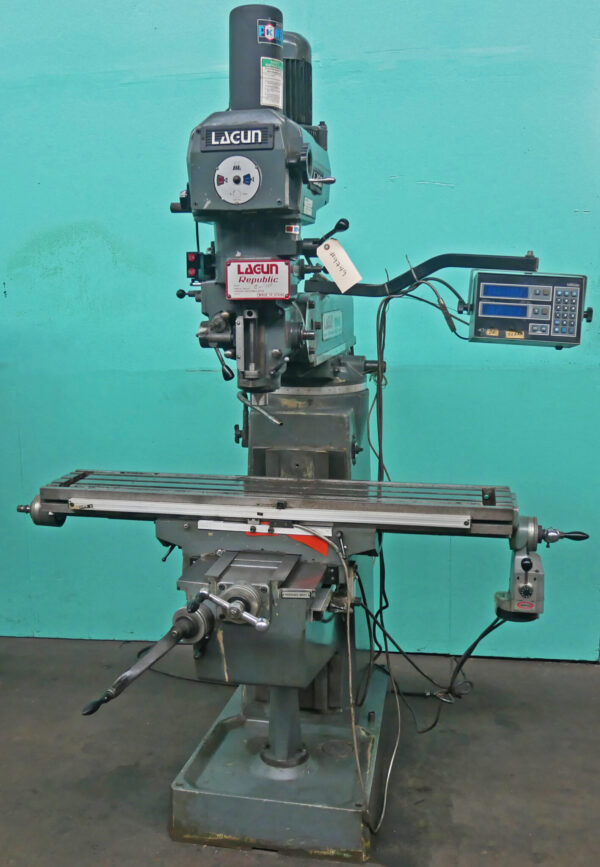

Republic Lagun 10″ x 52″ Vertical Milling Machine with Digital Readout, FTV-2S

Shipping: Add to Cart to Calculate

In stock

SKU: #9749 - Republic Lagun FTV-2S Mill

Inventory #: 9749

Categories: ,

Condition:

Type:

Brand:

Description

Republic Lagun 10″ x 52″ Vertical Milling Machine with Digital Readout, FTV-2S

Inventory # 9749

Model: FTV-2S

Specifications:

Table Size: 10″ x 52″

Max. Weight on Table: 750 lbs.

Table Travels:

X-Axis: 37.99″ (34.64″ with Power Feed)

Y-Axis: 15.98″

Z-Axis: 15.98″

Ram Travel: 22.44″

Speed: 55 – 4,250 RPM

Head Swivel: +/- 90° (Left to Right)

Head Tilt: +/- 45° (Left to Right)

Spindle to Column Distance: 5 – 26.96″

Spindle to Table Distance: 0 – 17.99″

Power Quill Feeds: 0.0015, 0.00314, 0.00511″ /Rev.

Spindle Taper: R-8

Quill Diameter: 3.38″

Quill Travel: 5″

Motor: 3 HP / 230v, 460v / 3ph

Equipment Included:

Acu-Rite 2-Axis Digital Readout

Servo Type 140 PF Power Draw Bar

Kurt 6″ Vise

Mechanical Specifications:

Dimensions: 57″ x 65″ x 83″ H

Weight: approx. 2,425 lbs.

FOB Our Baltimore, MD Warehouse

Additional information

Weight 2650 lbs
