Description

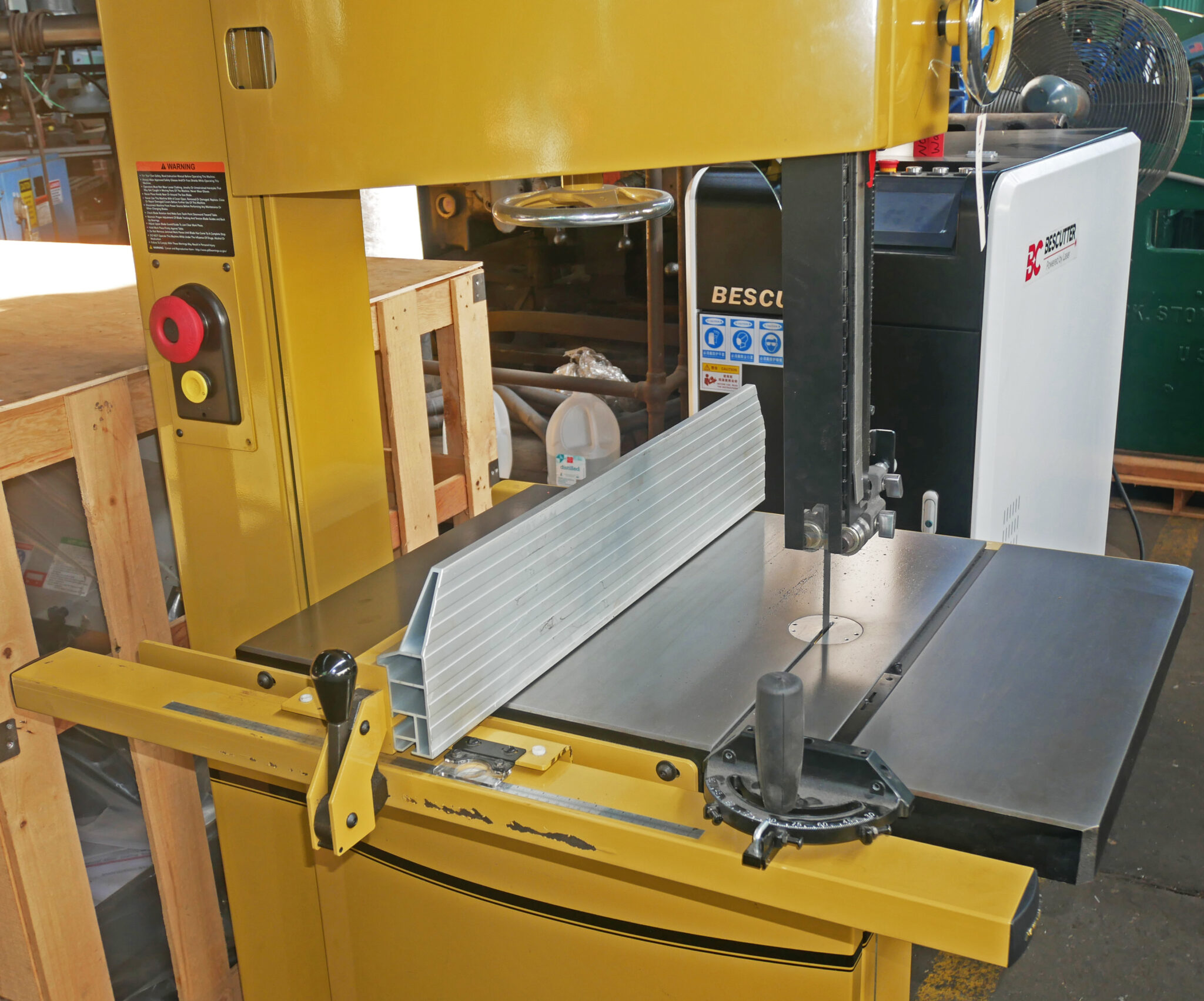

Powermatic 24″ Vertical Band Saw, PM2415B
Inventory # 9801
Model: PM2415B
S/N: 21070043 – Used, Like New
Click Here to View the Powermatic PM2415B Manual
Specifications:
Cutting Capacity:
Max. Cutting Height: 15″
Throat Capacity: 24″
Blade Speed: 2,500 / 4,800 SFPM
Blade Size: 183″ x 1/4″ x .035″
Wheel Diameter: 24″
Dust Port Outside Diameter: Two @ 4″
Dust Collection Min. CFM Required: 600 CFM
Table Dimensions: 24″ x 34″ x 2″
Table Tilt: 45° Right / 10° Left
Table Height from Floor: 35″
Table T-Slot: 3/4″
Motor: 5 HP / 230v / 1ph
Standard Features:
Blade tension release with electrical interlock prevents the band saw from starting when the blade is de-tensioned
Exclusive Powermatic T-square style Accu-Fence maximizes accuracy and safety
Heavy-duty upper wheel support and tracking mechanism for smooth operation
High-end blade guides with toolless adjustment provide stability, increasing cut accuracy
Oversized side plate can be used in the horizontal or vertical position
Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
Spacious, heavy-duty cast iron table with more room in the front of the blade
Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
Accu-Fence has complete adjustability for aligning to blade and squaring to table
Mechanical Specifications:
Dimensions: 47″ x 42″ x 81 1/2″ H
Weight: approx. 975 lbs.
New Replacement Cost: $7,900.00
FOB Our Baltimore, MD Warehouse
