PMI 36″ Non-Ferrous Up-Cut Cold Saw, PMI-20 36
Inventory # 7889
Model: PMI-20 36
Description:
The PMI precision cut-off saws are designed to saw aluminum profiles quickly and accurately with a burr free mirror finish. The PMI-20 36 has many outstanding features that allow maximum productivity and also providing a safe work environment. The saw blade is mounted on a turntable to set up any miter cut in seconds, without moving the work piece to be cut
Specifications:
Saw Blade Size: 36″
Saw Blade Speed: 1,200 RPM
Table Size: 59″ x 30 1/2″
Work Height: 48″
Motor: 10 HP
Standard Features:
Miter Capability: The PMI-20 36 type is equipped with a turn table that allows set up of any miter cut in seconds. A positive lock of the table is released and then built in handles allow for easy turning of the saw blade approach. Several positive stops via a locking pin allow for rapid and accurate set up of the angle to be cut. The work piece DOES NOT need to be moved from the 90° in feed direction
10 HP Saw Motor: This strong drive system via a 10 HP saw motor allows maximum cutting force and chip removal. The additional power extends the life of the saw blade between regrinds
Up-Cut Design and Saw Blade Chamber: The PMI-20 36 is an up-cut saw. The saw blade is housed under the work table and travels up through the work piece. This has several advantages such as, safety (less blade exposed during cut), chip removal and longer blade life
Precision Ground Work Table with Special Surface Coating: The work table is a ground surface and is coating with a special Chromate coating which prevents marring the outside of your work piece
Material Clamping: The pneumatic clamping system has adjustable clamping pressure to prevent distortion of thin wall profiles. The top clamp holds the work piece on both sides of the saw blade to deliver a burr free cut-off part. This clamp is controlled by its own cylinder and is adjustable according to the size of the work piece. The clamping speed is also adjustable
Saw Blade Feed: The saw blade feed is controlled via a hydraulic cylinder with full control of the feed rate. This allows for accurate cuts and long blade life. The hydraulic cutting allows the machine to cut solid material with precision. In addition, the saw blade travel is controlled for fastest cycle time
Precise Micro-Drip Blade Lubrication System: The blade is lubricated via a micro-drip system. A small amount of lubricant is introduced to an air line at the point of discharge for control and economical distribution of the saw lubricant
Safety Machine Enclosure: The work table is guarded via a machine enclosure that is monitored by a limit switch. The cover must be closed for the saw to cycle
Two Hand Cycle Start Activation: Dual start push button ensures the operator has both hands free of the machine
Safety Limit Switch: The blade access door is protected via a limit switch that will shut down the machine in case of an open door
Standard Equipment:
One Blade
Tool Box
Mechanical Specifications:
Dimensions: 69 1/2″ x 62 1/4″ x 99 1/4″ H
Weight: approx. 3,960 lbs.
Contact us for special pricing and availability
FOB Factory

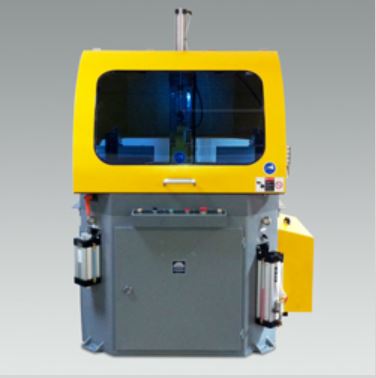

Please Note: Photo is of Model PMI-20 30 and May Differ Slightly from Actual Model
