PMI 20″ Non-Ferrous Miter Up-Cut Cold Saw, PMI-20

Shipping: Add to Cart to Calculate

SKU: PMI-20

Inventory #: 5046

Categories: , ,

Condition:

Type:

Brand:

Description

PMI 20″ Non-Ferrous Miter Up-Cut Cold Saw, PMI-20

Inventory # 5046

Model: PMI-20

Description:

Desgined to saw aluminum extrusions and profiles quickly and accurately with a burr free mirror finish. The features of these aluminum extrusion and non-ferrous saw allow maximum productivity and provide a safe work environment

Specifications:

Blade Size: 20″ x 1″ Bore

Blade Speed: 3,500 RPM

Table Size: 35 5/8″ x 35 5/8″

Work Height: 34″

Motor: 7.5 HP

Standard Features:

Upcut design and saw blade chamber

Precision-ground worktable with special surface coating

Pneumatic clamping system with adjustable clamping pressure to prevent distortion of thin walled aluminum extrusions

Saw blade feed controlled via pneumatic cylinder

Precise micro-drip blade lubrication system

Vertical and horizontal clamps

Kanefusa 120T saw blade

Tool kit

Operating manual

Miter Capability:

The PMI-20 is equipped with a turn table that allows the set up of any miter cut in seconds

A positive lock of the table is released and then built in handles allow for easy turning of the saw blade approach

Several positive stops via locking pin allow for rapid and accurate set up of the angle to be cut

The work price does not need to be moved from the 90° in feed direction

Mechanical Specifications:

Dimensions: 51″ x 44″ x 72″ H

Weight: approx. 1,275 lbs.

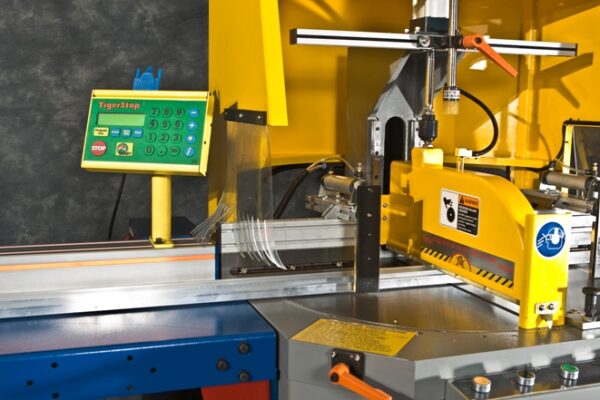

Please Note: Second Photo Shows the PMI-20 with the Optional Tigerstop System

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 1575 lbs
