Description

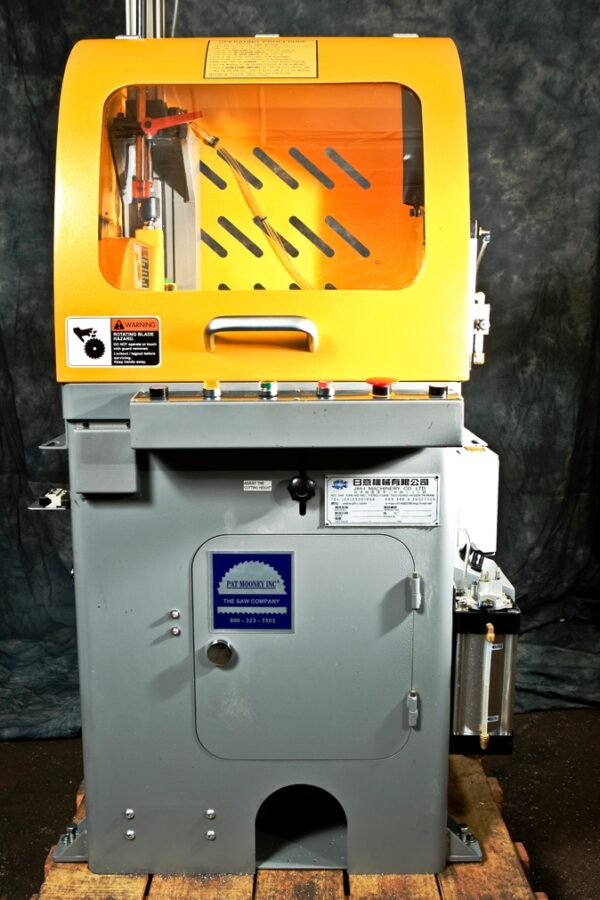

PMI 18″ Straight Non-Ferrous High Speed Up-Cut Cold Saw, PMI-18
Inventory # 5045
Model: PMI-18
Description:
Designed to saw aluminum extrusions and profiles quickly and accurately with a burr-free mirror finish. The features of these aluminum extrusion and non-ferrous saws allow maximim productivity and provide a safe work environment
Specifications:
Blade Size: 18″ x 1″ Bore
Blade Speed: 3,500 RPM
Table Size: 26 1/3″ x 26″
Work Height: 33 7/8″
Motor: 7 1/2 HP
Standard Features:
Upcut design and saw blade chamber
Precision-ground worktable with special surface coating
Pneumatic clamping system with adjustable clamping pressure to prevent distortion of thin walled aluminum extrusions
Saw blade feed controlled via pneumatic cylinder
Precise micro-drip blade lubrication system
Vertical and horizontal clamps
45° material stop for miter cut position
Kanefusa 120T saw blade
Tool kit
Operating manual
Mechanical Specifications:
Dimensions: 34″ x 35″ x 66″ H
Weight: approx. 770 lbs.
Contact us for special pricing and availability
FOB Factory
