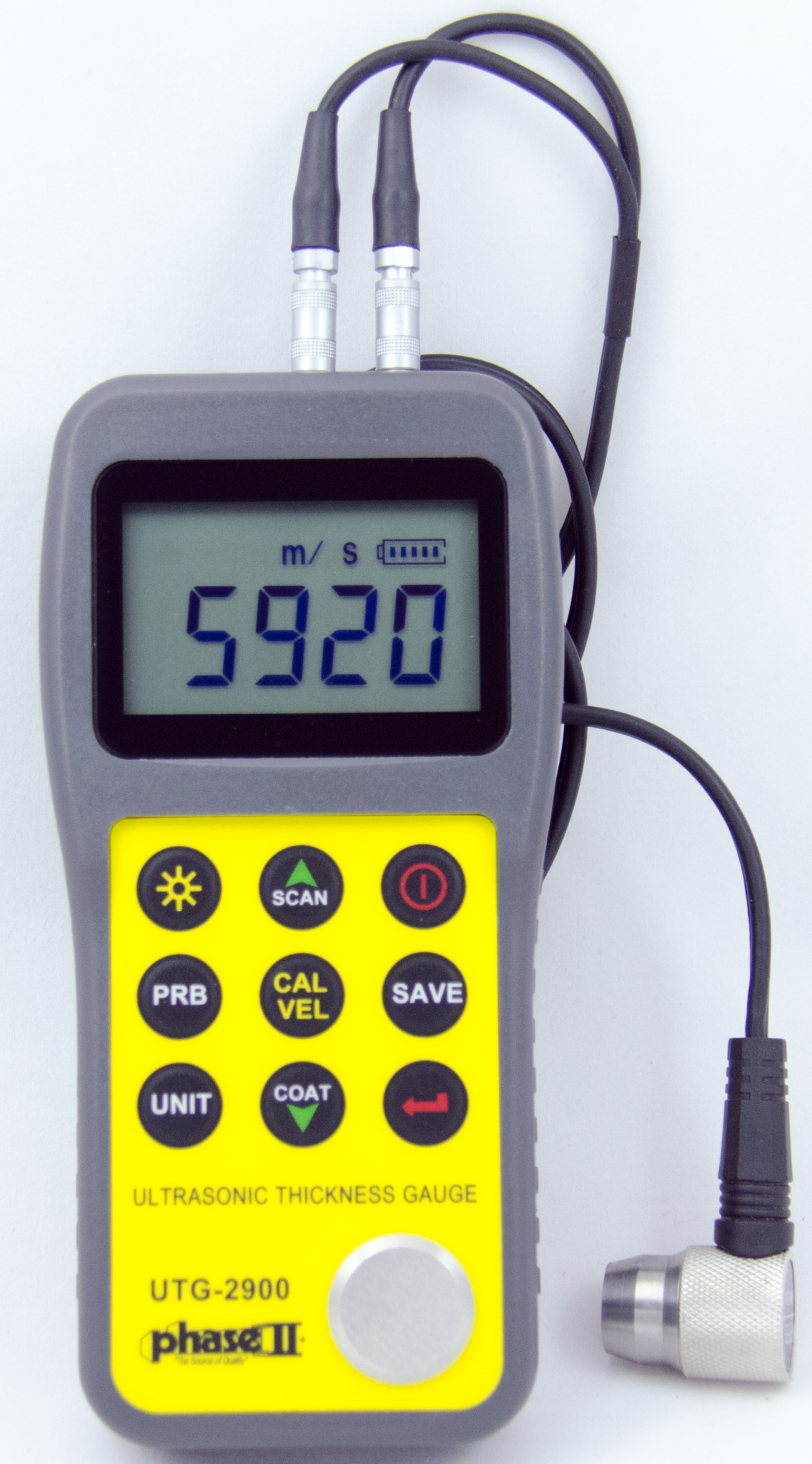

Phase II Ultrasonic Thickness Gauge with Thru Coat and Extended Measuring Range, UTG-2900
Inventory # 8725
Model: UTG-2900
Description:
Our new state-of-the-art, digital tester is packed with features typically found on high end models only. This multi-functional unit offers everything from basic measurement, thru coating capabilities, scanning capabilities, adjustable sound velocity, extended memory, and USB output capabilities
This dynamic sonic gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass, and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces
The UTG-2900 will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocty
Specifications:
Display Type: 4.5-Digit LCD with Back Light
Min. Display Unit: 0.001″ (Selectable)
Measuring Range:
Pulse-Echo: 0.025″ – 23″ (in Steel)
Echo-Echo: 0.118″ – 2.35″
Accuracy: +/- (0.5% Thickness plus .001″)
Upper/Lower Limit Preset Alarm: Yes
Scanning Feature: Yes, 16 Measurements per Second
Operating Temperature: 32° – 122° F
Frequency: 5 MHz
Update Range: 4 Hz
Memory: 20 Groups (100 Files/Group)
Output: USB
Battery Life: approx. 100 Hours (without Back Light)
Power Supply: (2) AA Alkaline Batteries
Mechanical Specifications:
Dimensions: 1″ x 3″ x 6″ H
Weight: approx. 8.6 oz.
Contact us for special pricing and availability
FOB Factory
