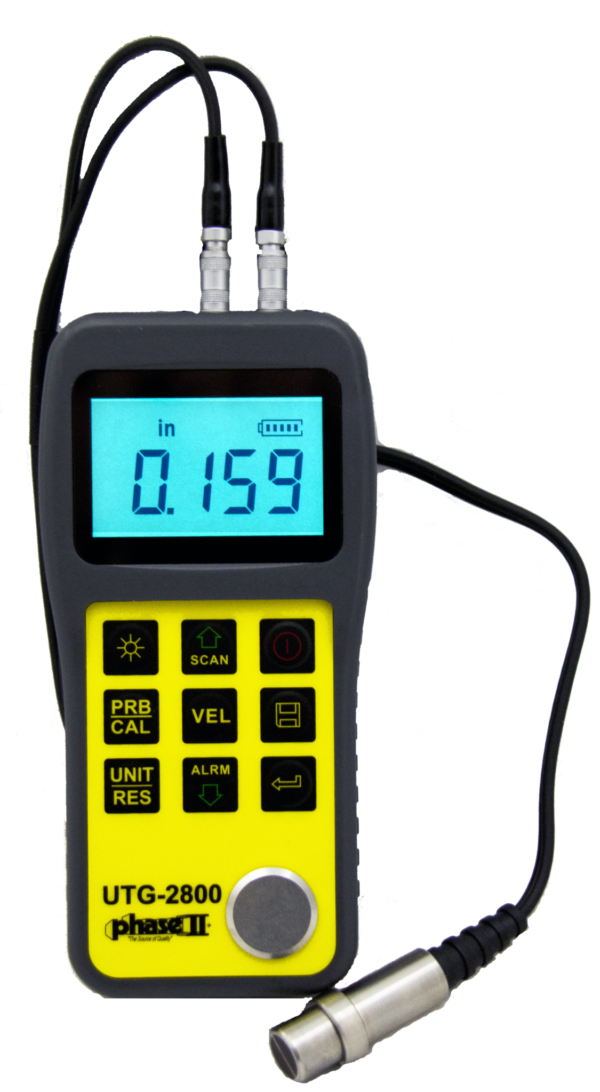

Phase II Ultrasonic Thickness Gauge with Scan Feature, UTG-2800

Shipping: UPS

In stock

SKU: UTG-2800

Inventory #: 8724

Category:

Condition:

Type:

Brand:

Description

Phase II Ultrasonic Thickness Gauge with Scan Feature, UTG-2800

Inventory # 8724

Model: UTG-2800

Description:

State-of-the-art, digital tester is packed with features typically found on high-end models only. This multi-functional unit offers everything from basic measurement, scanning capabilities, adjustable sound velocity, extended memory, and USB output capabilities

This dynamic sonic gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass, and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces

The UTG-2800 will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity

Specifications:

Display Type: 4-Digit LCD with Back Light

Min. Display Unit: 0.001″ (Selectable)

Measuring Range: 0.040″ – 12″ in Steel with Standard Probe

Accuracy: +/- (0.5% Thickness plus .001″)

Upper/Lower Limit Preset Alarm: Yes

Operating Temperature: 32° – 122° F

Frequency: 5 MHz

Update Range: 4 Hz

Memory: 20 Groups (100 Files/Group)

Output: USB

Power Supply: 3V (2) AA Alkaline Batteries

Mechanical Specifications:

Dimensions: 3″ x 1″ x 6″ H

Weight: approx. 8.6 oz.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 2 lbs
