Phase II Mini-Integrated Hardness Tester, PHT-3300

Shipping: UPS

In stock

SKU: PHT-3300

Inventory #: 8715

Category:

Condition:

Type:

Brand:

Description

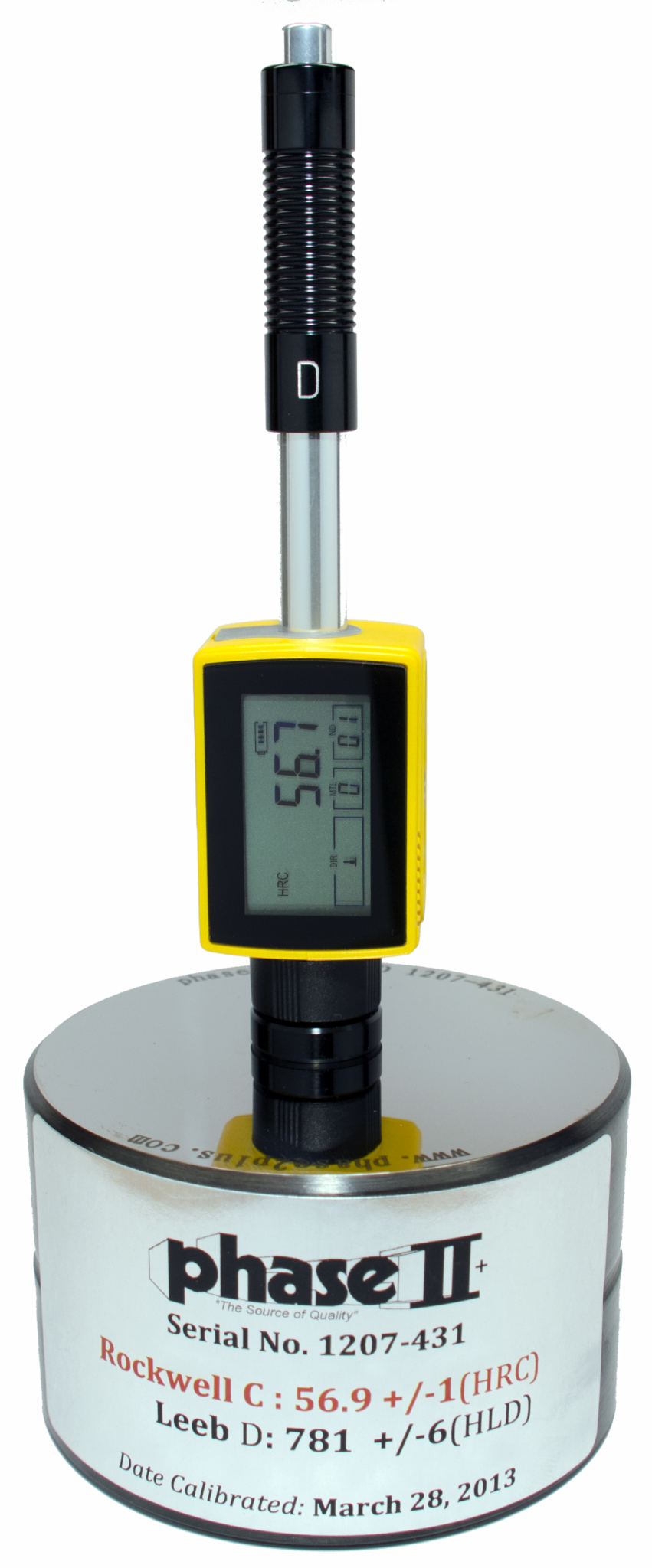

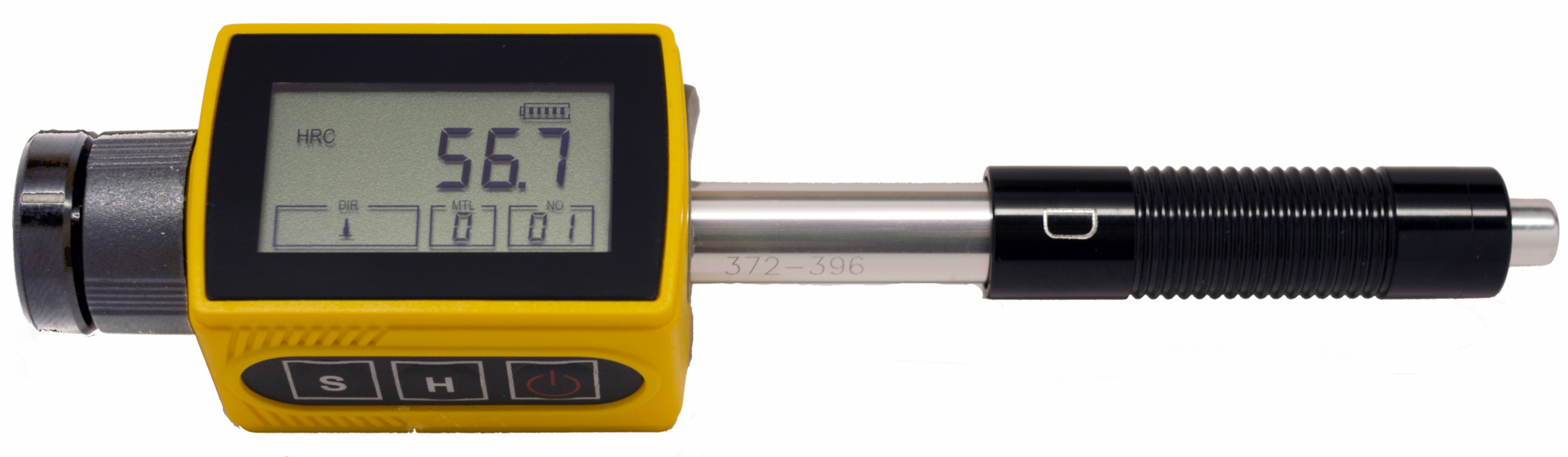

Phase II Mini-Integrated Hardness Tester, PHT-3300

Inventory # 8715

Model: PHT-3300

Description:

The Phase II hardness tester, PHT-3300 is an advanced integrated hardness tester distinguished by its very compact size, high accuracy, wide measuring range, and simplicity of operation. It is suitable for testing the hardness of all metals and widely applied in many areas of industry

The PHT-3300 as with all Leed hardness testers, is designed to test very large hard parts. Steel should be close to 1″ thick of solid material. Softer metals need even more mass. The PHT-300 hardness tester combines the universal impact device D and a data processor in a single unit. It automatically computes all Vickers, Brinell, Rockwell, and Shore hardness values

USB output enables this new model to print any of it’s memory from up to 500 groups. The impact direction can be set so that the accurate values can be achieved at any angle, even upside down! Statistical mean value is automatically provided. The measuring method of the PHT-3300 is defined as “the quotient of the impact body’s rebound velocity over its impact velocity”

Specifications:

Impact Device: D/DL

Impact Energy: 8’/lbs.

Test Tip: Tungsten Carbide

Measuring Accuracy: +/- 8.0%

Max. Hardness of Sample: 980 HV

Impact Direction: Any Angle

Operating Temperature: 32° – 122° F

Min. Weight of Sample: 11 lbs.

Min. Radius of Curved Surface: 1.2″

Power Supply: 3.6V Lithium Rechargeable Battery

Mechanical Specifications:

Dimensions: 2″ x 1 1/2″ x 6″ H

Weight: approx. 11 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 15 lbs
