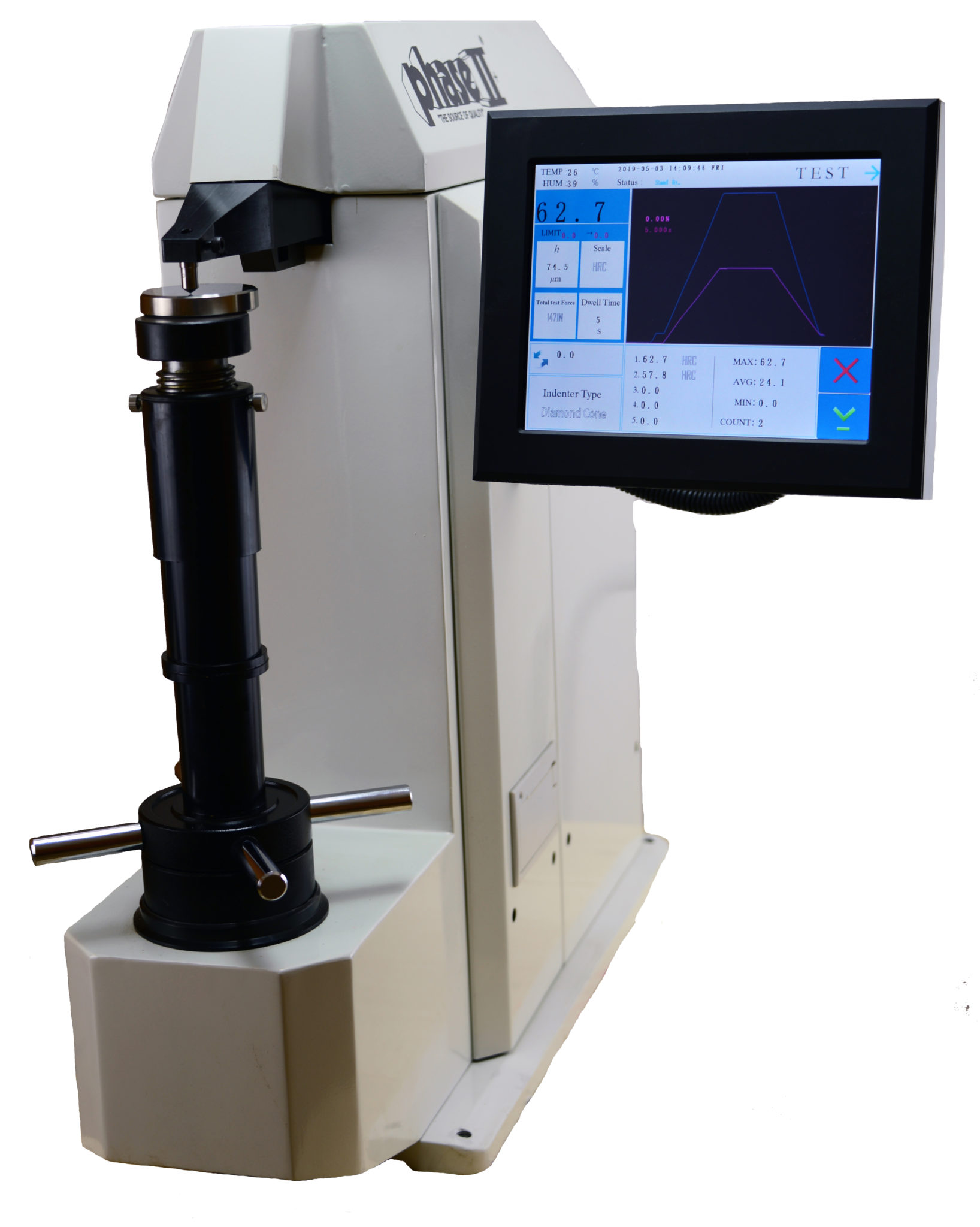

Phase II Digital Rockwell/Superficial Rockwell Hardness Tester, 900-387
Inventory # 8710
Model: 900-387
Description:
This Rockwell/Superficial Rockwell hardness tester with fully automated load/unload procedures affords highly sensitive and accurate readings. Micro computer controlled touch screen with USB output to PC
The 900-387 digital Rockwell hardness tester offers programmable scale conversions, dwell times, statistical capabilities, and test counter. Capable of testing in all of the regular Rockwell hardness scales
Specifications:
Minor Load: 3Kgf – 10Kgf
Major Load: 15Kgf, 30 Kgf, 45Kgf, 60Kgf, 100Kgf, 150Kgf
Test Force Application: Load Cell Closed Loop
Test Force Control: Motorized
Results Display: Hi-Def LCD Digital Read Out
Resolution: 0.01HR
Vertical Capacity: 7.8″
Throat Depth: 5.9″
Power Supply: 110v, 220v / 1ph
Standard Equipment:
C-Scale Diamond Indenter
1/16″ Ball Indenter
(2) HRC Test Blocks
(1) HRB Test Block
(1) HRN Test Block
5.87″ Test Table
2 1/2″ Flat Anvil
Standard Vee Anvil
Dust Cover
Accessory Case
Mechanical Specifications:
Dimensions: 10″ x 24″ x 27 1/2″ H
Weight: approx. 220 lbs.
Contact us for special pricing and availability
FOB Factory
