Description
Peddinghaus 30″ x 16″ CNC Three Spindle Beam Drilling Machine with Rush Drill Grinder
Inventory # 9738-B
Model: BDL-760/3A + 250A
S/N: 40680 + 2429 “2000”
Specifications:
Max. Beam Width: 30″
Max. Flange Height: 16″
Spindle Advance/Retract Speed: 20 FPM
Spindle Sensing: Automatic
Number of Drill Spindles: 3
Taper: MT #3
Spindle Traversing Speed: 33 FPM
Material Positioning Speed: 130 FPM
Max. Diameter: 1 1/4″
Max. Part Weight: approx. 13,228 lbs.
Motor: 460v / 3ph
Equipment Included:

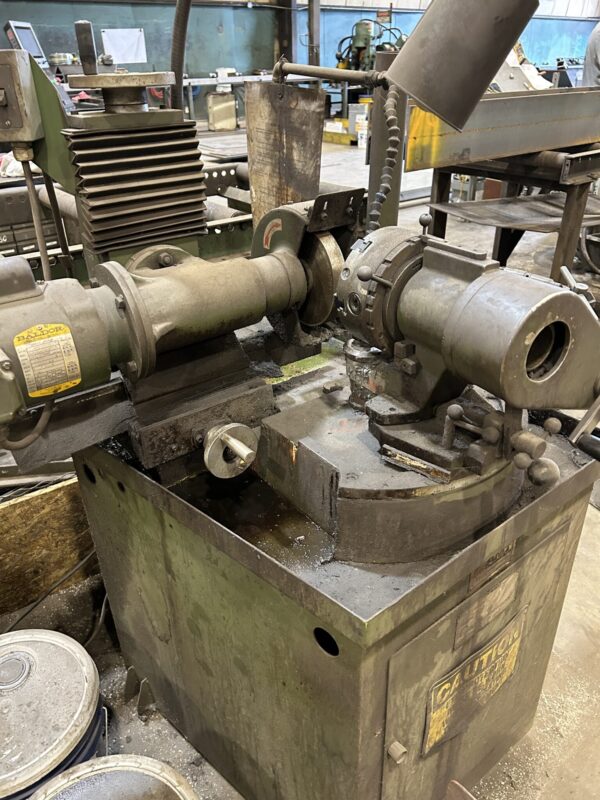

Rush Model 250A Drill Grinder
Signoscript Marking System
62′ Infeed Roller Table
43′ Outfeed Roller Table
CNC Fagor Controls
Mechanical Specifications:
Machine Footprint: approx. 156″ L x 72″ D
Weight: approx. 12,000 lbs.
FOB York, PA Facility
Please Note: This Machine is Being Brokered and is Being Sold As-Is, As-Inspected, with No Warranty and No Return Privilege
