Description

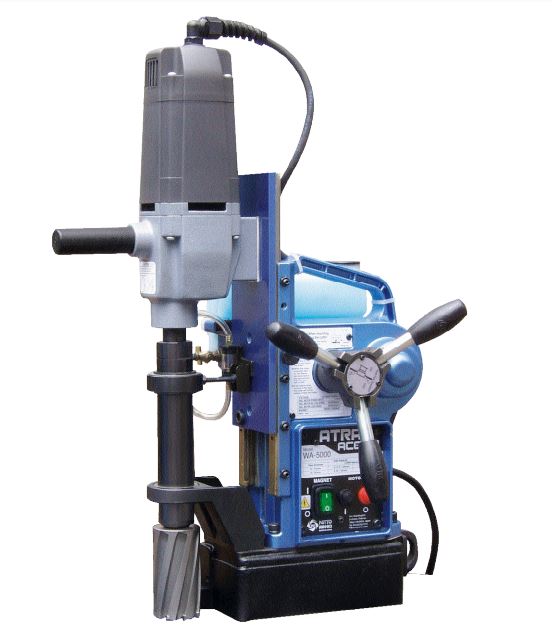

Nitto Kohki 2″ x 3″ Semi-Automatic Magnetic Drill, WA-5000
Inventory # 7879
Model: WA-5000
Specifications:
Capacity:
Hole Diameter: 2″ Max.
Depth of Cut: 3″ Max.
Magnet Holding Power: 2,200 lbs.
Magnet Dimensions: 4″ x 8″
Rated Power Consumption: 1,150
Rated Current: 10.8
No Load Speed: 350 / 650 RPM
Magnet Power Consumption: 75
Power Source: 110v, 120v / 1ph
Standard Features:
2″ x 3″ hole drilling capacity
Semi-automatic feed mechanism
Powerful 1100 watt double insulated motor
Overload stop detection system helps prevent motor and cutter damage
Load detection system monitors and regulates motor speed and cutting feed
Sealed arbor system through spindle coolant
Built-in motion detection sensor
One-touch arbor system (no tools required for cutter installation and removal)
Accepts Jetbroach carbide tipped and Hibroach HSS annular cutters
Precision machined die cast aluminum mainframe, motor slide and arbor support bracket
One year limited warranty
Standard Equipment:
2″ Pilot Pin
Safety Chain
Motor-Side Handle
3mm Allen Wrench
8 x 10mm Combination Wrench
Sample Cutting Fluid
Molded Plastic Carrying Case
Mechanical Specifications:
Weight: approx. 51 lbs.
FOB Factory – Contact us for Availability
