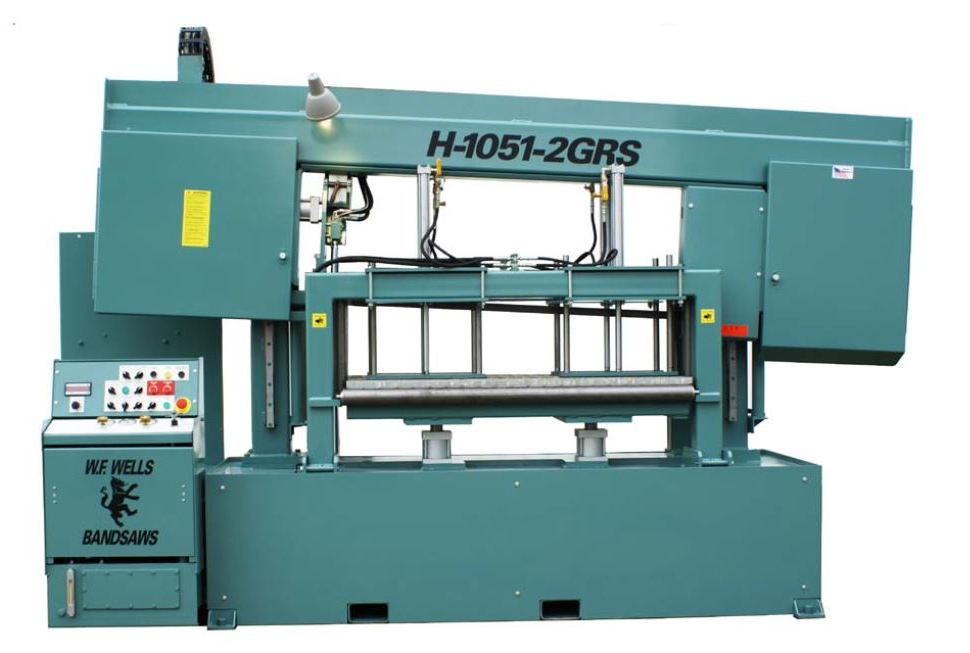

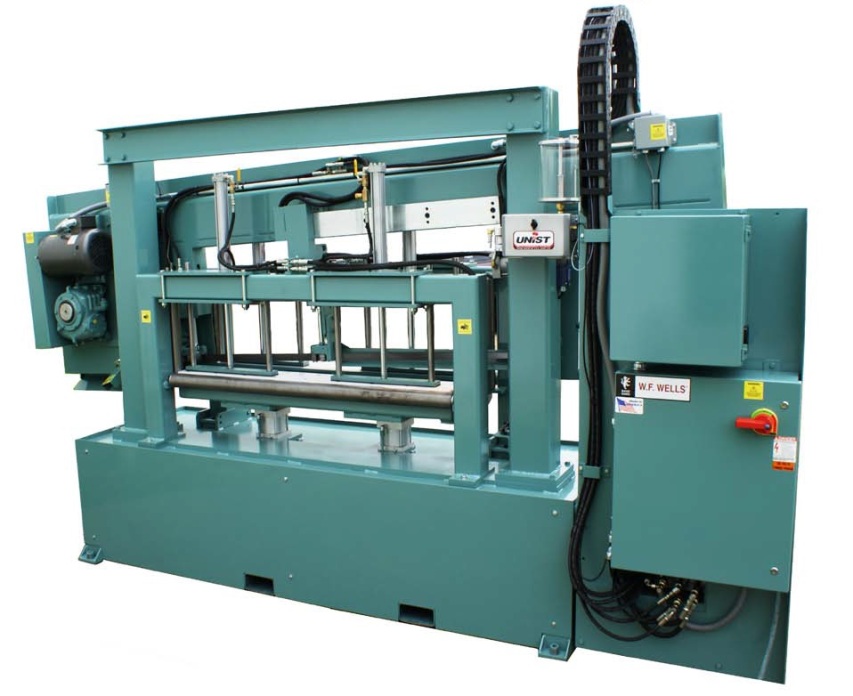

W.F. Wells 10″ x 51″ Grating/Panel Cutting Horizontal Band Saw, H-1051-2GRS
Inventory # 6465
Model: H-1051-2GRS
Made in USA
Description:
The model H-1051-2GRS is designed with operator convenience in mind, with all controls and adjustments in one convenient location in the front of the machine. All controls are conveniently identified for simple operation and minimal training
Saw vises are controlled by full stroke hydraulic cylinders for quick and easy set up. An emergency stop switch is located on the operator control station
Specifications:
Capacity:
Rectangular: 10″ x 51″, 3° Canted Frame
Weight Capacity: 5,000 lbs. with Bed in Full Upper Position
Blade Speed: 60 – 500 FPM
Blade Size: 267″ x 1 1/4″ x .042″ — with Easy Change Tilt Feature
Bandwheel Size: 20″
Sawing Force: 0 – 500 lbs.
Saw Bed: 35″ Work Height
Motor: 7.5 HP / 208v, 230v, 460v / 3ph
Standard Features:
Auto Cycle Sequence: Console controlled with auto cycle for increased production and less operator fatigue. This feature allows for complete cutting cycles using minimum operator input
Vises: Front and rear independent full stroke hydraulic variable pressure vertical vises (4 total) with replaceable GoodYear Arma Plate Surface which helps reduce noise and vibration. Vertical stationary datum rollers (4 total) located on each side of saw bed to ensure square cuts
Saw Bed: Ergonomic 35″ work height. Hydraulic saw bed raise/lower feature with 1″ travel and replaceable UHMW wear surfaces which helps reduce noise and vibration. Horizontal stationary infeed and outfeed rollers to guide material smoothly into the machine
Blade Change: Easy blade change tilt feature incorporated into front vertical vise upright to ensure quick blade changing
Standard Equipment:
Linear Motion Ball Rail Cutting Head Traverse
Easy Slide Manual Adjustable Guide Arm
Blade Powered Rotary Cleaning Brush
All Safety Guards with Electronic Door Interlocks
Roller Guides with Carbide Inserts
Operator Manual/Parts List
Operator and Maintenance Training
Semi-Automatic Operation
Built-In Mist Coolant System with Controls
Fork Light Pockets in Base
Mechanical Specifications:
Dimensions: 140″ x 48″ x 86″ H
Shipping Weight: approx. 4,500 lbs.
FOB Factory – Contact us for Availability
