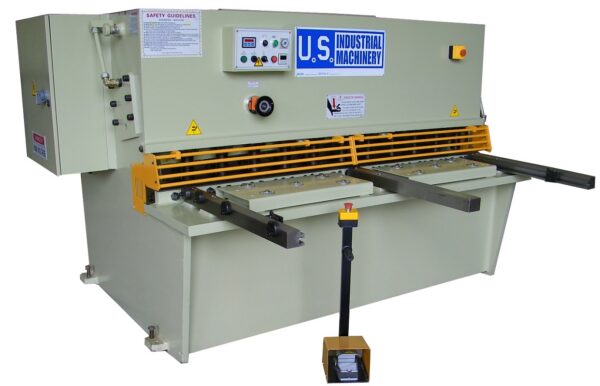

U.S. Industrial 6′ x 1/4″ Hydraulic Shear, US625

Shipping: Add to Cart to Calculate

SKU: US625

Inventory #: 6526

Category:

Condition:

Type:

Brand:

Description

U.S. Industrial 6′ x 1/4″ Hydraulic Shear, US625

Inventory # 6526

Model: US625

Specifications:

Sheet Size: 78 1/2″

Shearing Capacity: 1/4″ Mild Steel @ 65,000 PSI

Shear Angle: 1° 30′

No Load Strokes: 18

Throat Depth: 5 1/2″

Adjustment Range of Back Gauge: 3/4″ – 36″

Hydraulic Oil Capacity: 45 Gallons

Motor: 15 HP / 230v, 460v / 3ph

Standard Features:

Squaring arm

High carbon, High chrome shear blades

Ball transfers on each table segment

Manual quick change blade gap adjustment

Squaring arm, 39 1/2″ from blade to end

Stroke counter

Front-controlled power back gauge

Blade guard, micro switch protected

Hydraulic, electrical overload protection

Automatic swing-up on back gauge

Two bolts on table segments

Hold-downs faced with anti-mar neoprene

Swing beam design

Pressure sensing hold downs

Electric stroke adjustment

Operator control console

Shadow lighting

Low noise gear pump

Support arms

Material drop support chute

Mechanical Specifications:

Dimensions: 103″ x 63″ x 63″ H

Weight: approx. 11,023 lbs.

Contact us for special pricing and availability

FOB Factory

Optional Equipment:

6′ Squaring Arm

8′ Squaring Arm

10′ Squaring Arm

Please Note: Machines ship drained of all hydraulic fluid. End user is responsible for purchasing and filling the machine with Exxon Mobil NUTO-H46 hydraulic fluid, or equal

Additional information

Weight 11300 lbs
