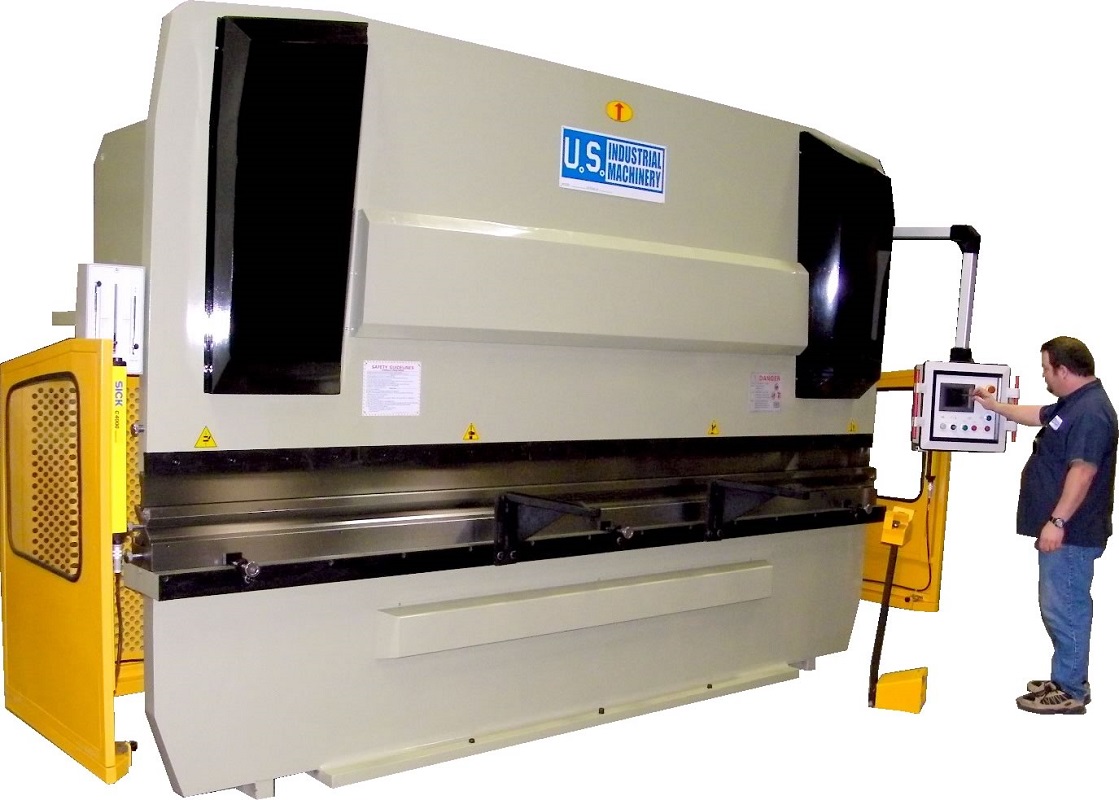

U.S. Industrial 10′ x 200 Ton CNC Hydraulic Press Brake, USHB200-10
Inventory # 6524
Model: USHB200-10
Specifications:
Working Pressure: 200 Tons
Length of Working Table: 125.9″
Distance Between Housings: 102.3″
Throat Depth: 12 1/2″
Stroke Adjustment of Ram: 2 3/4″
Ram Travel: 7″
Open Height: 17 1/2″
Rapid Ram Travel Speed: 2.4″/Sec.
Rapid Ram Retreat Speed: 2″/Sec.
Back Gauge Travel: 24″
Pressing Speed: Dependent on Tool Load
Hydraulic Oil Capacity: 79 Gallons
Motor: 20 HP / 230v, 460v / 3ph
Standard Features:
Ram deflection adjustment
Mechanical ram depth control
Massive torsion bar for parallelism
Forged heavy duty cylinder and cylinder body
Three speed ram
Rapid approach, bending cycle and rapid retreat
Bottom time delay
All steel construction
Inching, single cycle, and continuous operation
Ram takes standard American Tang tooling (1/2″ x 5/8″)
Space between ram tool clamps allows for deep box bending
Bed has slot for standard American Tang tooling
Bed also holds tooling with capture clamps
Free goose neck punch and multi-opening die for up to 90° forming in 10 gauge mild steel
Mechanical Specifications:
Dimensions: 148″ x 64″ x 101″ H
Weight: approx. 25,357 lbs.
Optional Equipment Included:
CNC 2-Axis Color Graphic Control: Controls both bend angle and back gauge position. Comes with 6″ LCD screen. Code and graphic programming included
CNC Controlled Mechanical Auto Crown
Sick Model 4000 Light Curtain System
Contact us for special pricing and availability
FOB Factory
Please Note: Machines ship drained of all hydraulic fluid. End user is responsible for purchasing and filling the machine with Exxon Mobil NUTO-H46 hydraulic fluid, or equal
