Tennsmith 52″ Hydraulic Powered Foot Squaring Shear, 52H

Shipping: Add to Cart to Calculate

SKU: 52h

Inventory #: 5081

Categories: , , ,

Condition:

Type:

Brand:

Description

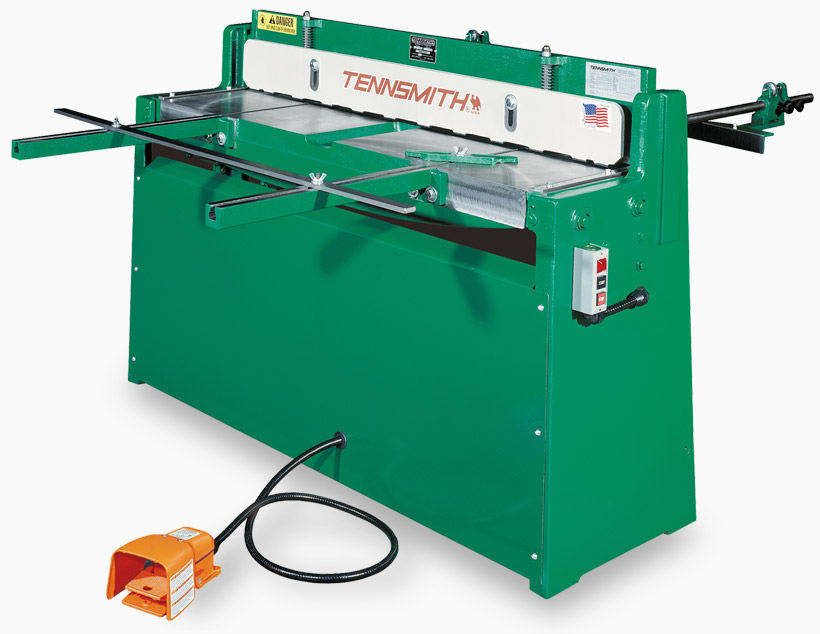

Tennsmith 52″ Hydraulic Powered Squaring Shear, 52H

Inventory # 5081

Model: 52H

Made in USA

Description:

The Tennsmith 52H cycles at 45 strokes a minute. Low maintenance design feature a solenoid actuate valve, 3 HP electric motor, self-contained pump in tank with pressure gauge, check valve and industrial quality cylinders. The motor is protected by a magnetic starter

Specifications:

Capacity:

Mild Steel: 16 Gauge

Stainless Steel: 20 Gauge

Max. Cutting Length: 52 1/4″

Back Gauge Range: 30″

Front Gauge Range: 37″

Strokes per Minute, Full Length: 45

Max. Operating Pressure: 1,450 PSI

Motor: 3 HP / 230v, 460v / 3ph

Standard Equipment:

“HCHC” Blades

Low Voltage On/Off Switch

Back Gauge

Front Extension Arms with Stop

Graduated Side Gauges

Foot Operated Air Valve Control

Pressure Regulator

Padded Neoprene Hold-Down Feet

*** Optional Squaring Arm and One-Shot Lubricating System

Mechanical Specifications:

Dimensions: 60″ x 80″ x 42″ H (with Gauges in Position)

Shipping Weight: approx. 1,300 lbs.

FOB Factory

Additional information

Weight 1300 lbs
