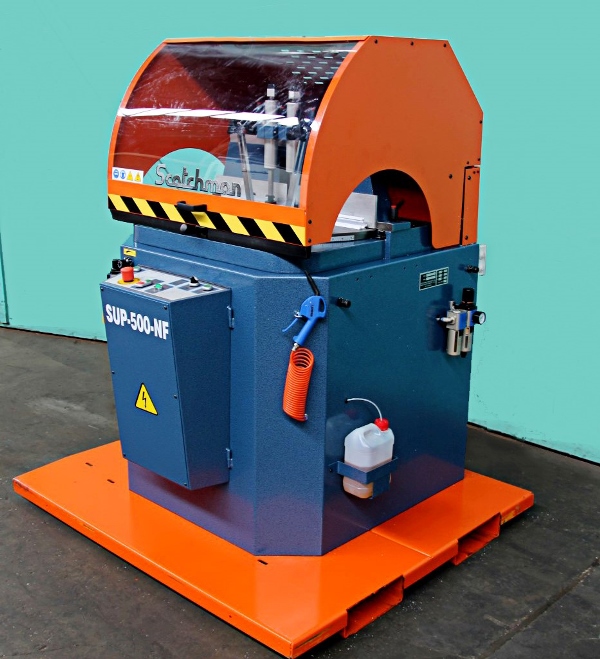

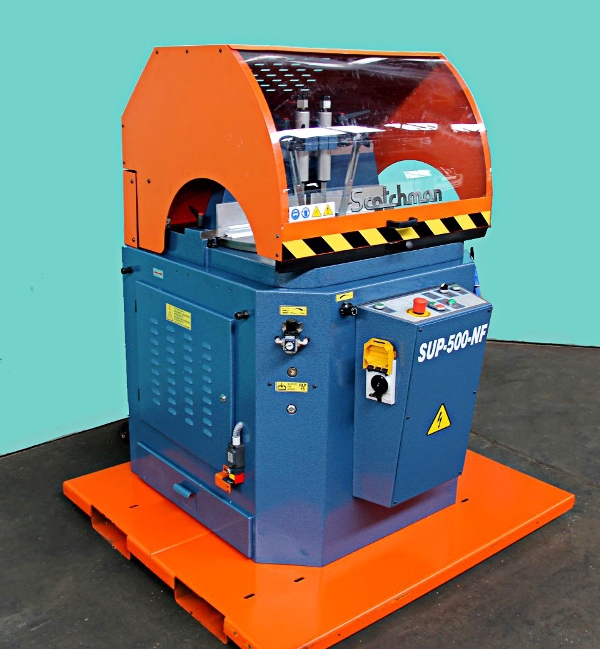

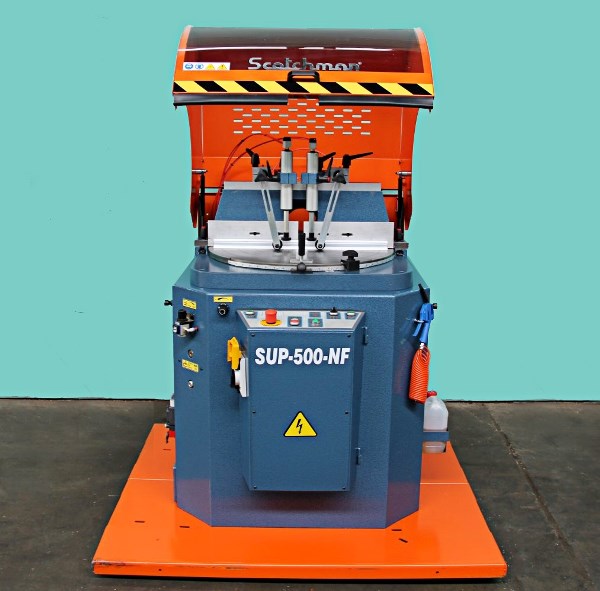

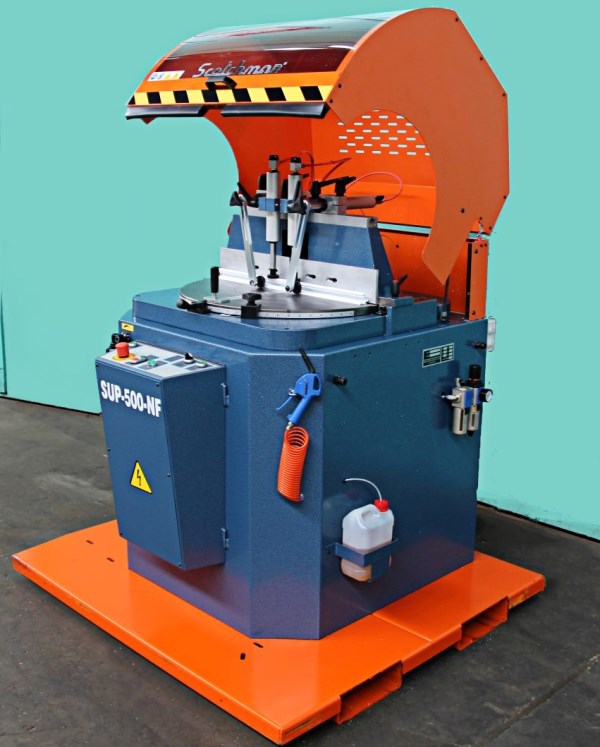

Scotchman 20″ Semi-Automatic Non-Ferrous Cold Saw, SUP 500 NF
Inventory # 5925
Model: SUP 500 NF
Made in Spain
Description:
The SUP-500 is an up-cut circular cold saw designed specifically for cutting non-ferrous material. Featuring a 20″, 120 tooth carbide blade that is capable of producing round cuts up to 7″ in diameter and rectangular cuts up to 11 3/4″ x 5″, the SUP-500 NF offers an increased cutting capacity not found in similar Scotchman models
Standard features of the SUP-500 include an adjustable feed rate, mitering capability of 30° left and 0° right, four pneumatic clamps to secure material being cut and integrated debris collection. Standard safety features include dual hand operation and a safety interlock that will prevent the saw from operating if the safety hood is not closed
Specifications:
Capacity:
@ 90°:
Round: 7″
Square: 6″ x 6″
Rectangle: 11 3/4″ x 5″
@ 45°:
Round: 7″
Square: 4 3/4″ x 4 3/4″
Rectangle: 5 3/4″ x 4 3/4″
Cutting Speed: 3,000 RPM
Max. Diameter Blade: 20″
Arbor Bore: 1.97″
Motor: 5.5 HP / 230v, 460v / 3ph
Standard Features:
Precision miter up-cut non-ferrous saw
Safety hood with safety switch that will not allows saw to run with hood open
Blade door with safety interlock switch
Dual palm buttons
Adjustable feed rate on saw head

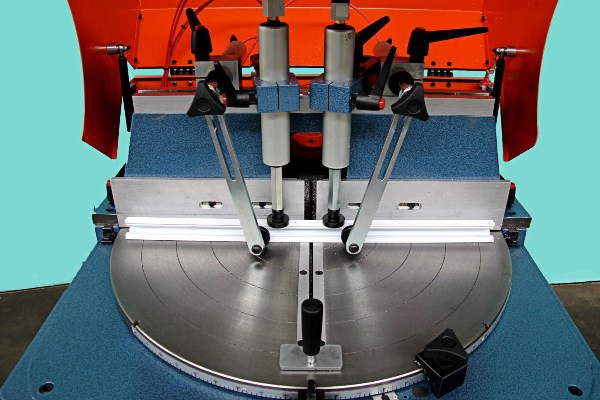

Two horizontal pneumatic clamps
Two vertical pneumatic clamps

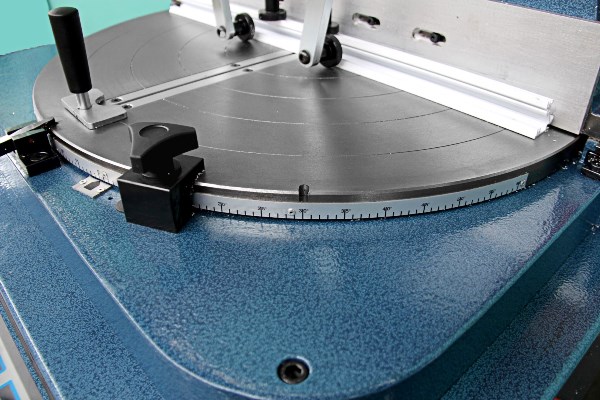

Miter capability 30° left, 90° straight, 0° right
Capable of slotting
Moveable back fence for larger capacity
One gallon coolant
Coolant tank with mist lubrication
One 20″ diameter, 120-tooth carbide blade
One blade wrench
Air hose
Chip collection drawer in base and a 4 3/4″ chip collection port
Noise level DB 68
Adjustable leveling pads
Three year parts warranty
Mechanical Specifications:
Dimensions: 47 1/4″ x 43 3/8″ x 60 1/4″ H
Shipping Weight: approx. 1,069 lbs.
Contact us for special pricing and availability
FOB Factory
Please Note: Machine May be Subject to Steel Surcharges, Please Request a Quote
