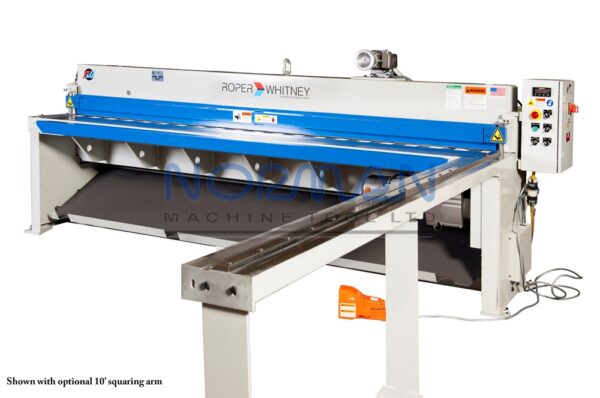

Roper Whitney 10′ x 14 Gauge Mechanical Shear, 10M14

Shipping: Add to Cart to Calculate

SKU: 10M14

Inventory #: 7246

Categories: ,

Condition:

Type:

Brand:

Description

Roper Whitney 10′ x 14 Gauge Mechanical Shear, 10M14

Inventory # 7246

Model: 10M14

Made in USA

Description:

Roper Whitney’s 10M14 mechanical shear utilizes a simple low maintenance design. The Electro-Mechanical design provides quiet operation with low power consumption

Specifications:

Capacity:

Mild Steel: 14 Gauge

Stainless: 18 Gauge

Max. Cutting Length: 121 1/4″

Backgauge Range: 24″

Strokes per Minute: 35

Number of Holddowns: Solid Bar Insert

Working Height of Shear Table: 31 3/4″

Motor: 5 HP / 230v, 460v / 3ph

Backgauge Motor: 1/4 HP / 230v, 460v / 3ph

Standard Features:

The shear is initiated by a moveable footswitch

An oversized shield and toe kick plate are incorporated into the footswitch for added operator safety

Comes with a two edge interchangeable top and bottom, high carbon, high chrome top and bottom blades

Independent, self-leveling holddown with neoprene insert

Single, continuous and jog stroke cycles

Motor reverse switch

Precision-machined table with dual inch/metric inlaid bed scales and non-metallic gibs

Equipment Included:

24″ Front Operated Powered Backgauge System

4′ Squaring Arm

Front Support Bar

Air Operated Sheet Support System

Mechanical Specifications:

Dimensions: 141″ x 64″ x 52″ H (with Gauges)

Weight: approx. 5,500 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 6500 lbs
