Roper Whitney 10′ x 11 Gauge CNC Autobrake with 61″ Backgauge, AB1011K
Inventory # 7170
Model: AB1011K
Made in USA
Specifications:
Capacity:
Mild Steel: 11 Gauge
Stainless Steel: 20 Gauge
Max. Bending Length: 126″
Bending Bars: 0.787″, 0.390″, 0.250″
Backgauge Depth: 61″
Clamping Beam Opening: 7.9″ H
Clamping Beam Straight Bar Tooling: 30°
Folding Beam Adjustment: 3.14″
Crowning of the Folding Beam: 5 – point 0″ – .030″ adjustment
Working Height: 35″
Max. Box Depth: 6.3″
Backgauge Servo Motor: 3/4 HP
Clamping Beam Motor: 4 HP
Bending Beam Motor: Dual 4 HP
Standard Features:
Provides accuracy and repeatability when forming up to 10′ long 11 gauge or lighter materials
It is a high speed solution to make multiple bends while maintaining a high quality level in the end product

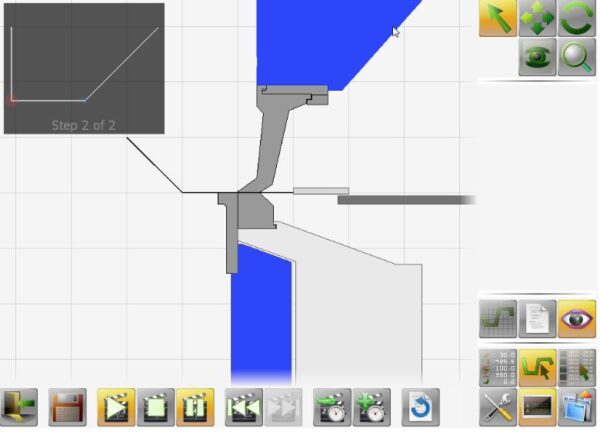

The Synergy control offers high speed versatility to an end user. It offers multiple methods of programming from simple line-by-line to draw-to-auto program
The Autobrake design is a plate and weldment steel construction, delivering superior performance and features in a simplified rigid design
Clamping and hemming capabilities come standard and are already included in the software. Clamping and hemming power is delivered to the clamp jaws by a series of spring washers to provide variable clamping pressures with a shock-absorbing end stop
The Autobrake comes standard with a rotating Kombi beam. This unique tooling assembly adds to the machine’s straight and box folding capabilities to produce more complex shapes in less time
Mechanical Specifications:
Dimensions: 180″ x 100″ x 83″ H
Weight: approx. 13,500 lbs.
Contact us for special pricing and availability
FOB Factory
