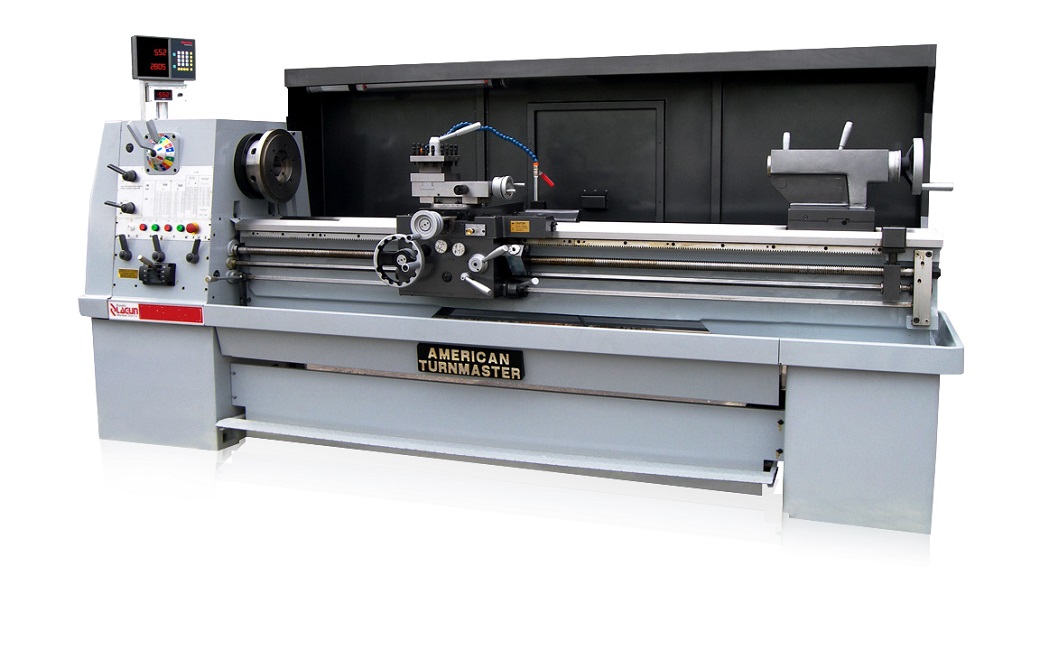

Republic Lagun 18″ x 80″ Precision High Speed Lathe, AT-1880-TW-EVS-A
Inventory # 6630
Model: AT-1880-TW-EVS-A
Made in USA
Specifications:
Swing Over Bed, for 9″: 18″
Swing Over Bed, Full Length: 19″
Swing Over Cross Slide: 11″
Swing Through Removable Gap Block: 28″
Distance Between Centers: 80″
Spindle Nose: D1-8
Spindle Bore: 3.150″
Spindle Speeds: 15 – 2,000 RPM
Carriage Wings: 21″
Cross Slide: 24 1/2″ x 8″
Cross Slide Travel: 11″
Top Slide Travel: 5 3/8″
Bed Width: 13 1/2″
Swing in Gap: 28″
Gap Bed Length from Faceplate: 8″
Number of “V” Ways: 3
Quill Diameter: 3″
Quill Center: M.T. 5
Quill Travel: 7″
Standard Threads: (45) 2 – 72 T.P.I.
Metric Threads: (39) 0.2 – 14
Longitudinal Feeds: 0.0015″ – 0.040″
Motor with Inverter Drive: 10 HP / 220v / 3ph
Standard Features:
One piece cast bed for rigidity and vibration dampening
Highest quality stress relieved meehanite castings
Tei-way design, with three vee ways maintains perfect alignment of carriage on bed and eliminates any twisting
Approved electrics meeting NFPA/NEMA standards
Headstock with hardened and ground gears
Gearbox hears hardened and ground
Bed ways induction hardened and ground to minimum HR-70
Forged alloy steel spindle, 3 bearing design, with opposed Timken taper bearings and ball bearing in the rear
Spindle nose camlock type, DI-8
Baldor electronic variable speed drive system
Infinitely variable spindle speeds in four manual shift ranges
Removable gap block for increased swing
Apron controlled lead screw/feed rod reverse
Full length foot brake
Full length rear splash guard
Safety clutch on feed shaft
Turcite B anti-friction material on carriage ways
Cross slide nut with backlash eliminator
Totally enclosed universal gearbox provides inch/metric threads without changing end train gears
Inch/metric dual duals on cross slide; compound and tailstock
Graduated tailstock barrel with tang slot
Flood coolant system
Chip and coolant tray in front for easy accessibility
Manual indexing square 4-position tool post
High-pressure automatic lubrication exclusively to headstock
One-shot lube to carriage a cross slide and cross slide screw
Splash lubrication to gearbox and apron
Two dead centers and headstock sleeve
Rear mounted electrical enslosure
Thread chasing dial
Leveling pads
Set of service tools, operator’s manual and parts list
FOB Factory – Contact us for Pricing and Availability
