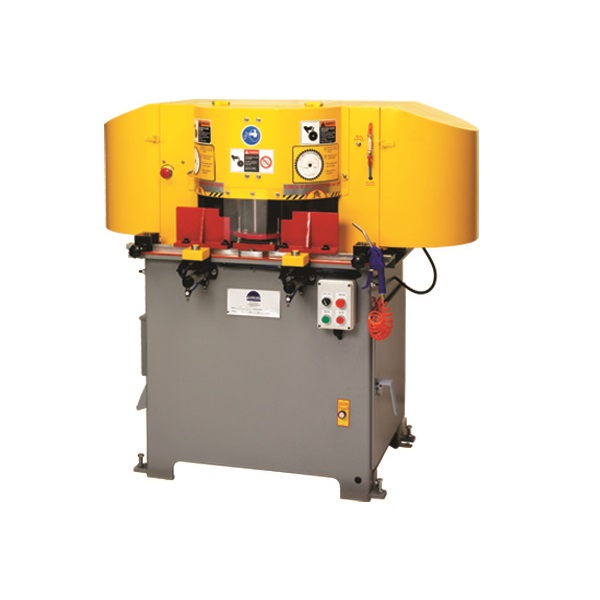

PMI 45° Double-Blade Vertical Cut-Off Saw, PMI-14 A

Inventory # 6664

Model: PMI-14 A

Description:

The PMI-14 A 45° Double-Blade Angular Sawing Machine is designed to cut non-ferrous material quickly and accurately with a burr-free finish. This machine has two saw blades that are positioned at 45° vertically to reduce waste

The PMI-14 A is ideal for manufacturers of door and window frames because it can produce two opposing 45° cuts in a single cycle. The double saw blade design greatly increases your production and efficiency

Specifications:

Cutting Angle: 45°

Cutting Width: 3.93″ x 3.54″

Cutting Height: 3.93″ x 5.51″

Saw Blade:

Size: 14″ x 1″ Bore (2)

Speed: 3,400 RPM

Motor: 2 HP (Each Saw Blade)

Work Table Height: 32.67″

Standard Features:

Saw Blade Spinde: The saw blades travel vertically through the work piece on two precision machined shafts to assure consistent and accurate cutting. The PMI-14 A is equipped with two saw blade that are staggered at 45°

Saw Blade Feed: The saw blade feed is controlled via a pneumatic cylinder with full control of the feed rate. This will allow for accurate cuts and long blade life. In addition, the saw blade travel is controlled for fastest cycle time

Work Piece Clamping: The PMI-14 A is equipped with 2 vertical clamps as well as 2 horizontal clamps. The pneumatic clamping system has adjustable clamping pressure to prevent distortion when cutting thin walled materials

Saw Blade Lubrication: Saw blades are lubricated via a precision mist system. A small amount of lubricant is introduced to an air line at the point of discharge for control and economical distribution of the saw lubricant

Safety Limit Switch: Blade access door is protected via a limit switch that will shut down the machine in case of an open door

Infeed and outfeed flat top conveyors with length stop gauge

2 saw blades included

Tool box included

Mechanical Specifications:

Dimensions: 53.93″ x 32.28″ x 51.57″ H

Weight: approx. 682 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 682 lbs
