Description

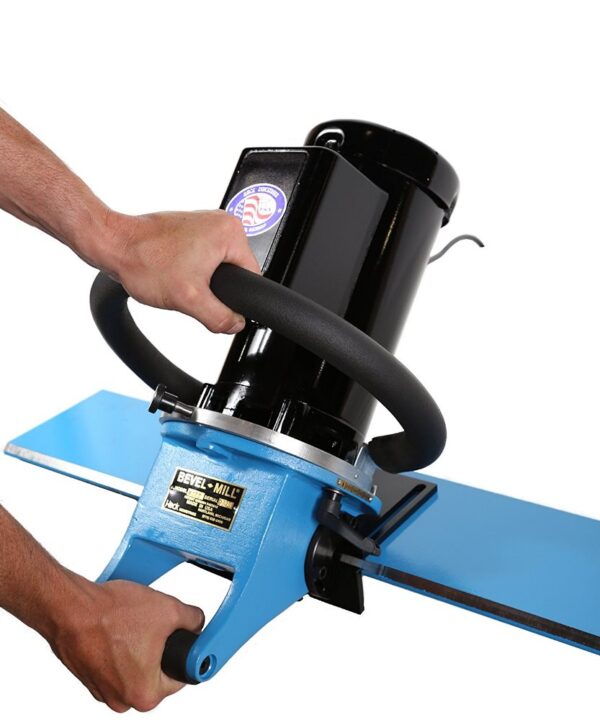

Heck Industries 9000 Bevel-Mill Plate Beveler, 1 1/4″ Maximum Bevel

Inventory # 7126

Model: 9000

Made in USA

Specifications:

Bevel angle: 15 to 45°

Maximum bevel: 1 1/4″

Minimum bevel: 0″

Minimum workpiece thickness: 1/8″

Maximum plate thickness at 45°: 7/8″

V-block length: 9″

Motor: 1 1/2 hp / 110 v

Standard Features:

Handheld beveler machines a 1 1/4″ maximum beveled burr-free edge on most materials with a minimum thickness of 1/8″

1 1/2 hp, 110 V motor machines bevels at approximately 3 feet per minute on mild steel without creating dust, fumes, or head

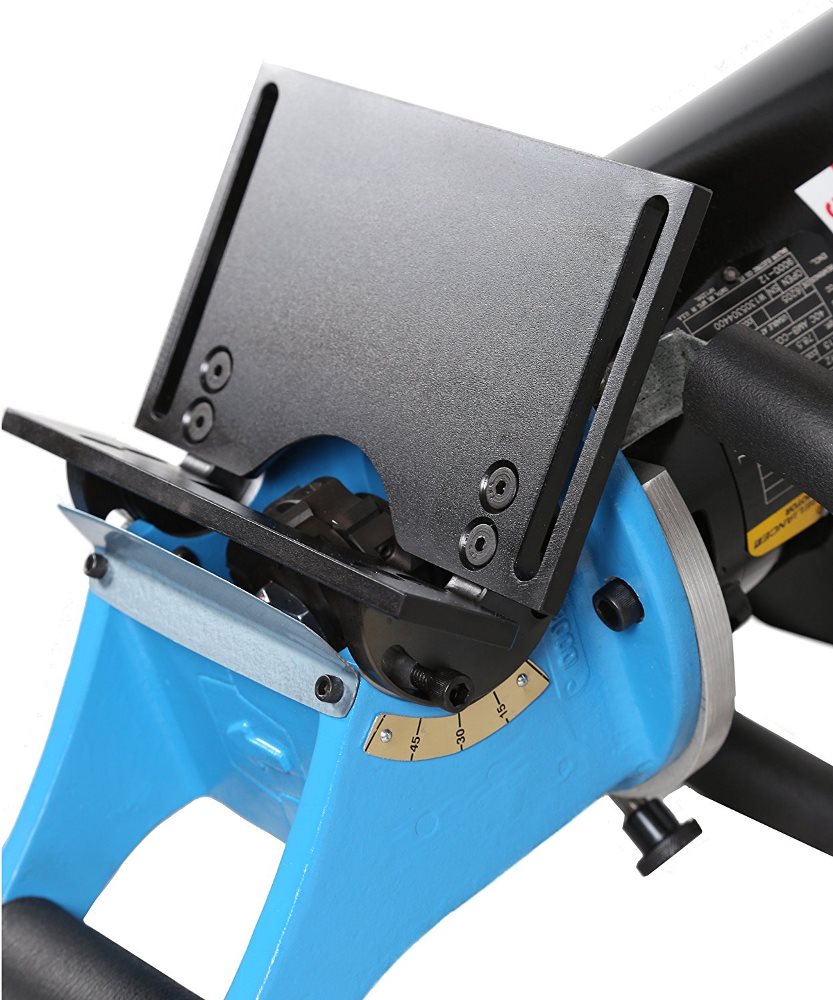

Cut depth and angle adjust for a customized bevel

Attached V-block plate supports the machine on the workpiece, reducing operator strain

Includes 10 square, C-5 grade carbide inserts that can each be indexed 4 times to refresh the cutter

Mechanical Specifications:

Overall Dimensions: 24″ L x 18″ W x 16″ H

Overall Weight: 60 lbs.

FOB Factory – Contact us for Availability
