Description

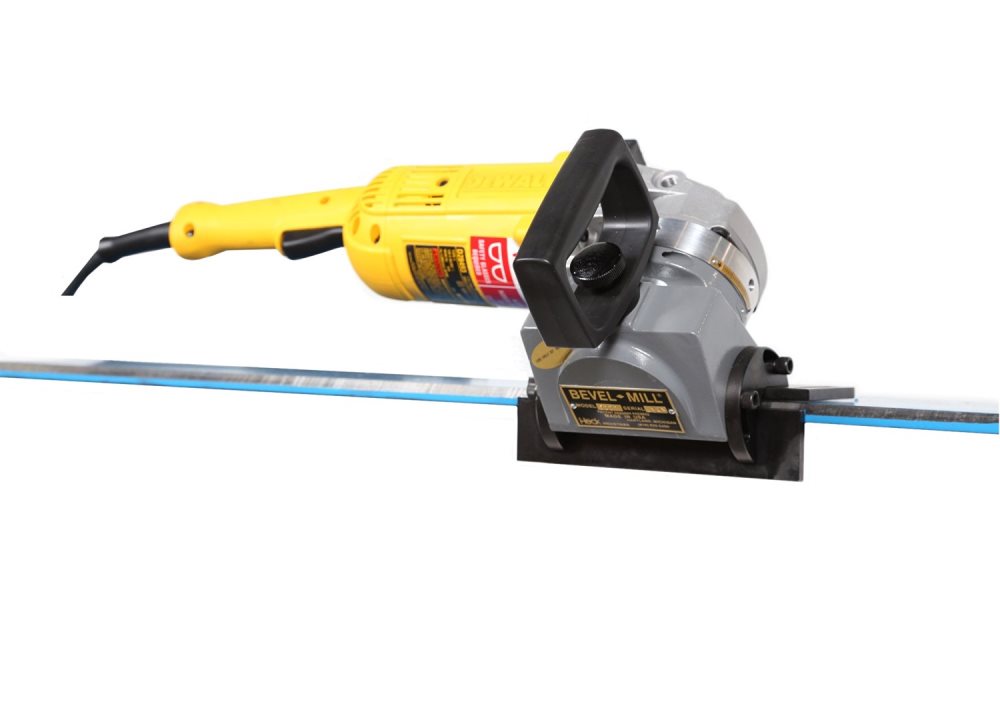

Heck Industries 5000 Bevel-Mill Plate Beveler, 5/16″ Maximum Bevel

Inventory # 7124

Model: 5000

Made in USA

Specifications:

Bevel angle: 15 to 45°

Maximum bevel: 5/16″

Minimum bevel: 0″

Minimum workpiece thickness: 1/8″

V-block length: 8″

Motor: 110 v

Standard Features:

Handheld beveler machines a 5/16″ maximum beveled burr-free edge on most materials with a minimum thickness of 1/8″

2 hp, 110 V motor machines bevels at approximately 3 feet per minute on mild steel without creating dust, fumes, or head

Cut depth and angle adjust for a customized bevel

Attached V-block plate supports the machine on the workpiece, reducing operator strain

Includes 5 square, C-5 grade carbide inserts that can each be indexed 4 times to refresh the cutter

Mechanical Specifications:

Overall Dimensions: 24″ L x 18″ W x 16″ H

Overall Weight: 19 lbs.

FOB Factory – Contact us for Availability
