Description

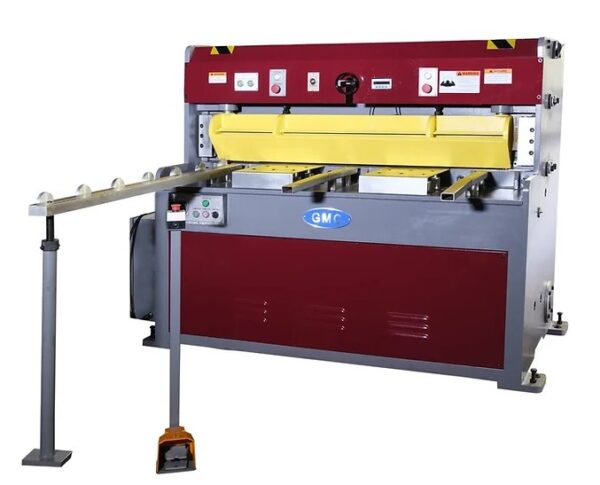

GMC 6′ x 1/4″ Hydraulic Shear, HS-0625E
Inventory # 6294
Model: HS-0625E
Specifications:
Capacity:
Mild Steel: 6′ x 1/4″
Stainless Steel: 6′ x 10 Gauge
Blade Length: 78″
Strokes per Minute: 10 – 17 (Adjustable)
Throat Depth: 18″
Front Support Arm: 24″
Back Gauge: 24″ (Power)
Blade Rake Angle: 2°
Worktable Height: 34 1/2″
Oil Tank: 25 Gallons
Motor: 10 HP / 220v OR 440v / 3ph (Please Specify Desired Voltage at Time of Order)
Standard Features:
ISO 9001 certified
Automatic quick change blade gap adjustment (BGA), no lever required
Shadow line for accurate straight-cutting
Adjustable cutting length and stroke
Ball transfer plates on the worktable for easy loading of workpiece
Well-balanced and sturdy all-steel machine frame
German-made hydraulic logic system centrally located and quiet
Hydraulic hold-downs with anti-mar neoprene
Shear blades are high-grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 4-edge indexable bottom blade
Full-length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal; automatic blade raises up on the removal of foot from the pedal
Hydraulic and electrical overload protection
Compact operator control panel
All motors are overload-protected and low low-voltage control system
Jog or continuous auto cycle cutting operation modes
One-year industrial warranty for parts
Standard Equipment:
24″ German SIKO front operated power back gauge with micro adjustment
60″ squaring arm with inlaid inch/metric dual scale
Material support and drop back chute
Upper and bottom blades set with 4-edge on the bottom and 2-edge on the upper
(2) 24″ front support arms
Mechanical Specifications:
Dimensions: 102″ x 89″ x 63″ H
Weight: approx. 7,650 lbs.
FOB Factory – Contact us for availability
Please Note: This machine is not compatible with phase converters and using a phase converter will void the machine’s warranty
