Description

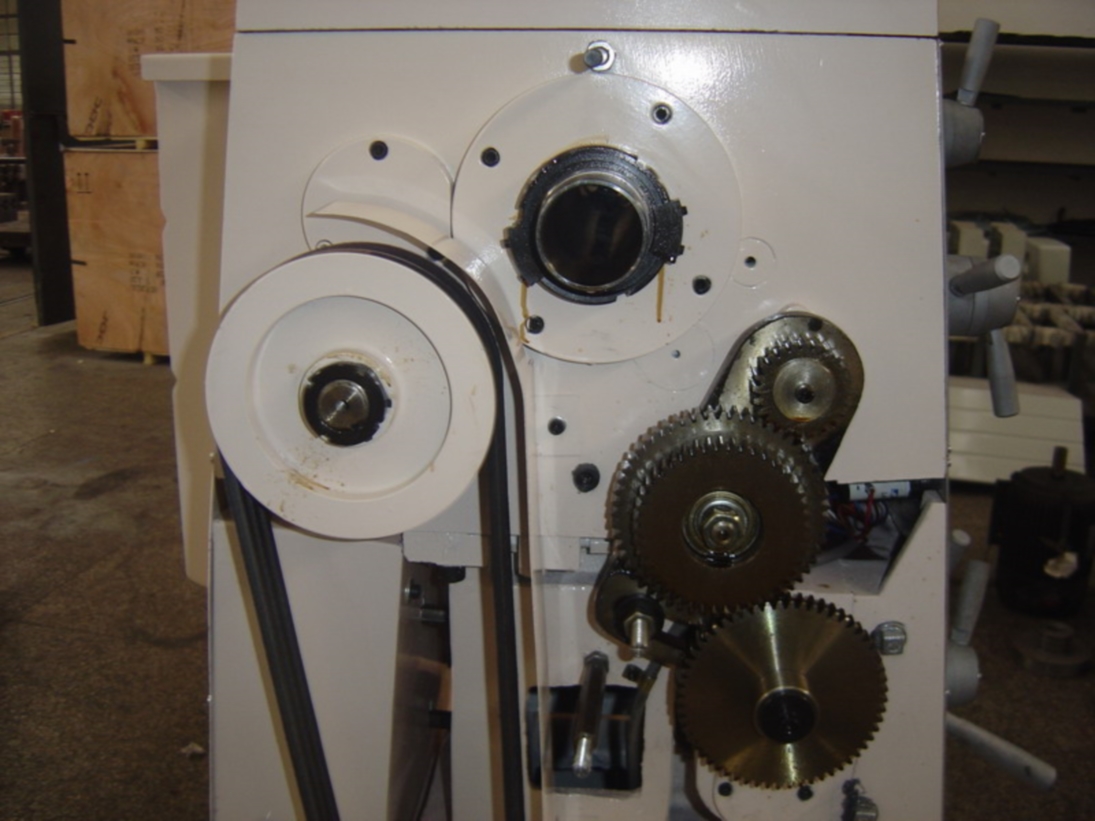

GMC 16″ x 40″ Heavy Duty Precision Gap Bed Lathe, GML-1640HD
Inventory # 4031
Model: GML-1640HD
Specifications:
Max. Swing Over Bed: 16-1/16″
Max. Length of Workpiece: 40″
Max. Swing Over Cross Slide: 10 1/4″
Max. Swing in Gap: 23 1/4″
Width of Bed: 10 1/4″
Effective Length in Gap to Spindle: 8 1/2″
Effective Legnth in Gap to Chuck Jaws: 3 1/2″
Spindle Bore: 2 1/16″
Spindle Type: D1-6
Taper of Spindle Center: M.T. # 6
Spindle Speeds (16): 45 – 1,800 RPM
Max. Travel of Top Slide: 4 1/4″
Max. Travel of Cross Slide: 8 1/2″
Spindle Length without Chuck: 20 1/2″
Lead Screw Length: 1 1/4″ x 4 TPI
Diameter of Tailstock Quill: 2 1/16″
Max. Travel of Tailstock Quill: 5″
Taper of Tailstock Quill Center: M.T. # 4
Motor: 6 HP / 220v / 3ph
Standard Features:
ISO 9001 Certified
One-piece solid cast iron machine base
45 kinds of inch threads and 39 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guide ways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year industrial warranty for parts
Equipment Included:
8″ 3-Jaw Chuck with Set Reversible Jaws
10″ 4-Jaw Chuck with Set Reversible Jaws
12″ Face Plate
5 1/2″ Large Steady Rest with Roller Jaws
Oil Pump on Apron for all Guide Ways and Lead Screws
2″ Follow Rest
Removable Gap
4-Way Tool Post
Foot Brake
Halogen Work Light and Coolant System
Full Length Splash Guard
(2) Dead Centers and (1) Reducing Sleeve M.T. # 6 / M.T. # 4
Thread Chasing Dial
Tool Box and Leveling Pads
Taper Turning Attachment (Installed): $750.00 Savings
Mechanical Specifications:
Dimensions: 79″ x 38″ x 56″ H
Weight: approx. 4,150 lbs.
FOB Factory – Contact us for availability
Please Note: This machine is not compatible with phase converters and using a phase converter will void the machine’s warranty
