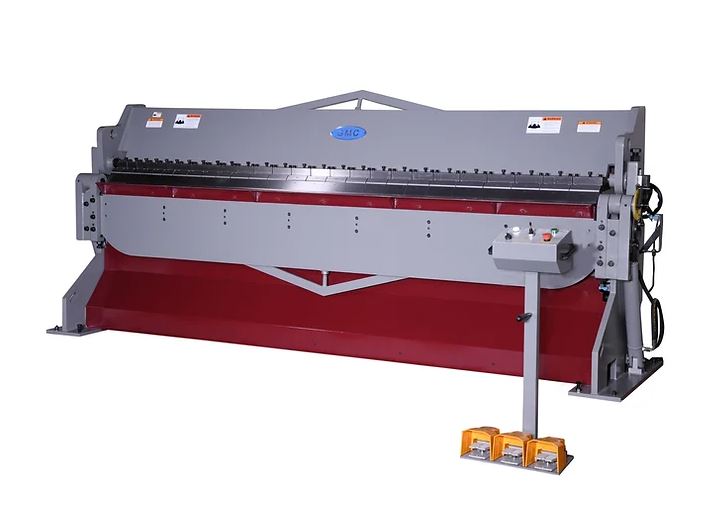

GMC 6′ x 10 Gauge Heavy Duty Hydraulic Box & Pan Brake, HBB-0610
Inventory # 6241
Model: HBB-0610
Specifications:
Capacity:
Bending Length: 6′
Mild Steel: 10 Gauge
Stainless Steel: 12 Gauge
Box Depth: 6″
Bend Angle: 135°
Oil Tank: 15 Gallons
Motor: 5 HP / 220v, 440v / 3ph
Standard Features:
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece
26″ manual back gauge
1″ manual beam adjustment (front and back)
Heavy welded all steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Wide guideboy ensures strong, stable, smooth and accurate movement
Assorted fingers (3″, 4″, 5″, 6″)
Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts
Standard Equipment:
Assorted fingers
26″ manual back gauge
Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping and auto mode
Mechanical Specifications:
Dimensions: 91″ x 46″ x 67″ H
Weight: approx. 5,000 lbs.
FOB Factory – Contact us for availability
Optional Equipment:
One-Piece Straight Finger Instead of Assorted Fingers
Safety Fence for Enclosure of the Front Side of the Machine
