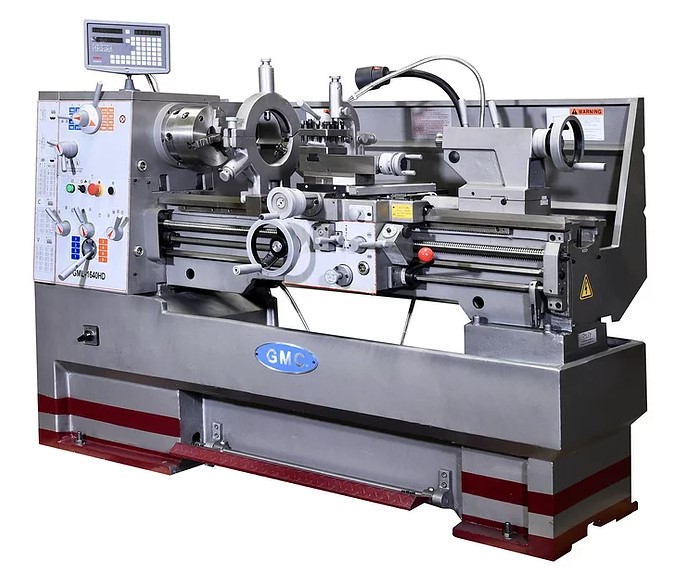

GMC 16″ x 60″ Heavy Duty Precision Gap Bed Lathe, GML-1660HD

$14,850.00


Shipping: FREE SHIPPING

In stock

SKU: GML-1660HD

Inventory #: 6296

Categories: ,

Condition:

Type:

Brand:

Description

GMC 16″ x 60″ Heavy Duty Precision Gap Bed Lathe, GML-1660HD

Inventory # 6296

Model: GML-1660HD

Specifications:

Swing Over Bed: 16 1/16″ Max.

Length of Workpiece: 60″ Max.

Swing Over Cross Slide: 10 1/4″ Max.

Swing in Gap: 23 1/4″ Max.

Width of Bed: 10 1/4″

Effective Length in Gap to Spindle: 8 1/2″

Effective Length in Gap to Chuck Jaws: 3 1/2″

Spindle Bore: 2 1/16″

Spindle Type: D1-6

Taper of Spindle Center: M.T. # 6

Spindle Speeds: 45 – 1,800 RPM (16 Steps)

Longitudinal Feeds: 0.0018 – 0.07 IPR (42)

Cross Feeds: 0.0009 – 0.03 IPR (42)

Travel of Top Slide: 4 1/4″ Max.

Travel of Cross Slide: 8 1/2″ Max.

Spindle Length without Chuck: 20 1/2″

Leadscrew Length x TPI: 1 1/4″ x 4 TPI

Diameter of Tailstock Quill: 2 1/16″

Travel of Tailstock Quill: 5″ Max.

Taper of Tailstock Quill Center: M.T. # 4

Motor: 6 HP / 220v / 3ph

Standard Features:

ISO 9001 certified

One-piece solid cast iron machine base

45 kinds of inch threads and 39 kinds of matric threads

Threading and feeding rate change without changing gears

Spindle is balanced, hardened and precision ground

Spindle is supported at 3-point by high precision bearings

All gears and shafts are hardened and precision ground

Guideways induction hardened and precision ground

Automatic lubrication system in the headstock feed box

One year industrial warranty for parts

Standard Equipment:

8″ 3-Jaw Chuck with Set Reversible Jaws

10″ 4-Jaw Chuck with Set Reversible Jaws

12″ Face Plate

5 1/2″ Large Steady Rest with Roller Jaws

Oil Pump on Apron for All Guideways and Leadscrews

2″ Follow Rest

Removable Gap

4-Way Tool Post

Foot Brake

Coolant System

Halogen Work Light

Full Length Splash Guard

(2) Dead Centers and (1) Reducing Sleeve

Thread Chasing Dial

Tool Box and Leveling Pads

Taper Turning Attachment (Installed)

Mechanical Specifications:

Dimensions: 100″ x 38″ x 56″ H

Weight: approx. 4,850 lbs.

FOB Factory – Contact us for availability

Please Note: This machine is not compatible with phase converters and using a phase converter will void the machine’s warranty

Additional information

Weight 5050 lbs
