Description

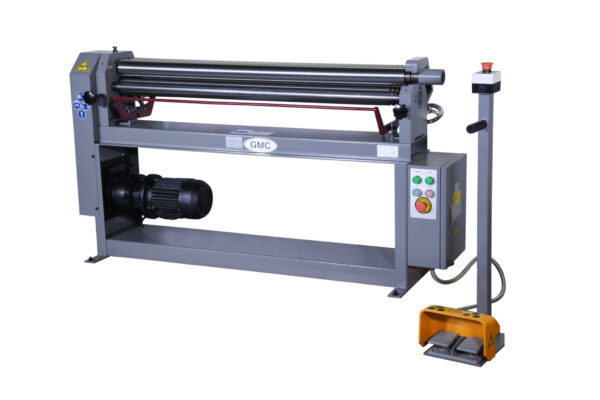

GMC 50″ x 14 Gauge PSR-5014 Power Slip Roll

Inventory # 7059

Model: PSR-5014 (Three Phase)

Specifications:

Capacity:

Rolling capacity: 50” x 14 Ga. (mild steel)

Stainless steel: 50” x 18 Ga.

Min. thickness capacity: 50″ 22 Ga.

Rolls size (length x diameter): 50”x 3”

Min. roll  bending dia. capacity: 3 1/2”

Rolls speed: 201” / min.

Rolls opening: 1/4″

(3) grooves sizes: 5/16”, 3/8” , 1/2″

Motor: 1.5 HP / 220v, 440v / 3ph (Please Specify Desired Voltage at Time of Order)

Features:

Heavy welded all steel construction for maximum rigidity

Silence electrical motor

Quick release top roller

Two rolls are driven

Precision ground rollers

All three rolls are made of high grade alloy steel, hardened up to 50 HRC

All rolls run forward and reverse

Safety type removable foot pedal

Overload protection and disconnect switch

Standard Equipment:

Electrical cabinet

Removable safety foot pedal

Mechanical Specifications:

Dimensions: 68″ x 29″ x 48″

Weight: approx. 928 lbs.

FOB Factory – Contact us for availability
