Description

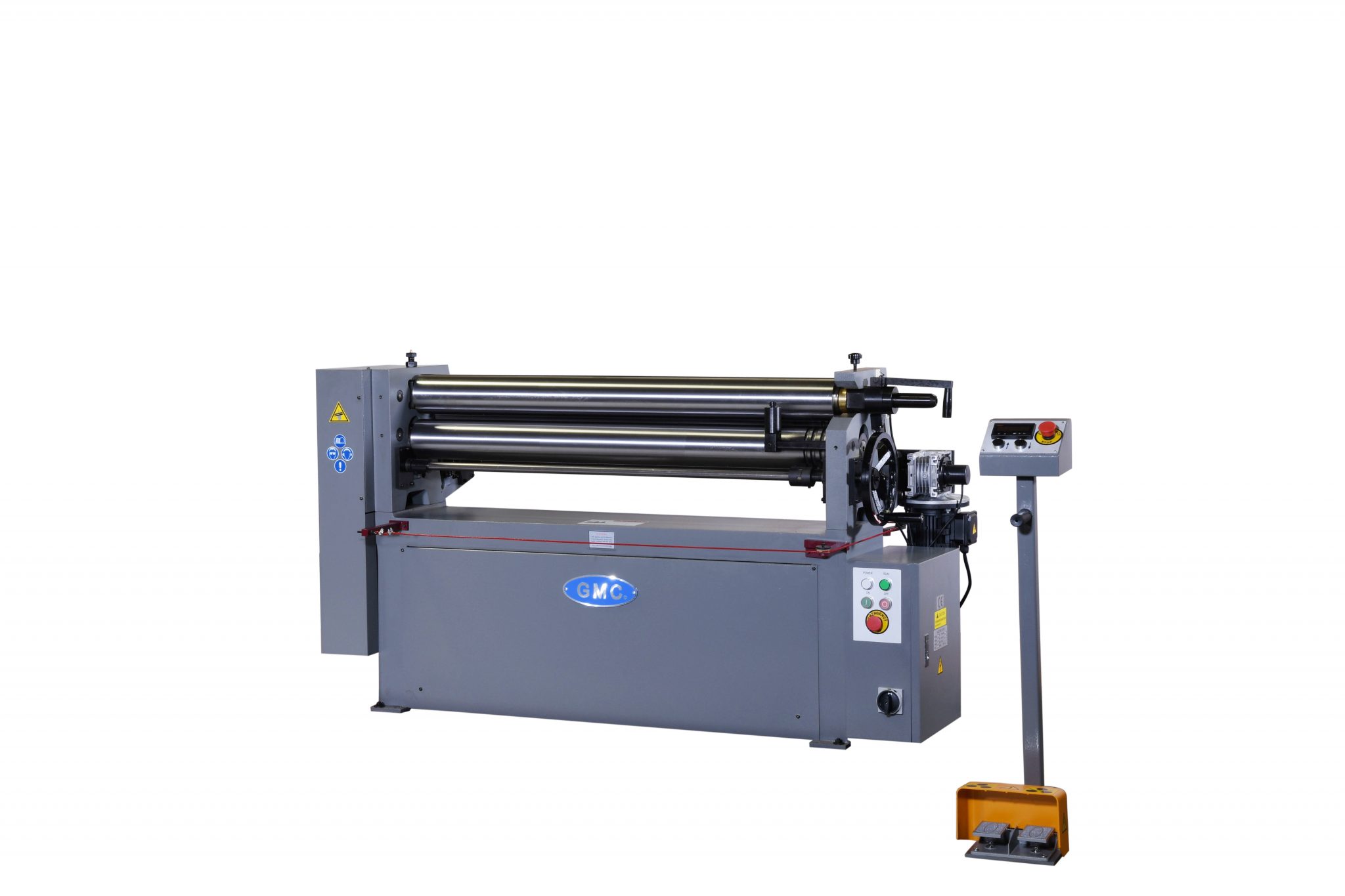

GMC 5′ x 10 Gauge Heavy Duty Power Bending Roll, PBR-0510E
Inventory # 6198
Model: PBR-0510E
Specifications:
Capacity:
Mild Steel: 5’1″ x 10 Gauge
Stainless Steel: 5’1″ x 14 Gauge
Roll Diameter: 4 3/4″
Min. Bending Diameter: 6″
Pre-Bend: 0.12″
Rolls Speed: 20 ft./min.
Rolls Opening: 1/2″
Main Motor: 3 HP / 230v OR 440v / 3ph (Please Specify Desired Voltage at Time of Order)
Standard Features:
ISO 9001 Certified
All three rollers are driven to achieve high accuracy
Motorized bending roll up/down with push button and digital display
Heavy duty cast frame
Heavy duty all steel welded construction
Middle of roller is straight, with crowning on both ends to achieve perfect round performance
Quiet running operation
Easy swing-out top roller
Safety line all around the machine for emergency stop
All rolls run forward and reverse
Safety type forward/reverse foot pedal
One year industrial warranty for parts
Standard Equipment:
Adjustable cone attachment
3/8″, 1/2″ and 5/8″ grooves on rollers
Removable safety foot pedal
Operation and parts manual
Orange color front cover is optional
Mechanical Specifications:
Dimensions: 96″ x 32″ x 52″ H
Weight: approx. 3,050 lbs.
FOB Factory – Contact us for availability
