Description

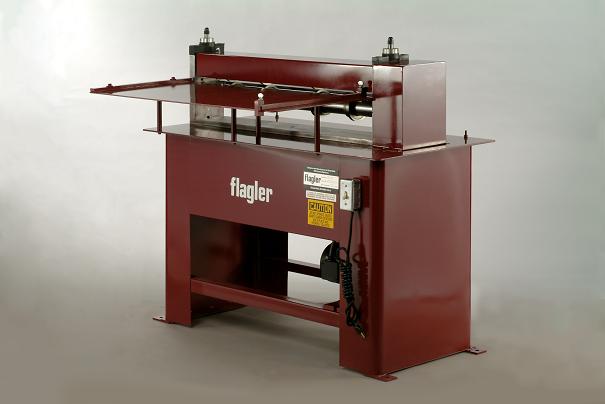

Flagler 22 Gauge Sheet Gang Slitter/Beader, GS-336
Inventory # 6666
Model: GS-336
MPN # 24-000
Made in USA
Description:
The Flagler Sheet Gang Slitter comes standard with 3 pairs of slitter knives. A fully adjustable feed gauge allows for the slitting of any increments down to and including a 4″ wide starting blank
These Flagler slitters will slit bronze, aluminum, brass and other materials as well as conventional galvanized sheets. All blade assemblies are fully adjustable over width of the machine. Micrometer adjustments on the main slitting arbor for fast, positive adjustment
Specifications:
Capacities:
Slitter: 22 – 26 Gauge, 3 Cuts
Beader: 22 – 26 Gauge, 3 Beads
Speed: 60 FPM
Motor: 1/2 HP / 115v / 1ph
Standard Features:
Roller Chain Drive
Arc Welded Steel Base
Mechanical Specifications:
Dimensions: 50″ x 31″ x 34″ H
Shipping Weight: 535 lbs.
Contact us for pricing and availability
FOB Factory
Optional Equipment:
Additional Slitting Blades (Pair)
Additional Beading Rolls (Pair)
Optional Head Support
