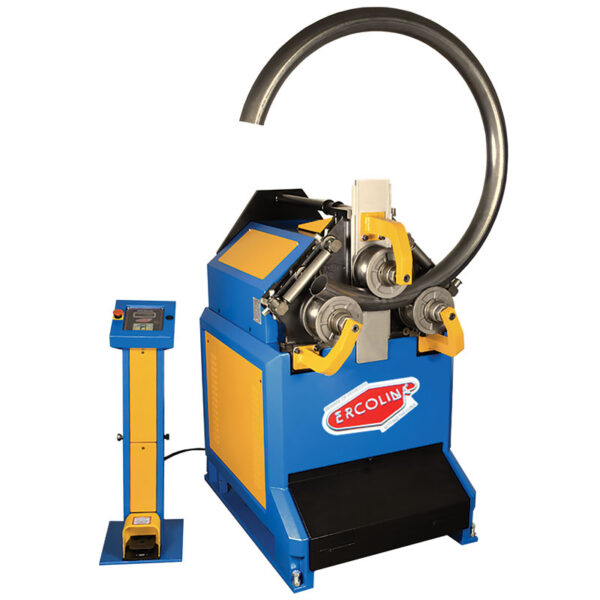

Ercolina 3″ Hydraulic Angle Roll Section Bender, CE60H3

Shipping: Add to Cart to Calculate

SKU: CE60H3

Inventory #: 7243

Categories: , ,

Condition:

Type:

Brand:

Description

Ercolina 3″ Hydraulic Angle Roll Section Bender

Inventory # 7243

Model: CE60H3

Specifications:

Capacities:

Pipe: 3″ sch. 10 max. (.120 wall)

Angle: 2 1/2″ x 2 1/2″ x 3/8″

Roll Shaft Diameter: 50 mm

Center Roll Positioning: Hydraulic 16.5 Ton

Shaft Speed: 9 rpm

Universal Tooling: 7″ O.D.

Distance Between Shafts: 15″

Programming: NC – Touchpad

Number of Programs: 8

Motor: 220v, 440v / 3ph

Standard Features:

Universal tooling set included with each machine

Forged roll shafts precision ground and fitted for maximum performance and minimal deflection

Roll shafts supported with conical steel bearings on each side of A Frame

Heavy duty structure and rigid components for high section modulus ratings

Reinforced engineered mainframe design proven to outperform competitive models

In-line direct drive roll shaft system 3-roll driven

Uses CE50 tooling

Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage

Touchpad controls with digital center roll positioning

Control tower with low voltage controls and foot pedal

Hydraulic machine with memory storage has eight

(8) Individual programs and unlimited passes

Patented by Ercolina, simultaneous downfeed and roll movement minimizes deformation

Tie bar supports for each shaft included

Optional anti-twist correction system required for angle iron “Leg In” applications

Mechanical Specifications:

Dimensions: 48″ x 29″ x 52″ H

Weight: approx. 1,200 lbs.

FOB Factory – Contact us for Pricing and Availability

Additional information

Weight 1400 lbs
