Description

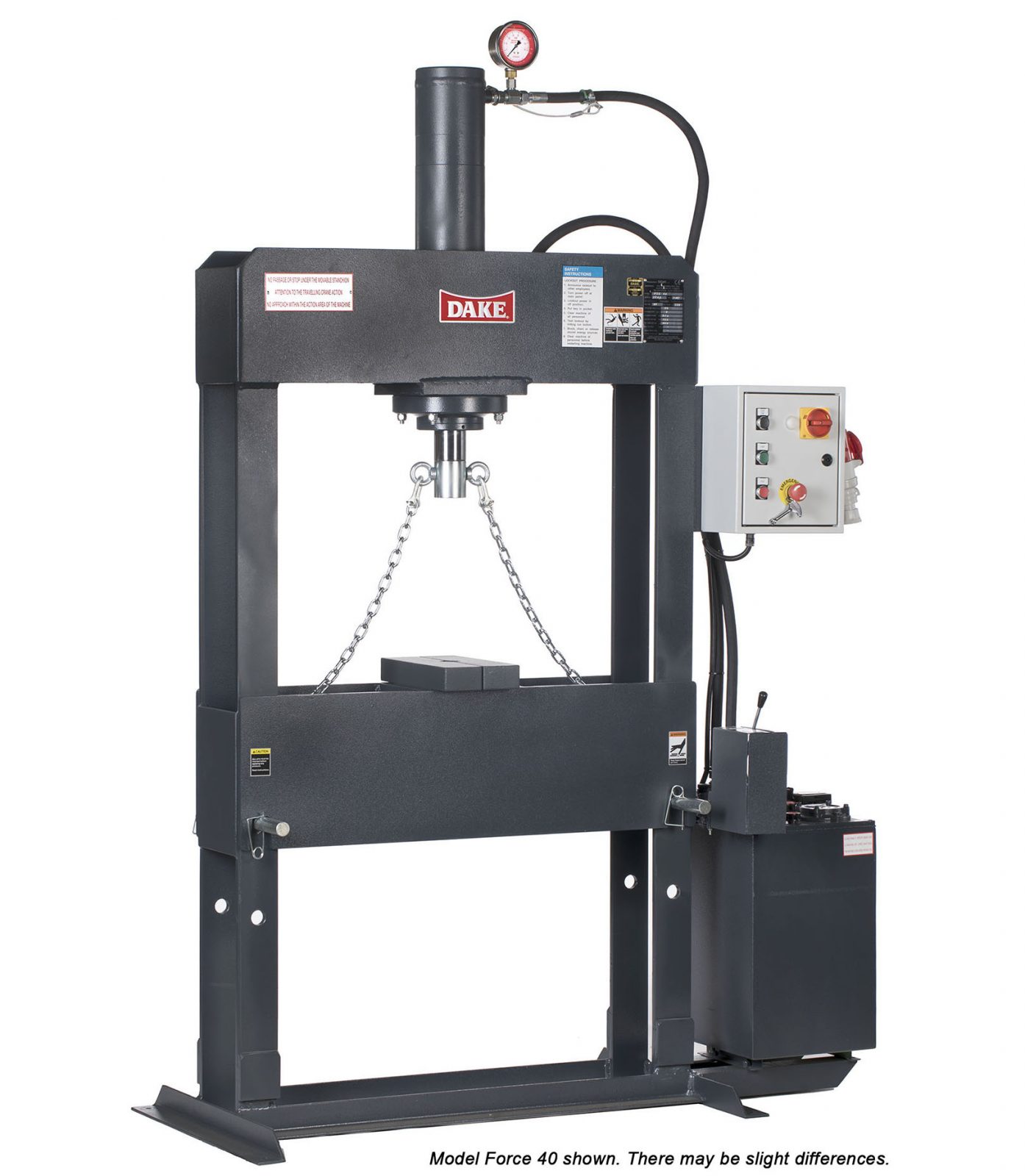

Dake 100 Ton H-Frame Press, Force 100
Inventory # 6476
Model: Force 100
Specifications:
Capacity: 100 Tons
Operating Pressure: 15 – 280 Bars
Ram Diameter: 100mm
Ram Travel: 19″
Bore: 180mm
Ram Rapid Advance Speed: 52 IPM
Ram Pressing Speed: 3 IPM
Hydraulic Pump: 3 Centrifugal Pumps
Controls: Panel Mounted 24-Volt CE Approved
Filter Type: Cartridge Type / External Access
Oil Capacity: 16 Gallons
Width Between Uprights: 41″
Width Between Table Channels: 10″
Ram to Table: 7 7/8″ – 35″
Motor: 3 HP / 220v / 3ph (440v is available for an additional cost.)
Standard Features:
Double acting cylinder design with 5-part oil seals for smooth operation and a tight seal
Welded heavy steel plate frame for greater rigidity
3 HP submerged motor drives 3 centrifugal pumps for quiet, steady oil flow
All electrical controls are low voltage (24v)
Preset and factory-sealed relief valve to prevent exceeding pressure capacity
Ram has lifting eyes that attach a chain to hydraulically move the table
Smooth, responsive control valve
Rapid advance of the ram to the workpiece – speed shifts automatically when contact is made
Standard Equipment:
Frame
2 Steel Table Plates
Lifting Chain
Cylinder
Pressure Gauge
Mechanical Specifications:
Dimensions: 75″ x 33″ x 90″ H
Weight: approx. 2,950 lbs.
FOB Factory – Contact us for Availability
