Description

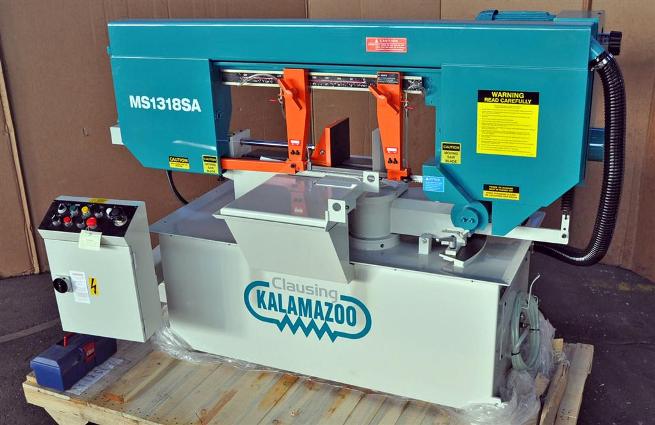

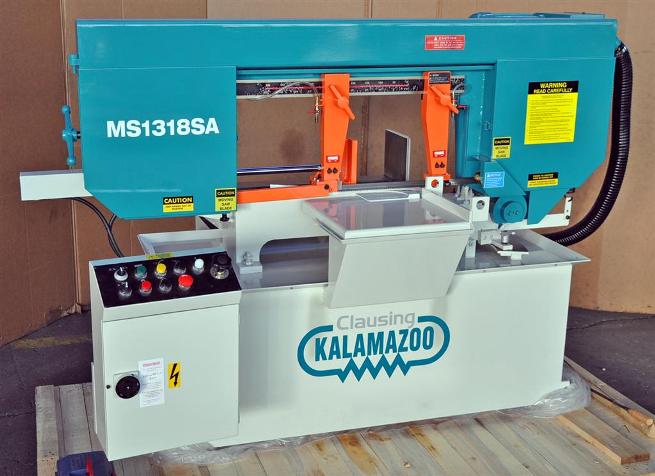

Clausing Kalamazoo 13″ Semi-Automatic Swivel Head Mitering Horizontal Band Saw, MS1318SA
Inventory # 5160
Model: MS1318SA
Specifications:
Cutting Capacity:
Round:
@ 90°: 13″
@ 45°: 11 1/2″
@ 60°: 8.7″
Square:
@ 90°: 10.6″
@ 45°: 10 1/2″
@ 60°: 8.7″
Rectangular:
@ 90°: 18 1/2″ x 10.6″
@ 45°: 10 1/2″ x 10 1/2″
@ 60°: 8.7″ x 8.7″
Blade Speeds: 102 – 377 FPM (Variable)
Blade Size: 1″ x .035″ x 13′ 7″
Bed Height: 33″
Standard Features:
Advanced hydraulic system provides dependable power for powered clamping and raising the saw head at the end of the cut
Full stroke machine vise for tight clamping of any material from operator’s panel
Operator’s panel pivots allowing operator to control the saw from the rear of the machine

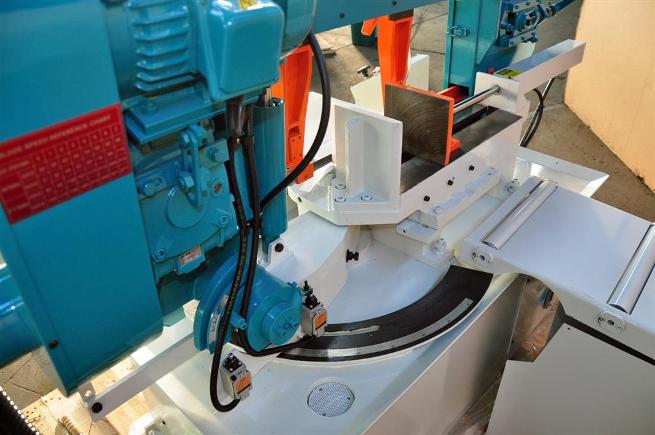

Swivel saw head allows the operator to accurately pivot head for angle cuts from 0°, for a 90° to 60° cut
Carbide blade guides provide excellent stability for the saw blade
Variable blade speed
Chip brush removes chips from the blade extending blade life
Cast iron moveable guide arms provide rigidity and stability for an accurate cut
Standard Equipment:
Discharge Table
Adjustable work stop
Power chip brush removes chips from the blade extending blade life
Integrated coolant system
Flushing hose
Tool box with tools
Operator’s manual
Two year limited warranty
Mechanical Specifications:
Shipping Weight: approx. 1,850 lbs.
Contact us for special pricing and availability
FOB Factory
