Clausing Ibarmia “Series Z” Belt-Drive Round Column Drill, AZ32V
Inventory # 4865
Model: AZ32V
Description:
The AZ32V model industrial drilling machine is equipped with a mechanical clutch and mechanical variable speed drive
Specifications:
Capacity:
Max. Drilling Capacity:
Steel: 1.26″
Cast Iron: 1.38″
Max. Tapping Capacity:
Steel: .87″
Cast Iron: 1.18″
Spindle Taper: 3 M.T.
Quill Diameter: 2.56″
Spindle Travel: 5.91″ (Drilling Depth)
Worktable: 15 3/4″ x 18.9″
Speed Range: 96 – 1,405 RPM (Variable)
Motor: 1.2 HP / 1.8 HP
Standard Features:
Machine base with 2 T-slots, coolant tank and pump
Large worktable with 3 T-slots
Feed crank wheel for manual feed
Depth scale and adjustable depth stop
Automatic tool ejector
Spindle reversing switch
Work light
Built-in low voltage electrical equipment in machine head
Emergency stop
Drill guard with micro-switch
Mechanical Specifications:
Shipping Dimensions: 24″ x 44″ x 91″ H
Shipping Weight: approx. 750 lbs.
Contact us for special pricing and availability
FOB Factory

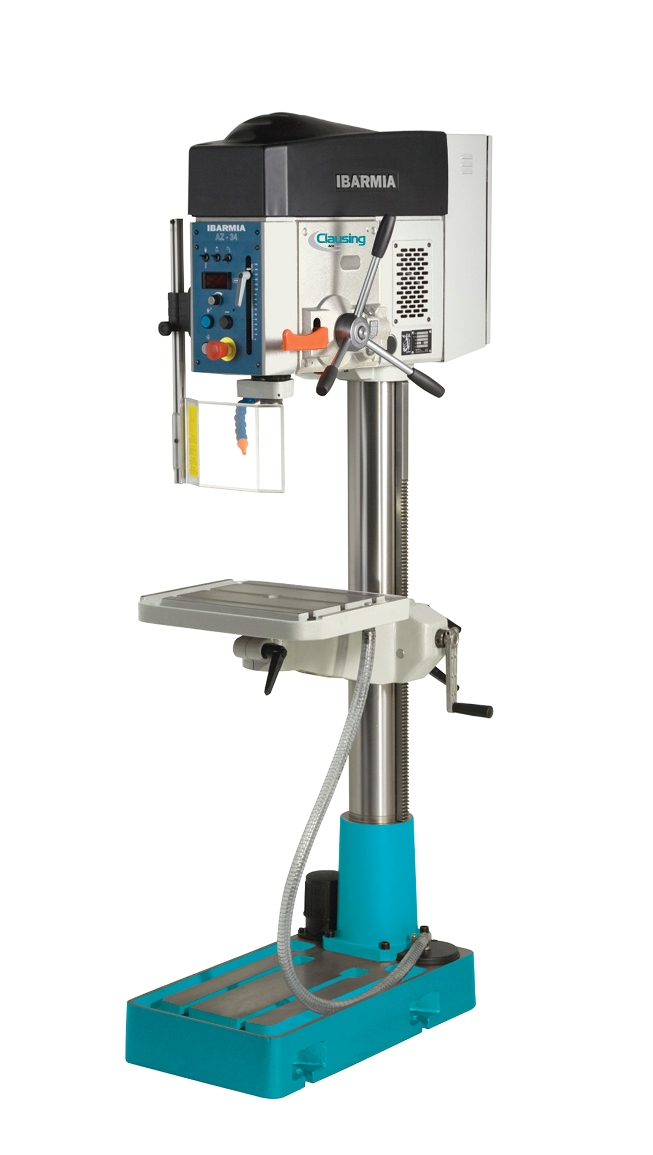

Please Note: The Stock Photo Shows Model SZ40 and Optional Tables
