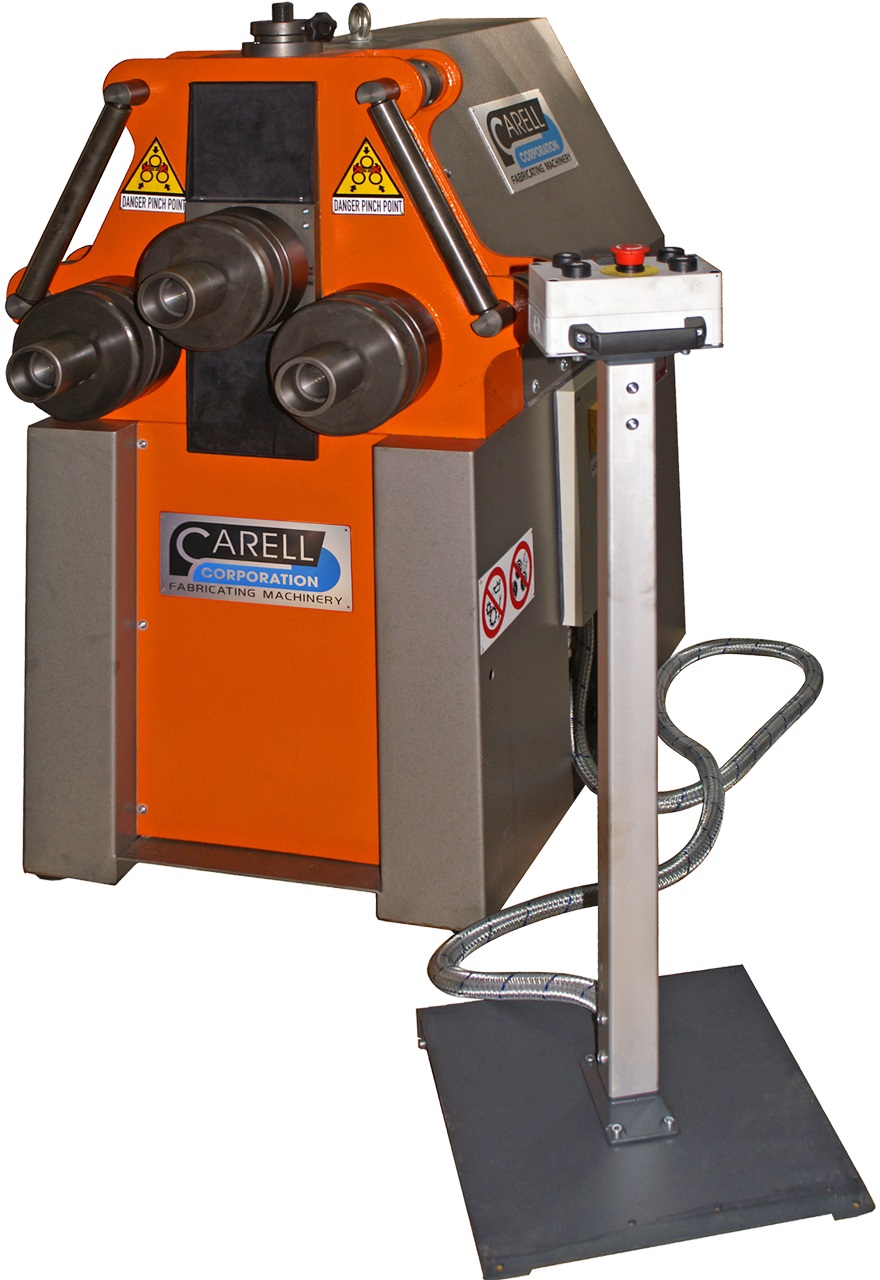

Carell 2 1/2″ x 1/4″ Power 3-Roll Ring and Angle Roll Bender, G50-HV
Inventory # 6689
Model: G50-HV
Description:
The new G50-HV is a heavy duty, 3-roll universal bending machine with a solid steel welded frame, high strength shafts and all 3 rolls driven through a planetary system for high torque delivery and energy efficiency
Carell’s G50-HV rolls have standard and special sections plus tube and pipe using a unique 3-roll drive system with superior performance, superior design and manufacture for an attractive, low initial investment
Carell uses no castings in the main frame unlike some low cost alternative benders
Specifications:
Capacities:
Flat Bar, Hard Way: 3″ x 3/8″, 34″ Min. Diameter
Flat Bar, Hard Way: 1″ x 5/16″, 10″ Diameter
Flat Bar, Easy Way: 4 1/2″ x 3/4″, 32″ Min. Diameter
Square Bar: 1 1/2″, 36″ Min. Diameter
Round Bar: 1 1/2″, 32″ Min. Diameter
Angle, Leg-Out: 2 1/2″ x 1/4″, 30″ Min. Diameter
Angle, Leg-In: 2 1/4″ x 1/4″, 40″ Min. Diameter
Square Tube: 2 3/8″ x 0.120″, 60″ Min. Diameter
Rectangular Tube, Hard Way: 3″ x 2″ x 0.109″, 60″ Min. Diameter
Round Tube: 3″ x 0.095″, 70″ Min. Diameter
Round Pipe (Sch. 40): 2″, 24″ Min. Diameter
Shaft Diameters: 2″ Nominal
Roll Diameters: 6.90″ Nominal
Rolling Speed: 17 1/2″ FPM
Motor: 3.5 HP / 220v / 3ph
Standard Features:
Rugged, rigid, one-piece solid steel weldment frame, normalized and precision machined
Large, high strength steel shafts, heat treated and ground, journaled in dual self-aligning spherical rollers bearings with forced lubrication for optimum performance and efficiency
Top roll adjustment via hydraulic cylinder (H-Version) via push button operation
All 3 rolls driven – top roll with slip clutch with lower rolls on a planetary system provides ultimate traction using modular, hardened, smooth surfaced tooling
Multi-axis lateral guides, adjustable, anti-torsion, for support of materal during rolling
Universal bending rolls, modular telescoping type, hardened and wear resistant
Machine operates in both vertical and horizontal positions, standard
Hand held remote control pendant with push-buttons for maximum operator mobility controls in low voltage, 24v, multi-point safety system
Operating and maintenance tools
Instruction manual
Mechanical Specifications:
Dimensions: 45″ x 32″ x 49″ H
Weight: approx. 1,225 lbs.
Contact us for special pricing and availability
FOB Factory
