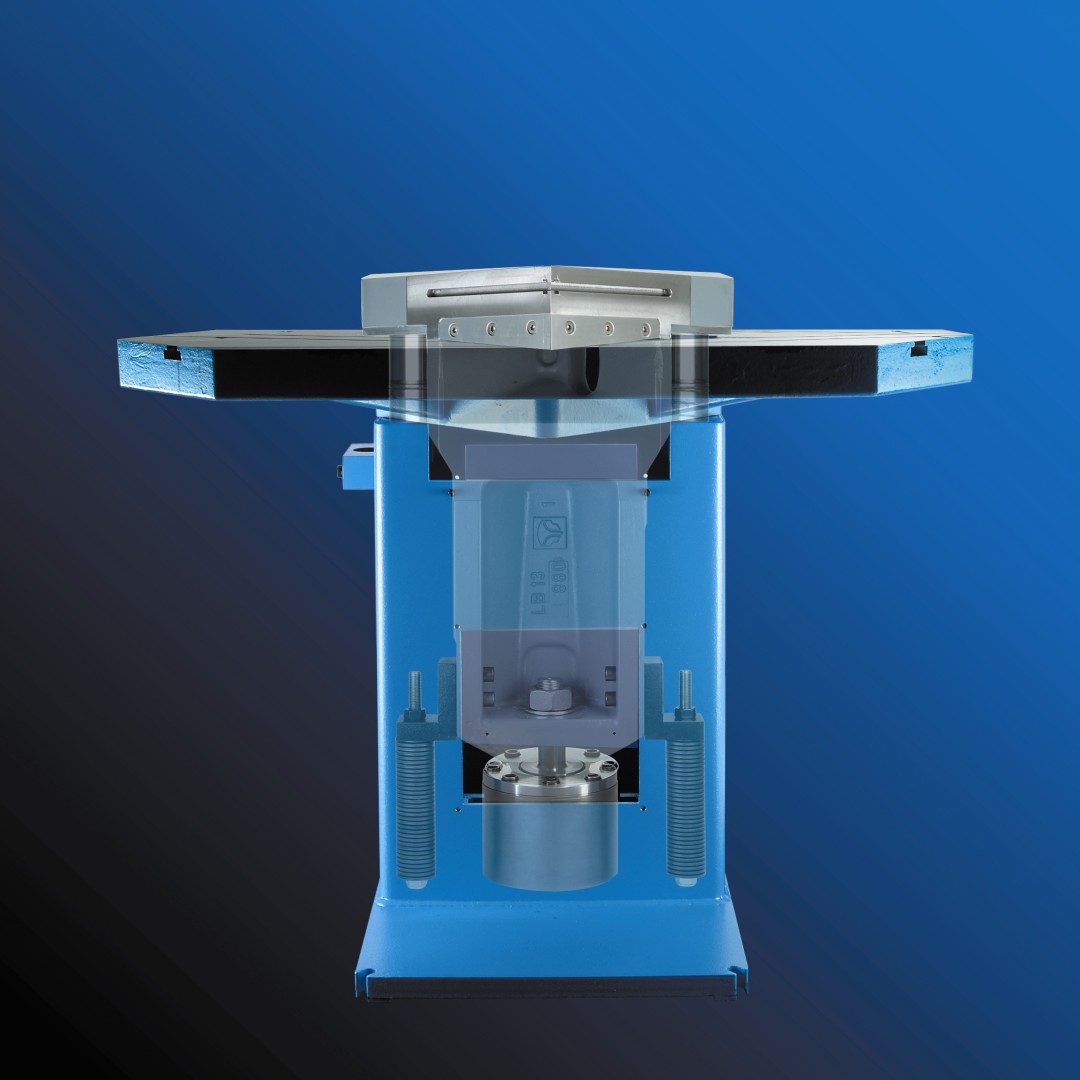

Boschert 5/32″ Hydraulic Variable Angle Notcher, Vari-IV
Inventory # 6191
Model: Vari-IV
Description:
With a 90° fixed angle, the Vari-IV Hydraulic Variable Angle Notcher is a powerful Boschert notcher offer superior performance, clean cuts and high accuracy. Enjoy front-to-back cutting to hold material against stop, two 30° upper blades working directly with two corresponding lower blades, four material hold-downs, and a milled bed surface for no-float or no-stick operation
Boschert Varibale Angle Notchers offer a unique approach to notching that directly couples the upper and lower blades. This system guarantees longer blade life when compared to other systems. Paired with Boshcert’s world-renowned commitment to impeccable German engineering, safety, and user-focused design, our family of variable angle notchers offer something for every notching project on every assembly floor
How the Boschert System Works:
A 30° upper blade is directly connected to two corresponding lower blades. All notches of more than 30° are accomplished automatically with a right and left notch. Pneumatic power rotates the blades after each stroke
Specifications:
Cutting Capacities:
Mild Steel: 5/32″
Stainless Steel: 11 Gauge
Cut Length: 5.9″ x 5.9″
Cut Angle: 30° – 120°
Table Dimensions: 39″ x 26″ H
Motor: 6.5 HP / 220v / 3ph
Standard Features:
Front to back cutting to hold material against stop
Milled bed surface for no float or stick operation
Two 30° upper blades working directly with two corresponding lower blades
Blades are automatically shifted by pneumatic power
Hi-Carbon, Hi-Chrome blades that overlap on the cutting edge to eliminate blade chipping
T-slots and engraved brass scales on the table
Two heavy duty adjustable stops with 12″ sliding bars
Engraved brass scales
Solid-state circuitry with moveable electric foot pedal
Jog, single or continuous mode
Ability to notch into the bend of a 90° angle
Clear view of the blades tips
Scrap bucket
Mechanical Specifications:
Dimensions: 49″ x 39″ x 46″ H
Weight: approx. 1,870 lbs.
Contact us for special pricing and availability
FOB Factory
