Description

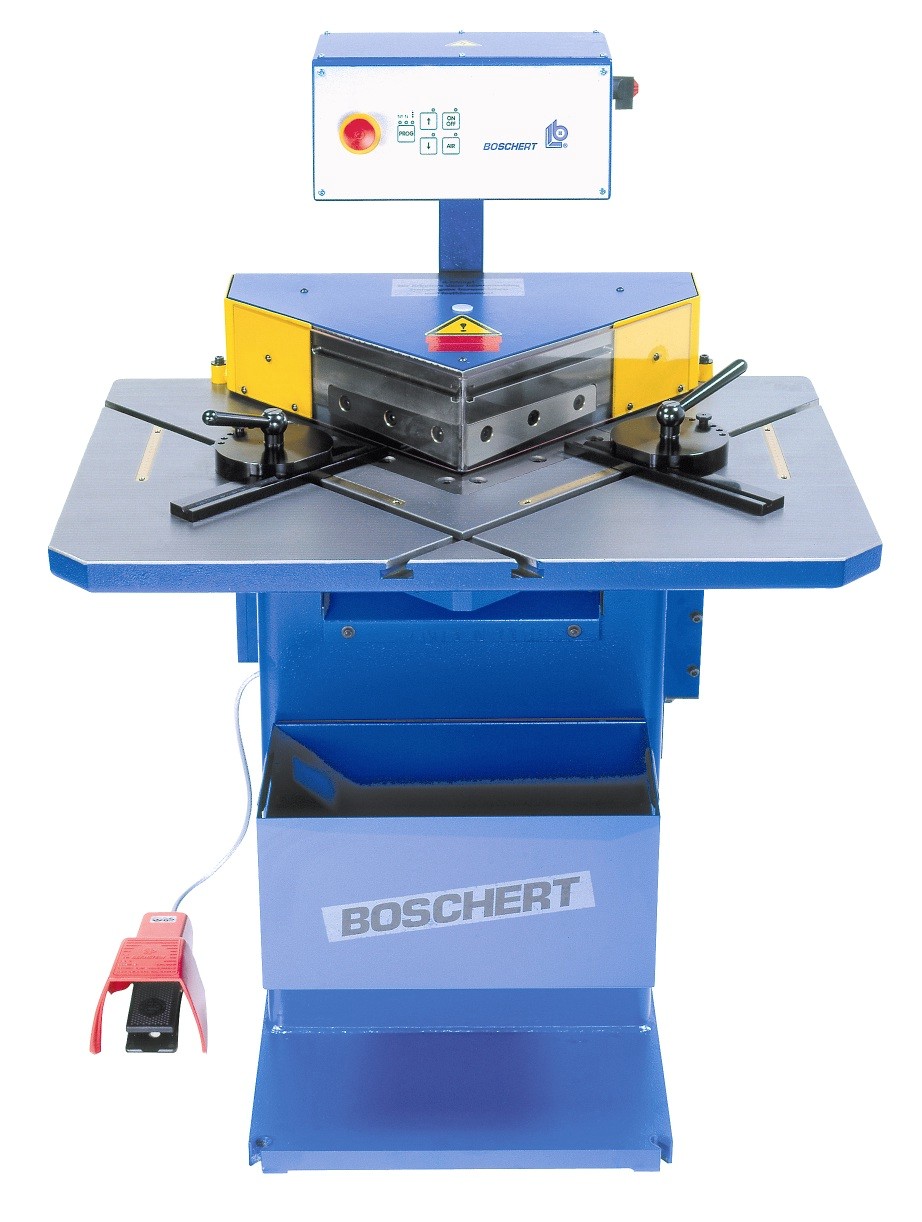

Boschert 1/4″ Hydraulic Power Notcher, The Eagle
Inventory # 6187
Model: The Eagle
Specifications:
Cutting Capacity:
Mild Steel: 1/4″
Stainless Steel: 3/16″
Cut Length: 8 7/8″ x 8 7/8″
Cut Angle: 90°
Table Dimensions: 35″ x 25″
Motor: 6.5 HP / 230v / 3ph
Standard Features:
Front to back cutting to hold material against stop
Milled bed surface for no float or stick operation
35″ wide x 25″ deep table with milled surface so material does not float or stick
Front to back cutting
Hi-carbon, hi-chrome blades
Internal stop for shearing
Two patented 12″ combination horizontal hold down and stop bars
Engraved brass scales
Moveable electric foot pedal
Adjustable stroke, 50 per minute
Solid state circuitry
Jog, single or continuous mode
Scrap bucket
Boschert Patented Quality:

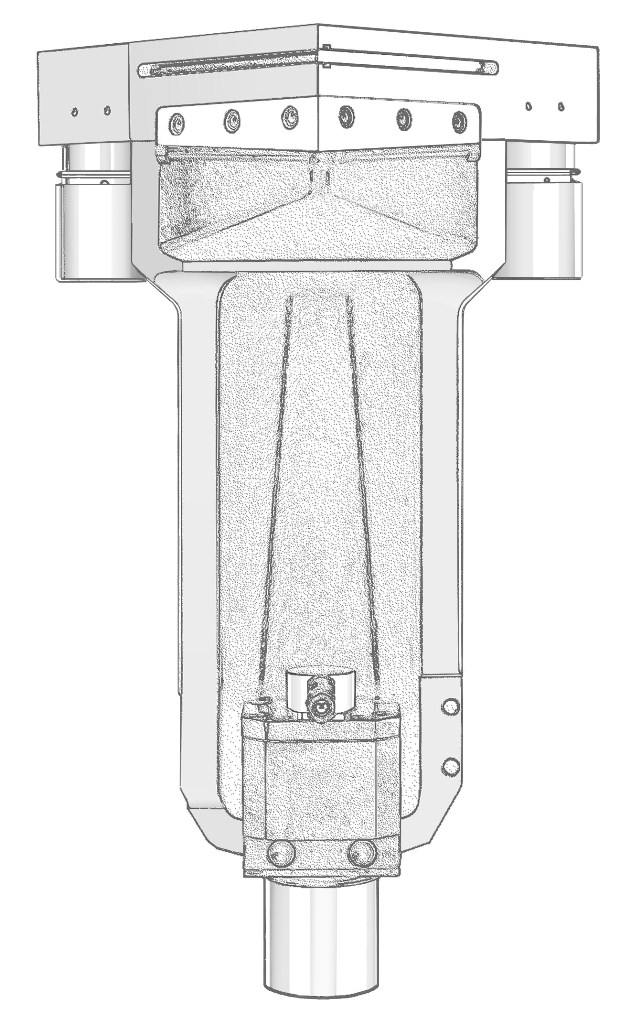

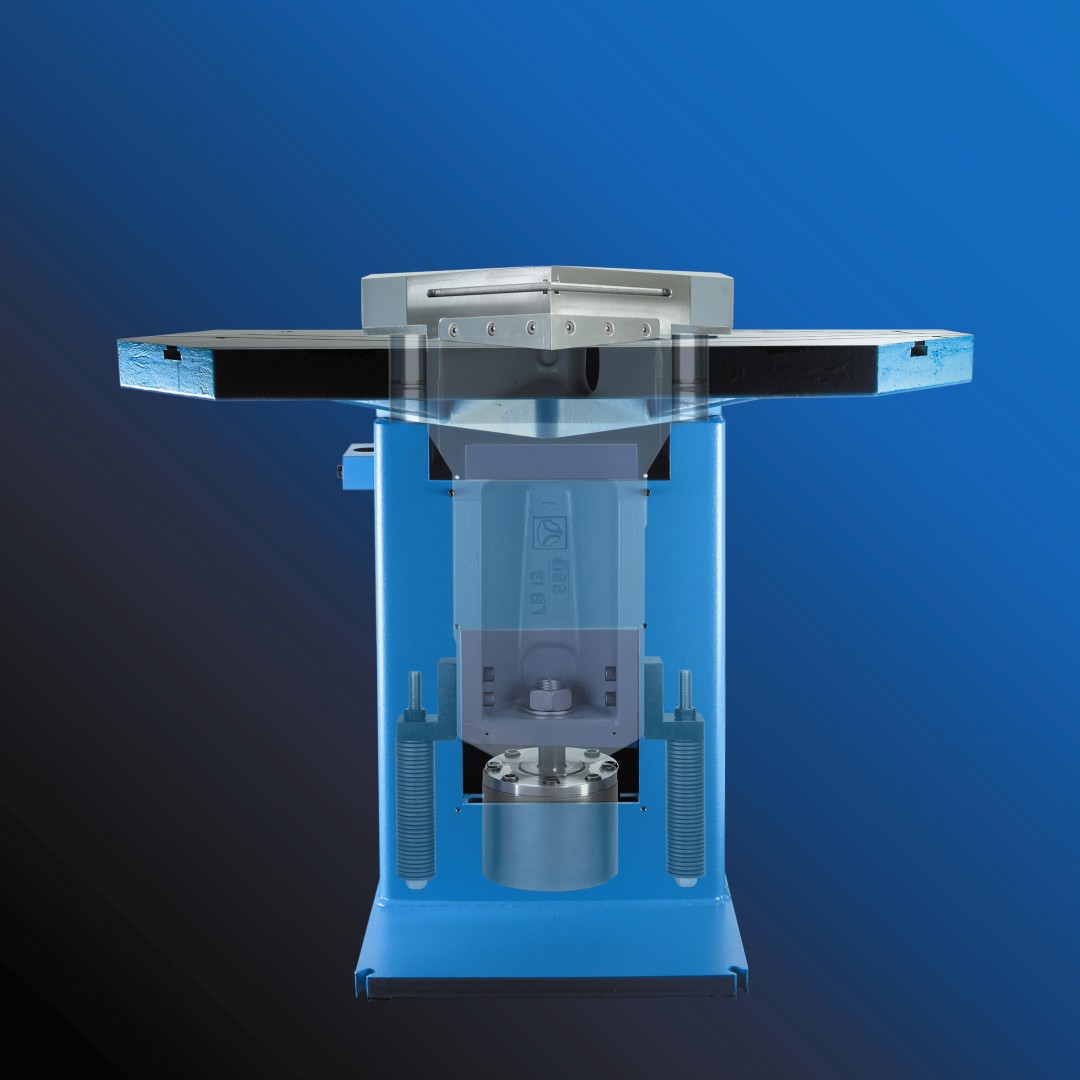

The patented Tri-Gide system gives all Boschert notching machines the greatest accuracy and durability of any notcher made today
“Tri” is for the three large guiding cylinders. Two cylinders are in the top of the machine, close to the blades, the third is in the base and fully integrated with the hydraulic piston
“Gide” is for the precise vertical travel of the ram. Torque from cutting heavy material is distributed evenly to all three cylinders
Exclusive “Tri-Gide” Benefits:
Long blade life due to precise, rigid ram guiding
Burr-free cuts on all gauges (within capacity)
Off-center loading is not a problem
Trouble-free self-lubricating system
Absolute clean cut
5-year warranty on the guiding system
Maintenance free
Other Features of All Boschert Notchers:
Inclined blades cutting from front to back, ideal for cutting to a scribe line, no displacement of the material
Heavy construction using a 1″ thick base plate welded solidly to heavy 5/8″ thick side plates on all sides
Single stroke, continuous and set-up operating modes
Overload protection
Simple handling of the material stops
Patented hold-down material stops
Mechanical Specifications:
Dimensions: 49″ x 36″ x 53″ H
Weight: approx. 1,540 lbs.
Contact us for special pricing and availability
FOB Factory
