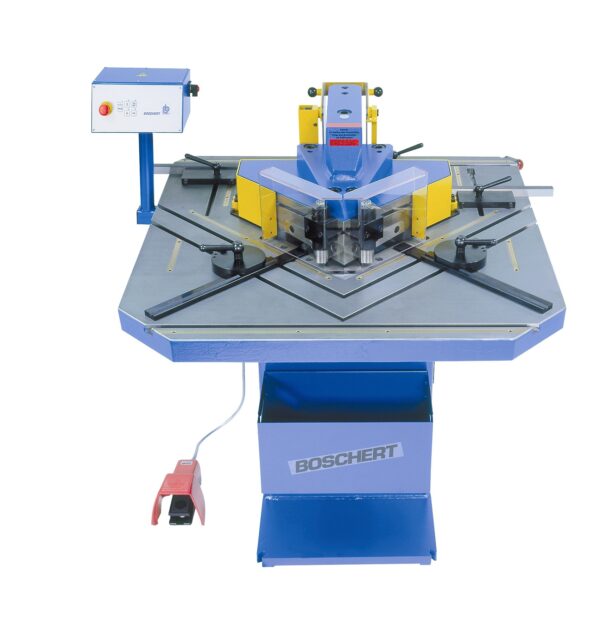

Boschert 1/4″ Silver Eagle Hydraulic Power Notcher with Punch
Inventory # 6189
Model: Silver Eagle with Punch
Specifications:
Cutting Capacity: 1/4″, Mild Steel
Cut Length: 8 7/8″ x 8 7/8″
Cut Angle: 90°
Notching Station:
Capacity:
Mild Steel: 1/4″
Stainless Steel: 5/32″
90° Notch: 8 7/8″ x 8 7/8″
Punch Station:
Capacity:
Mild Steel: 5/32″
Stainless Steel: 1/8″
Max. Punch Size: 1 1/8″
Size of Punching Table: 43″ x 13″
Motor: 6.5 HP / 220v / 3ph
Standard Features:
Super Size Table, 43″ x 31″ Deep
Milled Bed Surface for No Float or Stick Operation
Moveable Electrical Foot Pedal
Front to Back Cutting to Hold Material Against Stop
Adjustable Stroke, 35 – 50 per Minute
Two Material Hold Downs
Two Heavy Duty Stops with 12″ Sliding Bars
Scale and T-Slot Left to Right at Front of Bed
Scale and T-Slot Parallel to the Blades
Scale on Left and Right Side of Table Top
Internal Stop for Shearing
Scrap Bucket
Moveable Foot Pedal
Boschert Patented Quality:
The patented Boshert Tri-Gide System gives all Boschert Notching Machines the greatest accuracy and durability of any notcher made today
Tri is for the three large guiding cylinders. Two cylinders are in the top of the machine, close to the blades, the third is in the base and fully integrated with the hydraulic piston
Guide is for the precise vertical travel of the ram. Torque from cutting heavy material is distributed evenly to all three cylinders
Tri-Gide Eliminates:
Blade clearance adjustment for different material thicknesses
Frequent blade sharpening due to sloppy guiding
Uneven wear and replacement problems with traditional guiding systems
Exclusive Tri-Gide Benefits:
Long blade life dut to precise, rigid ram guiding
Burr-free cuts on all gauges (within capacity)
Off-center loading: 1″ x 6″ notch is no problem
Other Features Include:
Front-to-Back Cutting: Holds material against stops
Milled Table Surface: Keeps material from sticking
Hi-Carbon, Hi-Chrome Blades: Overlap on the cutting tip to elminiate blade chipping
Thousands of Machines installed in North American – Parts for all Machines are Available From the Manufacturer
Mechanical Specifications:
Dimensions: 53″ x 43″ x 50″ H
Weight: approx. 2,420 lbs.
Contact us for special pricing and availability
FOB Factory
