Boschert 3/8″ Golden Eagle Hydraulic Power Notcher
Inventory # 5099
Model: Golden Eagle
Specifications:
Capacity:
Mild Steel: 3/8″
Stainless Steel: 1/4″
Notch @ 90°: 8 7/8″ x 8 7/8″
Table Size: 43″ x 31″
Material Hold Downs: 4
Adjustable Stroke Length: 35 per Minute
Motor: 6.5 HP
Standard Features:
Hi-Carbon, Hi-Chrome Blades That Overlap on the Cutting Edge to Eliminate Blade Chipping
Internal Stop for Shearing
Three Sets of Engraced Brass Scales for Accurate and Easy Set-Up
Front-to-Back Cutting to Hold Material Against Stop
Milled Bed Surface for No Float or Stick Operation
Two Heavy Duty Stops with 19″ Sliding Bars
Engraved Brass Scales
Moveable Electric Foot Pedal
Solid State Circuitry
Jog, Single or Continuous Mode
Scrap Bucket
One Scale and Two T-Slots Parallel to the Blades
Scale on Left and Right Side of Table Top
Scale and T-Slot Left to Right at Front of Table
Boschert Patented Quality:

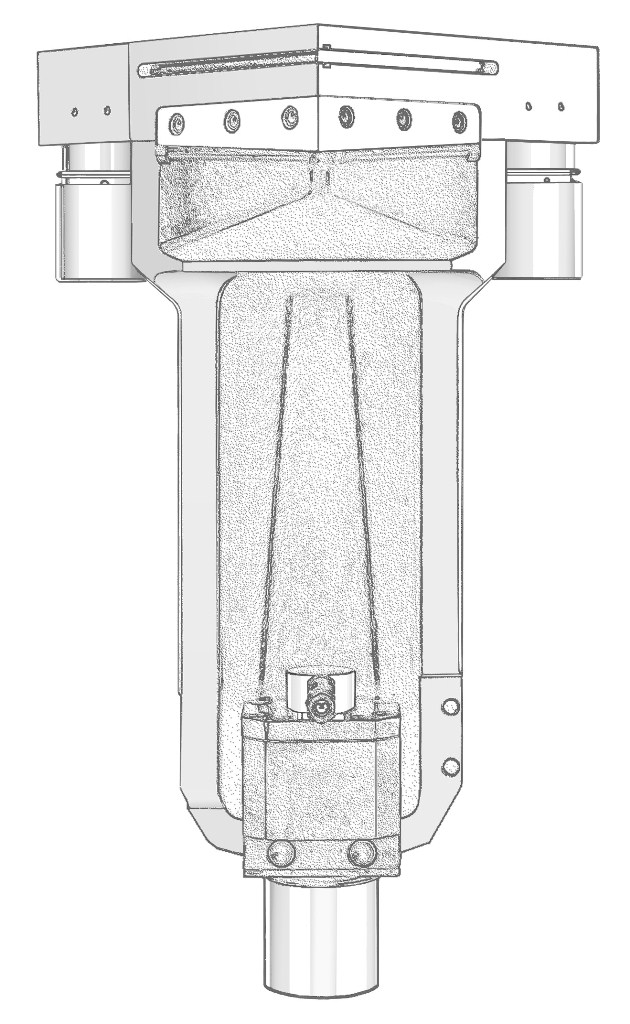

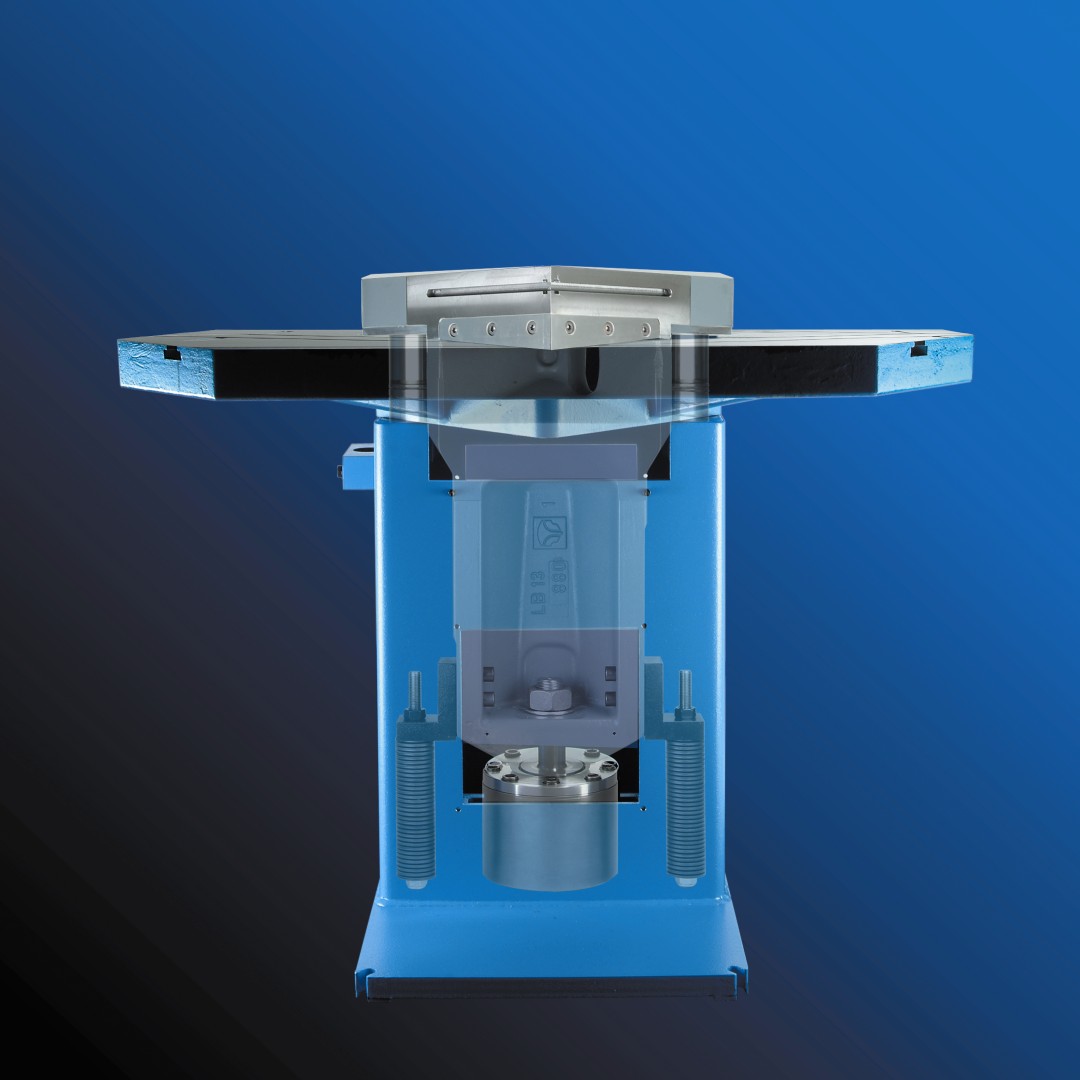

The patented Boschert Tri-Gide System gives all Boschert notching machines the greatest accuracy and durability of any notcher made today.
Tri is for the three large guiding cylinders. Two cylinders are in the top of the machine, close to the blades, the third is in the base and fully integrated with the hydraulic piston
Guide is for the precise vertical travel of the ram. Torque from cutting heavy material is distributed evenly to all three cylinders
Tri-Gide Eliminates:
Blade clearance adjustment for different material thicknesses
Frequenct blade sharpening due to sloppy guiding
Uneven wear and replacement problems with traditional guiding systems
Exlcusive Tri-Gide Benefits:
Long blade life due to precise, rigid ram guiding
Burr-free cuts on all gauges (within capacity)
Off-center loading: 1″ x 6″ notch is no problem
Tri-gide is just part of the overall quality and ingenuity that goes into every Boschert notcher
Other Features Include:
Front-to-Back Cutting: Holds material against stops
Milled Table Surface: Keeps material from sticking
Hi-Carbon, Hi-Chrome Blades: Overlap on the cutting tip to eliminate blade chipping
Thousands of machines installed in North America – Parts for all machines are available from the manufacturer
Contact us for special pricing and availability
FOB Factory

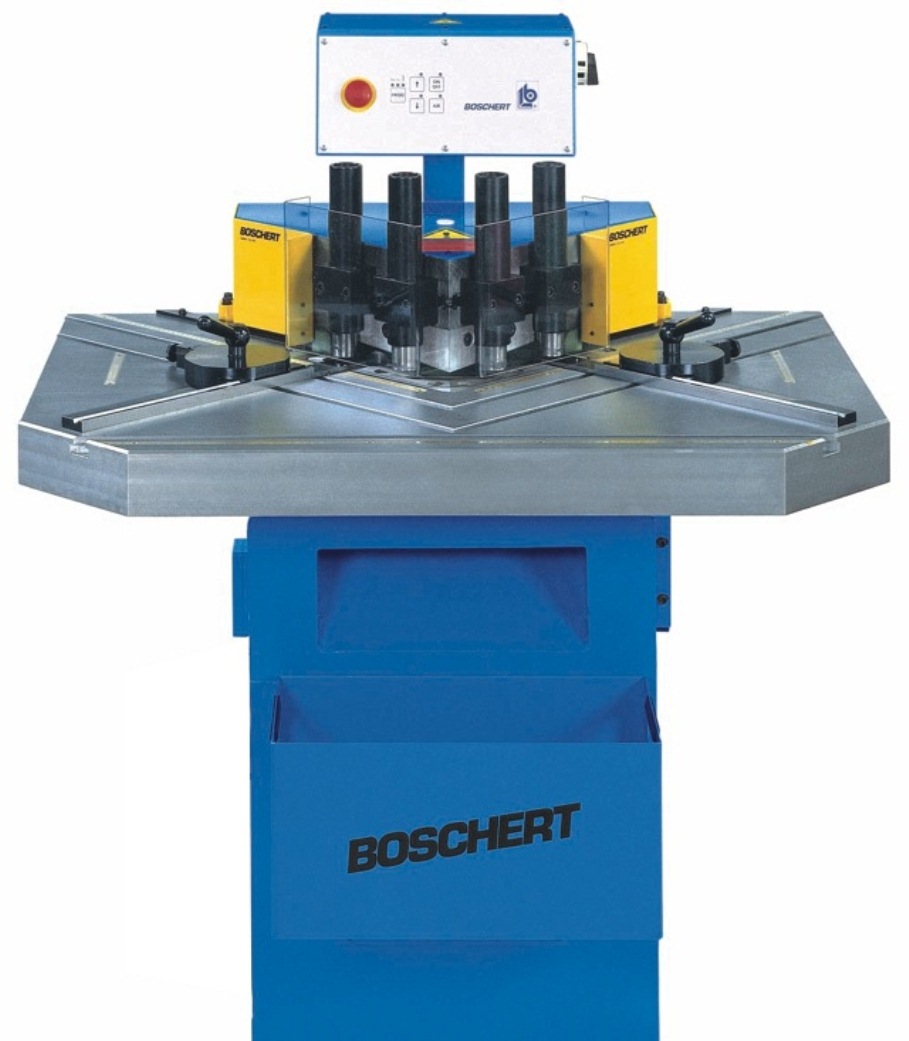

Please Note: Picture Shows Plexi-Guard and Hold-Downs Removed for Better Detail
