Description

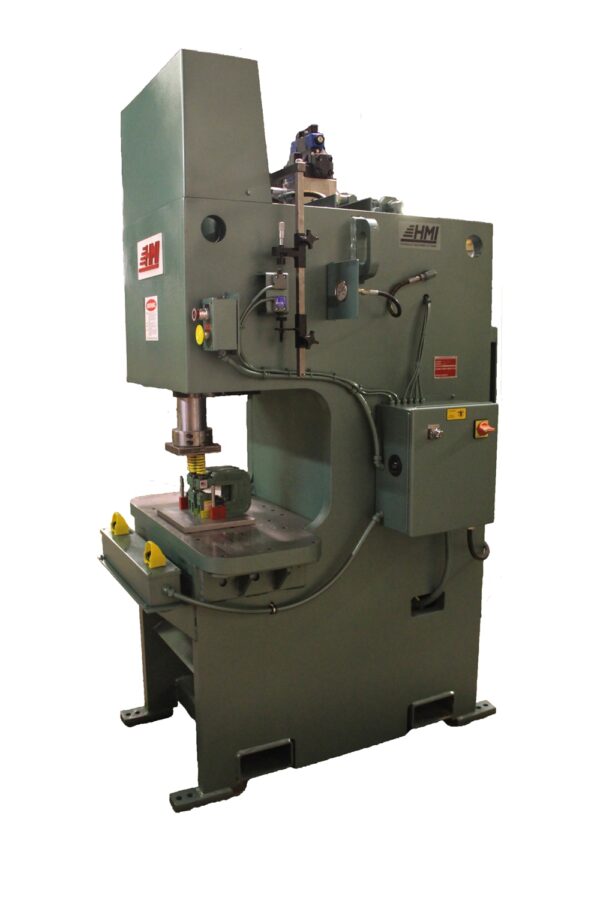

Betenbender HMI 62 Ton Hydraulic C-Frame Press
Inventory # 6903
Model: 6014
Made in USA
Specifications:
Tonnage Capacity: 62 Tons
Length of Stroke: 8″
Throat Depth: 14″
Throat Height: 18″
Press Platen: 42″ x 17″
Floor to Press Platen: 36″
Distance Between Housing: 22 1/2″
Open Height: 18″
Shut Height: 7″
Rod Diameter: 3″
Cylinder Bore Diameter: 8″
1″ Cycles per Minute: 44
Pump Capacity: 11 GPM
Motor: 15 HP / 220v / 3ph
Standard Features:
Large heavy duty design of the press frame to limit the deflection
Press bed bolted on, not welded, to prevent distortion. Can be easily removed for regrinding or adding more tapped holes
Large rectangular tubes used at base of machine to give safe, instant portability. Oil reservoir is located vertically between the side plates to keep the machines foot print as small as possible
Hydraulic system is equipped with a wire mesh strainer on the suction side and a 10 micron filter on the return side to keep the system clean
Pump, motor, valve and reservoir are all easily accessible for maintenance
Large press bed to accommodate a variety of tooling other than just punching
Punch package comes standard with unit
Reservoir filled with oil
Remote foot control, cycle can be stopped and reversed at any point
Lock out – Tag out accommodations
Operators manual
Mechanical Specifications:
Dimensions: 52″ x 42″ x 81.8″ H
Weight: approx. 8,100 lbs.
Contact us for special pricing
FOB Factory – Approximate 8 – 12 Week Lead-Time
