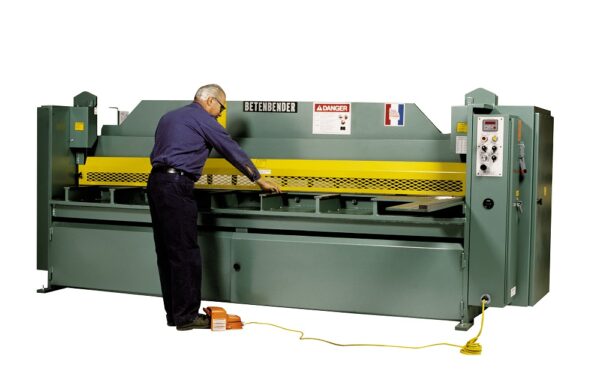

Betenbender 8′ x 1/4″ Hydraulic Shear
Inventory # 4550
Model: 8′ x 1/4″
Made in USA
Description:
It takes a shear that can make a razor-sharp cut time after time. Betenbender overdriven and underdriven hydraulic shears are designed to do exactly that
Betenbender designs simplicity an safety into its shears with an advanced hydraulic system and flexible operation. They’re easy to operate, easy to maintain and able to withstand the rigors of today’s production demands
Specifications:
Capacity: 1/4″ Mild Steel
Knife Length: 100″
Squaring Arm Length: 35″
Rake Angle per Rated Capacity: 1/4″
Strokes per Minute: 17
Number of Hold Down Pins: 15
Hydraulic Pressure: 2,500 PSI
Motor: 15 HP / 208 – 230v, 460v / 3ph
Standard Features:
Controls: Push button and switch controls are at your fingertips. The fully guarded, 2-position 110 volt foot switch lets you interrupt the cutting stroke at any point in its cycle
Easy Material Handling: A sturdy back gauge and rake angle adjustment minimizes twist and distortion. This makes it possible to increase the rake for cutting heavier stock and extend maximum capacity of the machine. A 4 foot squaring arm with a recessed scale makes for fast, easy measurement
Modified High Carbon, High Chrome Reversible Knives: Provide four separate edges for clean cuts and long blade life. Easy blade gap adjustment means precise cuts for a wide variety of materials
Electrical System: Meets NFPA 79 and ANSI B11.4 requirements
Standard Equipment:
Single piece top and bottom, HCHC shock resistant knives with four cutting edges
4′ squaring arm with inlaid scale
36″ power back gauge with LED read out, inch/metric
All hydraulic fluids included
All steel construction
American made hoses and fittings
American made motor and valves
Disconnect switch
Hour meter
Hydraulic self-compensating hold down bar assembly
Light beam gauge (shadow line)
Linemaster foot switch
Manual rapid blade gap adjustment (3/8″, 1/2″, 5/8″, 3/4″)
Manual swing up back gauge
NEMA electronics
Power adjust variable rake
Safety switch for front guard
Mechanical Specifications:
Floor Space: 132″ x 61″
Weight: approx. 9,800 lbs.
Contact us for special pricing
FOB Factory – Approximate 6 – 8 Week Lead-Time
