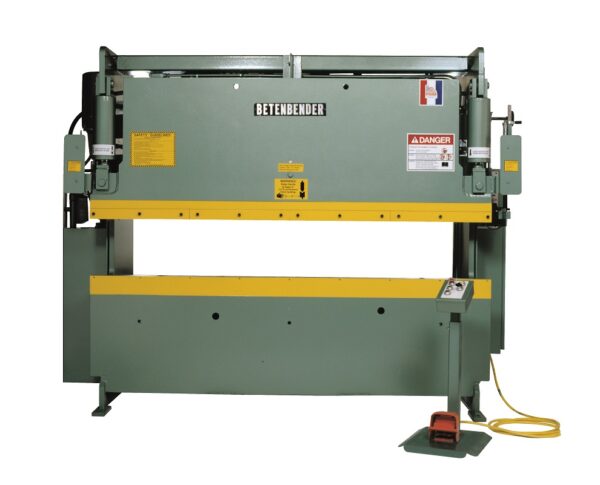

Betenbender 8′ x 120 Ton Hydraulic Press Brake
Inventory # 6541
Model: 8-120
Made in USA
Description:
It’s versatile, accurate, rugged, easy to operate and easy to maintain. That’s the way Betenbender makes its press brakes. Each machine features convenient operation for maximum output and ease of maintenance for maximum productivity
Betenbender goes the extra mile to build a press brake that works hard, works accurately and stays that way for years to come
Specifications:
Max. Tonnage: 120 Tons
Max. Bending Length: 168″
Max. Stroke Length: 8″
Open Height: 14″
Throat Depth: 8″
Distance Between Housing: 78 1/2″
Press (IPM): 40″
Rapid Approach (IPM): 87″
Return to Open (IPM): 115″
Hydraulic Pressure: 2,500 lbs.
Back Gauge: 24″ Manual Clamp Type, Adjustable X, Y, Z
Motor: 20 HP / 230v, 460v / 3ph
Standard Features:
Simple and Flexible Controls: Use either a convenient multi-switch control panel or a 3-position fully guarded foot switch
Accuracy: Every Betenbender machine is thoroughly inspected and tested. Parallelism is maintained between bed and ram, or at a preset angle, by using precise automatic leveling controls. Parallelism is maintained at +/- 0.002″ in low speed. The ram bottom reversal point is controlled by precise limit switches referenced off the bed. This isolates housing deflections which can interfere with accuracy. The side situated hand wheel sets the bottom limit of the ram stroke. Micrometer adjustment on the control end allows for tilting or paralleling of the ram. A bed referenced control monitors the actual distance between ram and bed, assuring repeatability independent of die wear or end plate deflection
Versatility: Betenbender’s press brakes have long, full tonnage stroke; adjustable length and selectable speed combinations; adjustable height for short stroke. Two-speed is standard; three-speed with infinitely adjustable low speed is optional. The option prevents sudden whip up of the work during bending operations
Convenient Settings: Readout reads in increments of 0.001″ allowing recorded settings of closed heights
Control: The ram stops at the point of reference and self-levels on every stroke. Main control cabinet enclosures are mounted on the side frame containing magnetic, non-reversing motor, starter and 110/120 volt control circuit
Ram Level: Is accomplished by two hydraulic systems. One for each cylinder, which keeps them parallel. Self-levels at bottom of each stroke even if the hydraulic system is out of adjustment
Safety and Reliability: The control system operates at 110/120 volt using a minimum of circuitry. The system operates predominantly with American made electronics and American made motors
Durability: All steel ends, rams and beds
Standard Equipment:
Two-Speed Ram
Clamp-Type Manual Back Gauge; Adjustable X, Y, Z
NEMA Electrics
All Hydraulic Fluid Included
American Made Motor
Hour Meter
Bottom Time Delay
Three-Position Foot Pedal
Depth Stop with Digital Read Out
All Steel Construction
Disconnect Switch
Mechanical Specifications:
Dimensions: 183″ x 56 1/2″ x 103″ H
Weight: approx. 26,000 lbs.
FOB Factory – Contact us for Pricing and Availability
