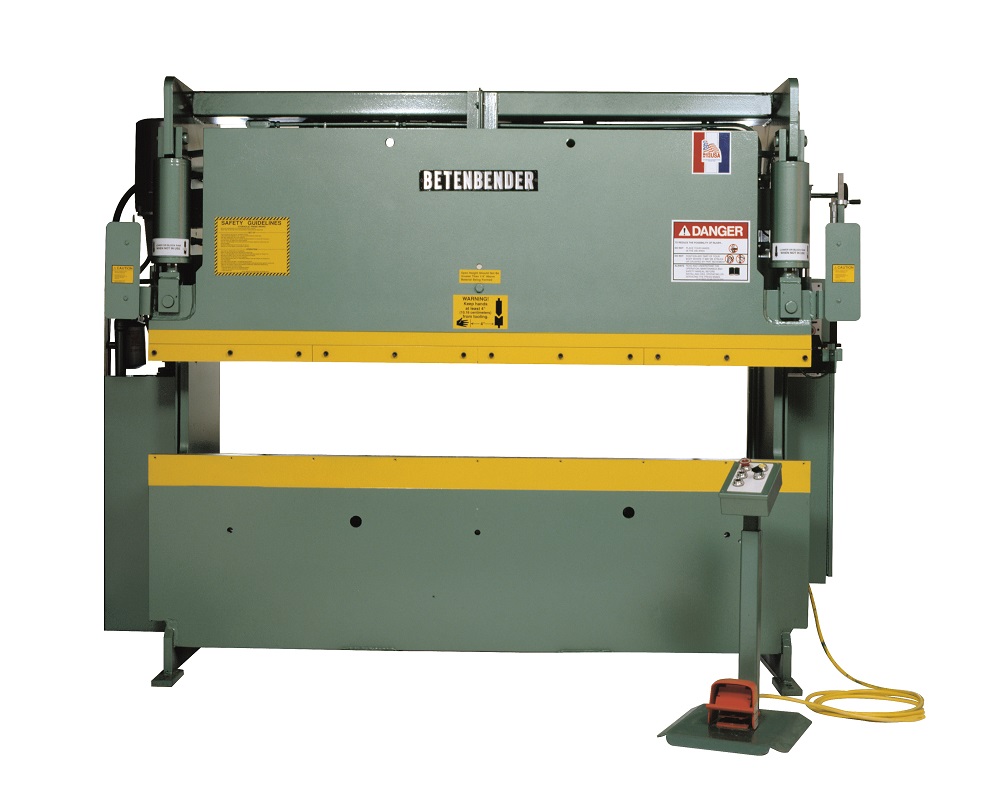

Betenbender 6′ x 50 Ton Hydraulic Press Brake
Inventory # 6538
Model: 6′ x 50 Ton
Made in USA
Description:
It’s versatile, accurate, rugged, easy to operate and easy to maintain. That’s the way Betenbender makes its press brakes. Each machine features convenient operation for maximum output and ease of maintenance for maximum productivity
Betenbender goes the extra mile to build a press brake that works hard, works accurately and stays that way for years to come
Specifications:
Width of Bed: 2″
Width of Upper Machined Ram: 1 3/4″
Throat Depth: 8″
Open Height: 12″
Closed Height: 6″
Height of Bed: 28″
Distance Between Housing: 54 1/2″
Width of Upper Ram: 2″
Width of Upper End Plates: 36″
Press (IPM): 0 – 66″
Rapid Approach (IPM): 66″
Return to Open: 92″
Hydraulic Pressure: 2,750 PSI
Back Gauge: 24″ Manual Clamp Type, Adjustable X, Y, and Z
Motor: 10 HP / 230v, 460v / 3ph
Standard Features:
Simple and Flexible Controls: Use either a convenient multi-switch control panel or a 3-position fully guarded foot switch
Accuracy: Every Betenbender machine is thoroughly inspected and tested. Parallelism is maintained between bed and ram, or at a preset angle, by using precise automatic leveling controls. Parallelism is maintained at +/- 0.002″ in low speed. The ram bottom reversal point is controlled by precise limit switches referenced off the bed. This isolates housing deflections which can interfere with accuracy. The side situated hand wheel sets the bottom limit of the ram stroke. Micrometer adjustment on the control end allows for tilting or paralleling of the ram. A bed referenced control monitors the actual distance between ram and bed, assuring repeatability independent of die wear or end plate deflection
Versatility: Betenbender’s press brakes have long, full tonnage stroke; adjustable length and selectable speed combinations; adjustable height for short stroke. Two-speed is standard; three-speed with infinitely adjustable low speed is optional. The option prevents sudden whip up of the work during bending operations
Convenient Settings: Readout reads in increments of 0.001″ allowing recorded settings of closed heights
Control: The ram stops at the point of reference and self-levels on every stroke. Main control cabinet enclosures are mounted on the side frame containing magnetic, non-reversing motor, starter and 110/120 volt control circuit
Ram Level: Is accomplished by two hydraulic systems. One for each cylinder, which keeps them parallel. Self-levels at bottom of each stroke even if the hydraulic system is out of adjustment
Safety and Reliability: The control system operates at 110/120 volt using a minimum of circuitry. The system operates predominantly with American made electronics and American made motors
Durability: All steel ends, rams and beds
Standard Equipment:
3 Speed Ram
All Hydraulic Fluids Included
All Steel Construction
American Made Hoses and Fittings
American Made Valves and Motors
Bottom Time Delay
Cylinders are Steel, Double Acting Piston Type with Hardened, Ground and Chromed Rods
Depth Stop with Digital Read Out
Disconnect Switch
Front and Back of Bed Machined Smooth for Mounting of Gauges
Hardened Pins with Spherical Bearings for Alignment
Hour Meter
NEMA Electronics
Three Position Foot Switch by Linemaster
Mechanical Specifications:
Dimensions: 87″ x 45″ x 104″ H
Weight: approx. 6,800 lbs.
Contact us for special pricing
FOB Factory – Approximate 6 – 8 Week Lead-Time
