Baileigh 5/8″ Manual Rotary Draw Bender, RDB-10

Shipping: UPS

SKU: RDB-10

Inventory #: 6252

Category:

Condition:

Type:

Brand:

Description

Baileigh 5/8″ Manual Rotary Draw Bender, RDB-10

Inventory # 6252

Model: RDB-10

Description:

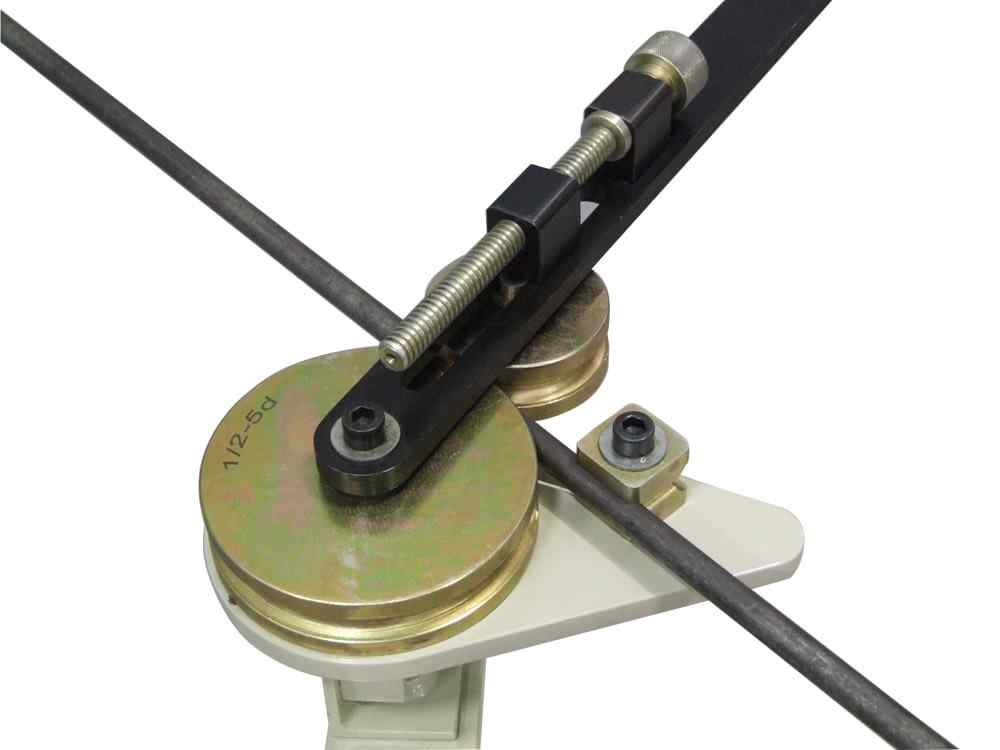

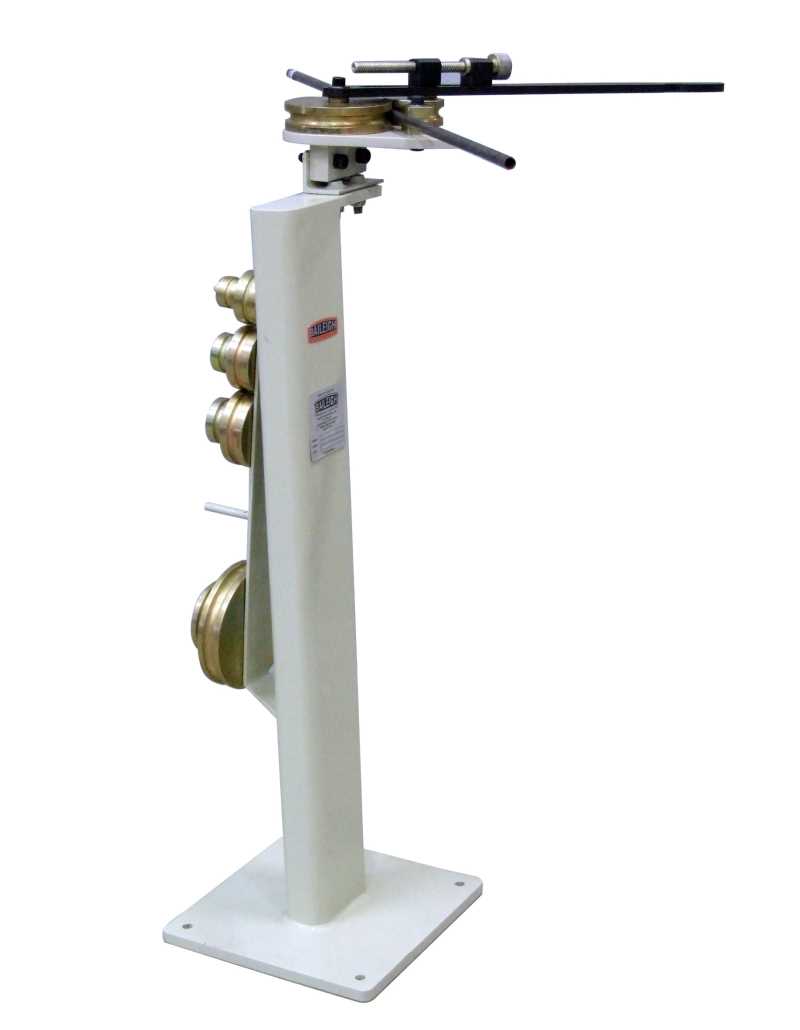

The RDB-10 comes standard with 10 different size combinations from 1/4″ – 5/8″ OD either 3 or 5 times the diameter radiuses. The RDB-10 works great with mild steel, certain coppers and aluminums as well as stainless steel. It comes standard with a heavy pedestal, tooling rack and bending machine

It’s easy to use and can bend tubing up to 180°. Because of the design, it can do serpentine bends with ease at very tight radiuses depending on the OD, material and wall thickness

Specifications:

Capacity: 5/8″

Included Die Sets:

1/4″ x 3D

1/4″ x 5D

5/16″ x 3D

5/16″ x 5D

3/8″ x 3D

3/8″ x 5D

1/2″ x 3D

1/2″ x 5D

5/8″ x 3D

5/8″ x 5D

Standard Features:

Perfect for bending small diameter tubing

Heavy duty stand

Tooling rack included

Mechanical Specifications:

Shipping Dimensions: 43″ x 17″ x 20″ H

Shipping Weight: 135 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 150 lbs
