Baileigh 2″ Hydraulic Roll Bender, R-H45

Shipping: Add to Cart to Calculate

SKU: R-H45

Inventory #: 5173

Category:

Condition:

Type:

Brand:

Description

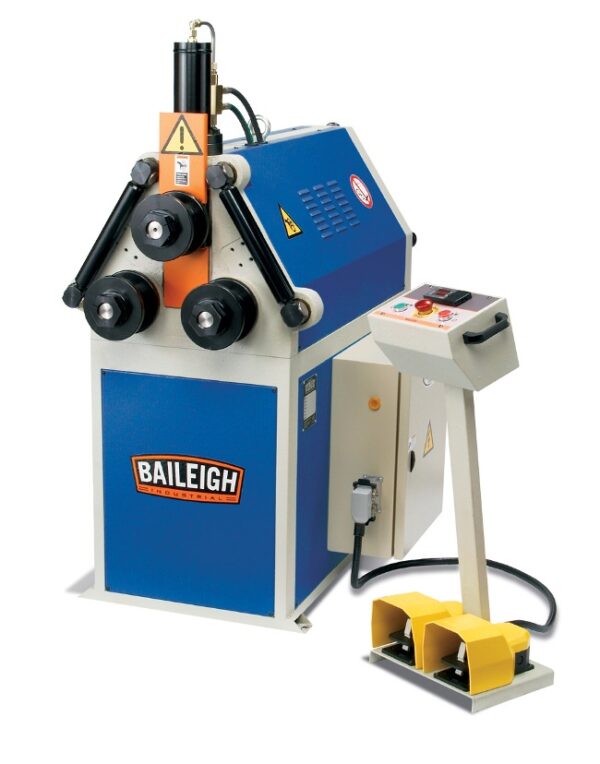

Baileigh 2″ Hydraulic Roll Bender, R-H45

Inventory # 5173

Model: R-H45

Description:

Baileigh Industrial’s R-H45 tube roller is perfect for bending large radii. It is also perfect for any fabrication shop and can also be brought to most job sites

This tube roller comes standard with a heavy duty steel plate frame that is tied to a large industrial motor and transmission that turns all three rolls. The frame work is fully welded and allows the roll bender to be tipped backward into the horizontal position when rolling large diameters

Specifications:

Capacities:

Angle Iron: 2″, 36″ Min. Diameter

Pipe: 2″ (Sch. 40), 48″ Min. Diameter

Round Tube: 2 3/4″, 60″ Min. Diameter

Square Tube: 2″, 51″ Min. Diameter

Solid Round: 1 1/2″, 28″ Min. Diameter

Flat Bar Easy Way: 5″, 28″ Min. Diameter

Flat Bar Hard Way: 3 1/4″, 32″ Min. Diameter

Shaft Diameter: 1.772″

Shaft Center Distance (Lower Rolls): 9.562″

Lower Roll Diameter: 5.827″

Pinch: Single

Motor: 220v / 1ph

Standard Features:

Three Driven Rolls

Programmable Digital Readout for Top Roll

Rolls are Hardened

Roll Shafts are a Special Steel Material that is Hardened and Ground

Standard Rolls

Guide Rolls

Horizontal and Vertical Working Position

Foot Pedal

Users Manual

Mechanical Specifications:

Shipping Dimensions: 60″ x 44″ x 68″ H

Shipping Weight: 1,188 lbs.

Contact us for special pricing and availability

FOB Factory

Additional information

Weight 1188 lbs
