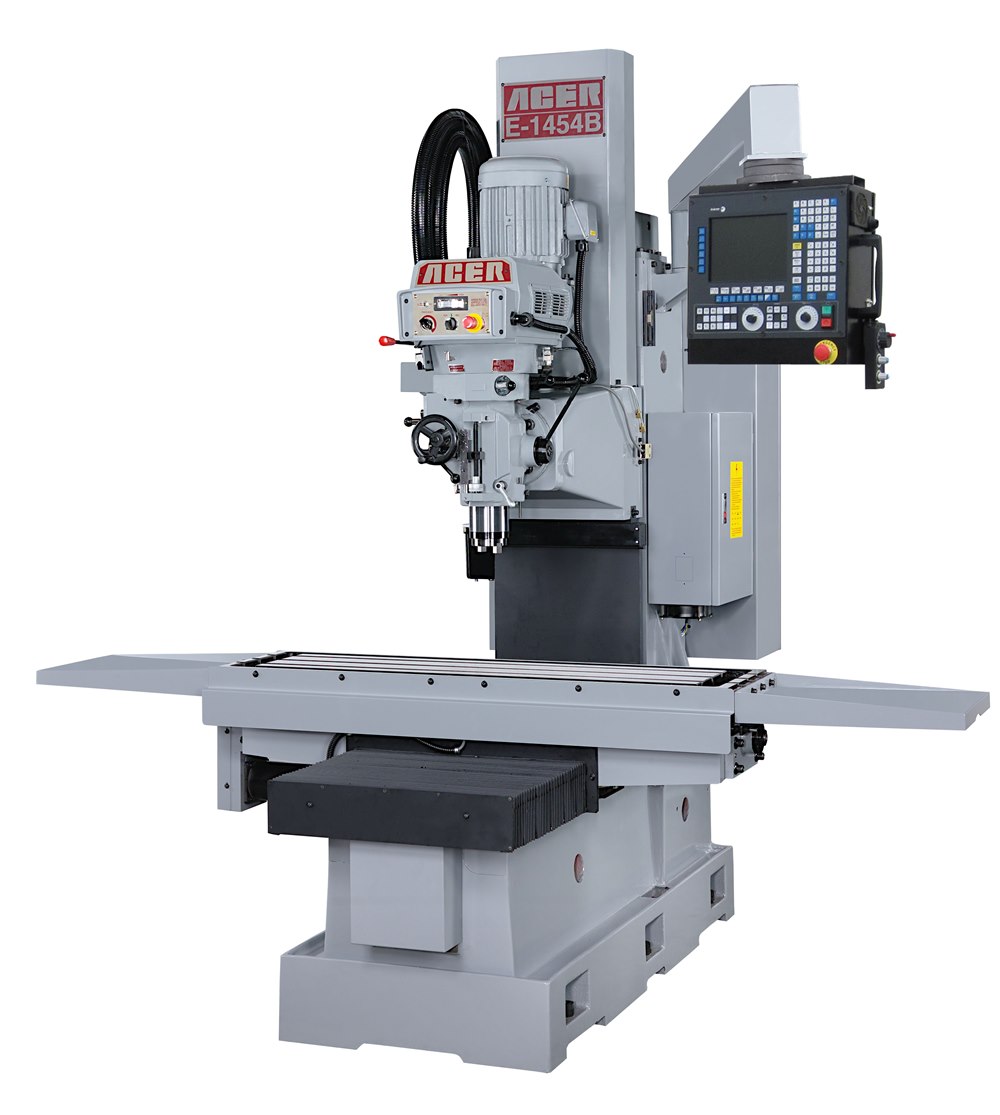

Acer 1454E 14″ x 54″ CNC Bed Mill w/ Fagor 8055i CNC Control
Inventory # 7162
Model: 1454E
Made in Taiwan
Specifications:
Table:
Table Size: 14″ x 54″
T-Slots: 5/8″ (3)
Table Load: 1,960 lbs.
Travel:
X-Axis Max. / Rapid Feed: 40″, 200 ipm
Y-Axis Max. / Rapid Feed: 22.44″, 200 ipm
Z-Axis Max. / Rapid Feed: 26.77″, 200 ipm
Max. Spindle Nose to Table: 1″ ~ 27.75″
Spindle Center to Column Face: 21.3″
Spindle:
Quill Diameter: 4″
Quill Travel: 5″
Spindle Taper: CAT #40 (Optional: BT #40, NMTB #40)
Spindle Speed (High / Low): 500 – 4,500 rpm
Spindle Rotation Angle: +90° left / right
Maximum Working Capacity (Mild Steel):
Drilling Capacity: 1″
Milling Capacity: 5 in³/min
Boring Capacity: 4.75″
Tapping Capacity: 1″
Motor:
Spindle: 5 hp
X-Axis Servo Motor: DC 31.3 in-lb (optional: AC 1.5 kW)
Y-Axis Servo Motor: DC 31.3 in-lb (optional: AC 1.5 kW)
Z-Axis Servo Motor: DC 31.3 in-lb (optional: AC 2.2 kW)
Coolant Pump (Optional): 1/8 hp
Lubrication Pump: 80 Watts
Power:
Control: 110 v / 1 ph / 20 amps (Optional: 230 v / 3 ph / 50 amps.)
Machine: 6.35 hp (4.7 kVa)
Air Requirement:
Pneumatic Pressure: 85.34 psi min.
Standard Features:
Users still retain the manual quill operation
Extra oilers to lubricate the hi/low components and to oil the quill
Grease fitting for lubricating bull gear
Equipment Included:
C5 Ball Screws and Double-End Thrust Bearing Set
1 1/4” Diameter Ball Screws with Casted Mounting Brackets
HRC 52° Hardened and Ground Table
Turcite-B Coated Slideway and Gibs
Class 7 Precision Spindle Bearings
Precision Spindle w/ ABEC-7 Bearings
Meehanite Casting
Automotive Paint
Hardened & Ground X, Y, & Z, Table Top and Bottom to HRC 62°
Precision 4” Diameter Hard Chromed Quill at HRC 62°
Tool box with tools
Auto Lubrication system
Leveling pads with screws
Touch up paint
Operation and part manual
Mechanical Specifications:
Footprint of Machine: 100″ L x 74″ W x 110″ H
Max. Machine Operation Space: 135.8″ L x 109.1″ W x 104.7″ H
Overall Weight: 5,500 lbs.
FOB Factory
