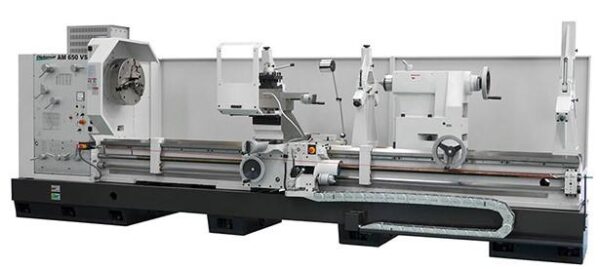

Nardini 39″ x 78″ ‘American’ Series Universal Flat Bed Lathe, AM 500 A
Inventory # 9446
Model: AM 500 A
Specifications:
Swing Over Bed: 39.4″
Swing Over Cross Slide: 30.3″
Swing Over Carriage: 38.2″
Swing in Gap: 50.8″
Gap Length: 9.3″
Distance Between Centers: 78.7″
Upper Slide Travel: 7.9″
Cross Slide Travel: 23.6″
Bed Width: 20.1″
Spindle Nose: AI-15 ASA
Spindle Bore: 6.1″
Nose Taper: 01:20
Nose Taper Sleeve: MT 6
Spindle Speed: 6 – 500 RPM (24 Steps)
Number of Selectable Feed Rates: 64 Cross / 64 Longitudinal
Longitudinal Feed: 0.002 – 0.020 IPR
Cross Feed: 0.004 – 0.041 IPR
Max. Longitudinal Rapid Feed: 0.020 IPM
Max. Cross Rapid Feed: 0.041 IPM
Metric Threading: 64 Selectable, 0.6 – 8.0 mm
Inch Threading: 64 Selectable, 3 – 44 TPI
Diametral Pitch Threading: 64 Selectable, 6 – 88
Module Threading: 64 Selectable, 0.375 – 5
Tailstock Quill Diameter: 6.7″
Tailstock Quill Stroke: 13″
Tailstock Quill Taper: MT 6
Feed Motor: 2 HP
Headstock Motor: 29.5 HP / 220v / 3ph
Standard Features:
Extreme rigid FEM-designed structure
Certified MEEHANITE castings, all stress relieved
Oversized and hardened precision ground longitudinal and crossways with long preloading gibs
Oversized lead screws
Automatic lubrication of ways and lead screws
All ways with wipers to avoid chip, coolant, and powder-like chip contamination
High precision, very heavy-duty spindle with a seal for interior protection against moisture and particles
Heavy-duty selectable speed transmission
Automatic longitudinal and cross feeds with infeed gearbox for lathing and threading is all selectable and all mechanisms run on an oil bath
Threading selections are metric, TPI, module, and diametral pitch
All gears are hardened and gear flanks are super precision REISHAUER ground
Manual reinforced structure tailstock with manual positioning
Complete electric system 220VAC-60Hz
Electric cabinet IP54 protection with safety interlocking
High-efficiency electric motors
Complete Standard Safety System:
Chuck Guard with Safety Switch
Lead Screw Protection Guards
Gearbox Door with Safety Switch
Electromagnetic Brake with Manual Command
Mechanical Specifications:
Floor Space: 185.8″ x 42 1/2″
Weight: approx. 17,160 lbs.
FOB Factory
Optional Equipment:
Taper Attachment
DRO and Linear Glass Scales
Steady Rests
3-Jaw Chucks
4-Jaw Chucks
Live Center
Quick-Change Tool Post
Extra Tool Holder
Headstock with Frequency Inverter
